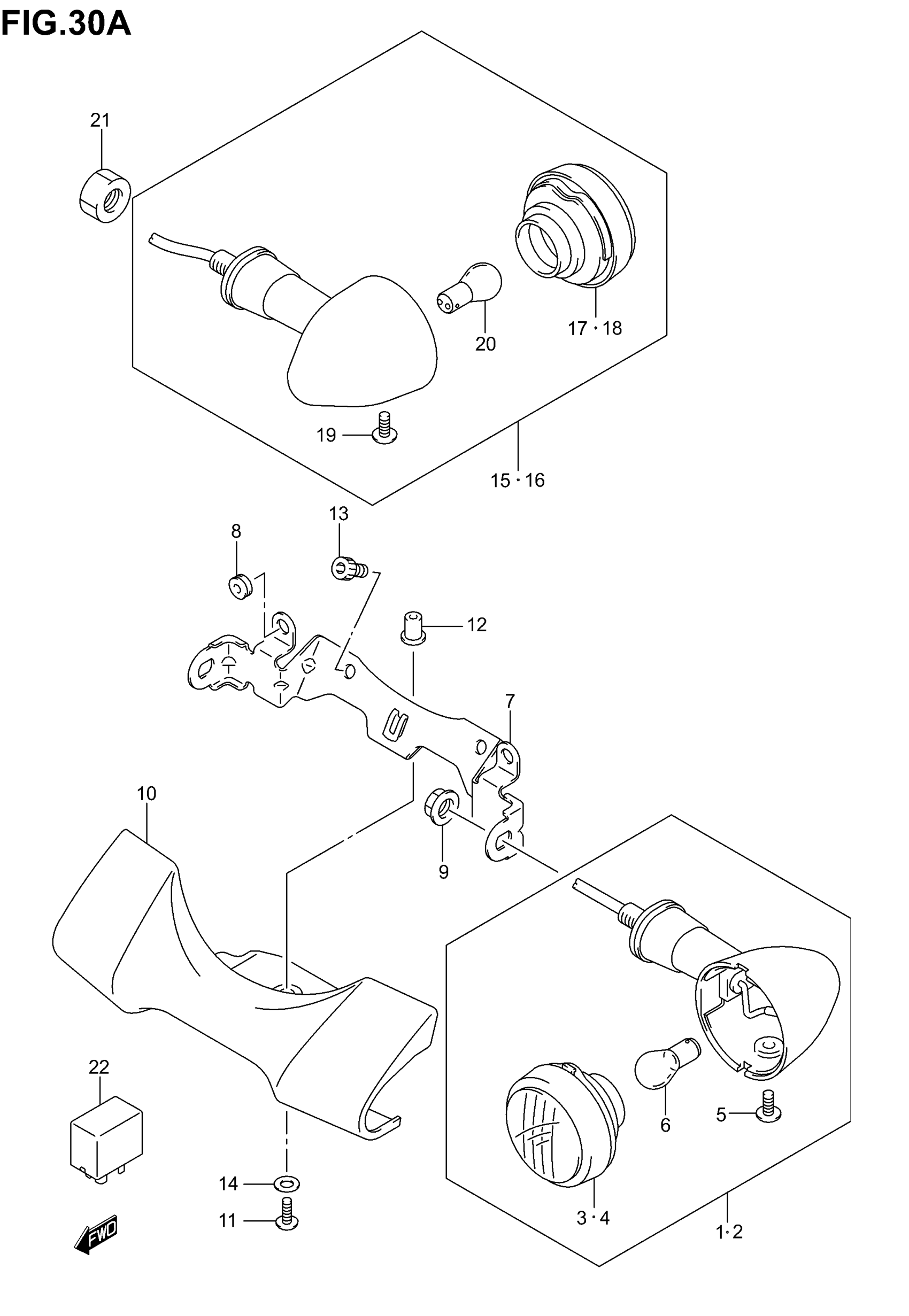

Suzuki VL800 (2005) TURNSIGNAL FRONT & REAR LAMP (MODEL K4/K5) Diagram

#

Description
Price

1

FRONT TURNSIGNAL ASSY, RH This part replaces 35601-41FB0.

35601-41FB1

$152.27

2

FRONT TURNSIGNAL ASSY, LH | Includes Item(s) 3 - 6 This part replaces 35602-41FB0.

35602-41FB1

$108.50

3

LENS | FOR RH

35610-38AA0

$28.79

4

LENS | FOR LH

35630-38AA0

$29.21

5

SCREW

35623-38AA0

$4.67

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

7

BRACKET This part replaces 35616-41FA0.

35616-41FA3

$68.43

8

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

9

NUT This part replaces 08316-20103.

08316-2010B

$4.38

10

COVER, FRONT TURNSIGNAL | MODEL K4 This part replaces 35641-41F00.

35641-41F02

$101.80

10

COVER, FRONT TURNSIGNAL | MODEL K5 This part replaces 35641-41F01.

35641-41F02

$101.80

11

SCREW (5X8)

09139-05042

$2.70

12

NUT

09159-05019

$6.44

13

BOLT This part replaces 07130-08123.

07130-0812A

$4.03

14

WASHER

09160-05048

$1.76

15

LAMP ASSY,RR TU | MODEL K4 This part replaces 35603-38AC0.

35603-38AC2

$86.12

15

LAMP ASSY,RR TU | MODEL K5 This part replaces 35603-38AC1.

35603-38AC2

$86.12

16

LAMP ASSY,RR TU | MODEL K4 This part replaces 35604-38AC0.

35604-38AC2

$74.69

16

LAMP ASSY,RR TU | MODEL K5; Includes Item(s) 17 - 20 This part replaces 35604-38AC1.

35604-38AC2

$74.69

17

LENS | FOR RH

35630-38AE1

$29.21

18

LENS | FOR LH

35610-38AE1

$28.79

19

SCREW

35623-38AA0

$4.67

20

BULB (12V21W)

09471-12045

$2.95

21

NUT This part replaces 08316-10103.

08316-1010B

$2.65

22

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
