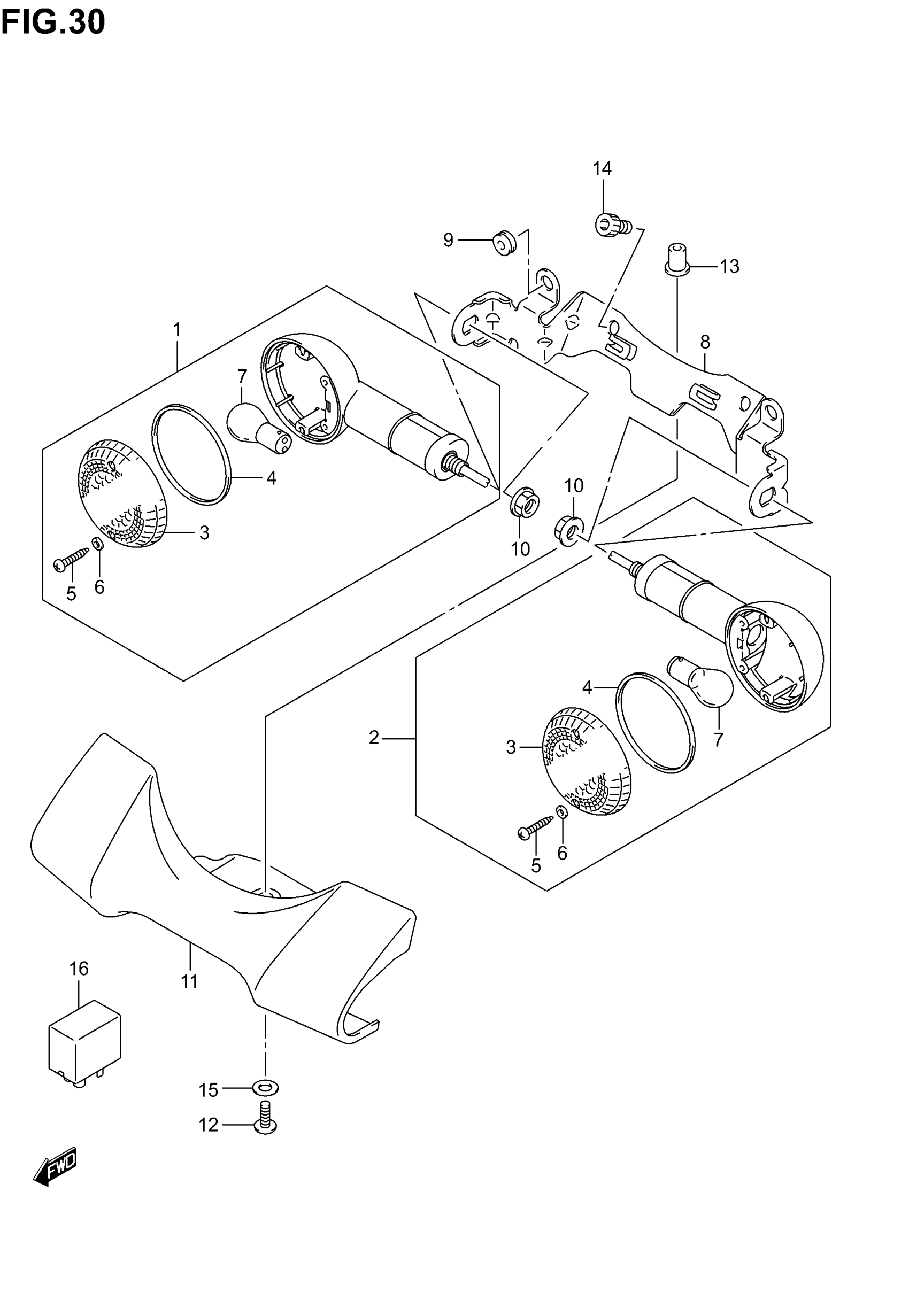

Suzuki VL800 (2005) TURNSIGNAL FRONT LAMP (MODEL K1/K2/K3) Diagram

FRONT TURNSIGNAL ASSY, RH

35601-41F30

Unavailable

FRONT TURNSIGNAL ASSY, LH | Includes Item(s) 3 - 7

35602-41F30

$138.87

LENS

35612-38A30

$20.22

GASKET

35613-38A00

$10.99

SCREW This part replaces 03211-04253.

03211-0425B

$2.95

PACKING

35627-43010

$2.29

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

BRACKET

35616-41F00

$96.87

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

NUT This part replaces 08316-20103.

08316-2010B

$4.38

COVER, FRONT TURNSIGNAL This part replaces 35641-41F00.

35641-41F02

$101.80

SCREW (5X8)

09139-05042

$2.70

NUT

09159-05019

$6.44

BOLT This part replaces 07130-08123.

07130-0812A

$4.03

WASHER

09160-05048

$1.76

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
