2005 Suzuki VL800 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2005 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

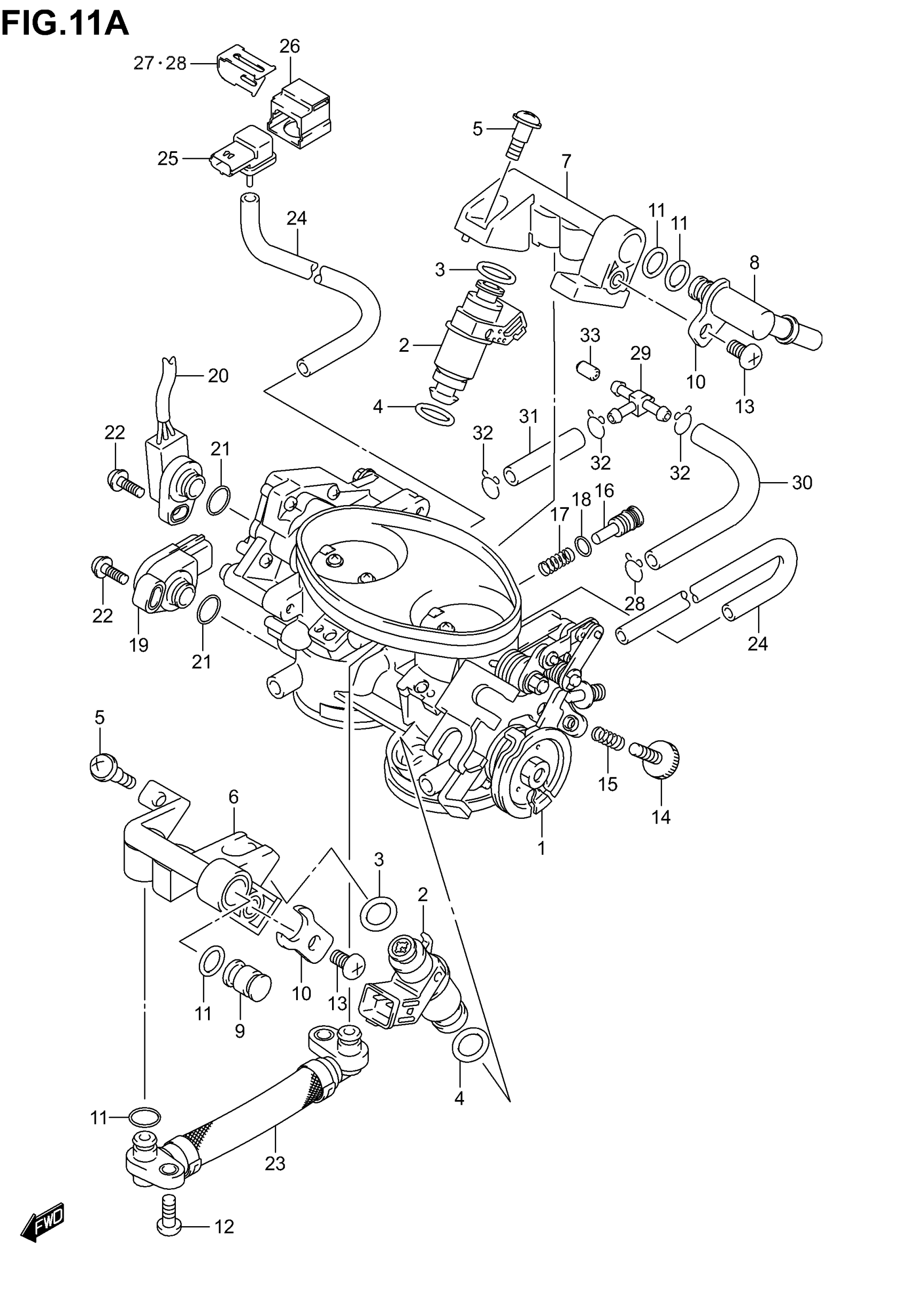

2005 Suzuki VL800 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY K | E3,E28 This part replaces 13401-41F00.

13401-41F01

1
Out of stock

1

BODY, THROTTLE | E33

13401-41F10

1
Out of stock

2

INJECTOR ASSY

15710-14G00

2
Out of stock

3

O-RING

15721-10G00

2
Out of stock

4

O RING

15722-10G00

2
Out of stock

5

SCREW, THROTTLE COVER

13602-34F50

4
Out of stock

6

PIPE, FUEL

13471-10F00

1
Out of stock

7

PIPE, FUEL

13471-10F10

1
Out of stock

8

JOINT

13473-41F00

1
Out of stock

9

PLUG

13476-10F00

1
Out of stock

10

PLATE

13428-10F00

2
Out of stock

11

.O-RING

15721-24F00

5
Out of stock

12

SCREW

13602-10F00

2
Out of stock

13

SCREW

13602-10F10

2
Out of stock

14

SCREW, IDLE

13605-10F00

1
Out of stock

15

SPRING

13268-35F00

1
Out of stock

16

ADJUST SCREW

13279-10G00

2
Out of stock

17

SPRING

13271-10G00

2
Out of stock

18

O RING

13295-10G00

2
Out of stock

19

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F20.

13580-40F22

1
Out of stock

20

.SENSOR ASSY,THROTTLESUB This part replaces 13580-41F00.

13580-41F02

1
Out of stock

21

O RING

13575-40F00

2
Out of stock

22

SCREW

13605-40F00

2
Out of stock

23

PIPE ASSY, FUEL

13680-10F00

1
Out of stock

24

HOSE

13683-41FA0

2
Out of stock

25

SENSOR, PRESSURE

18591-42F00

2
Out of stock

26

HOLDER

18595-42F20

2
Out of stock

27

BRACKET, BOOST SENSOR FRONT

18598-41F00

1
Out of stock

28

BRACKET, BOOST SENSOR REAR

18599-41F00

1
Out of stock

29

JOINT | E33

13471-24F30

1
Out of stock

30

HOSE | E33

13683-41FB0

1
Out of stock

31

HOSE | E33

13683-41FC0

1
Out of stock

32

CLIP | E33

13693-24F00

4
Out of stock

33

PIPE, PURGE HOSE | E33

13685-10F00

1
Out of stock
