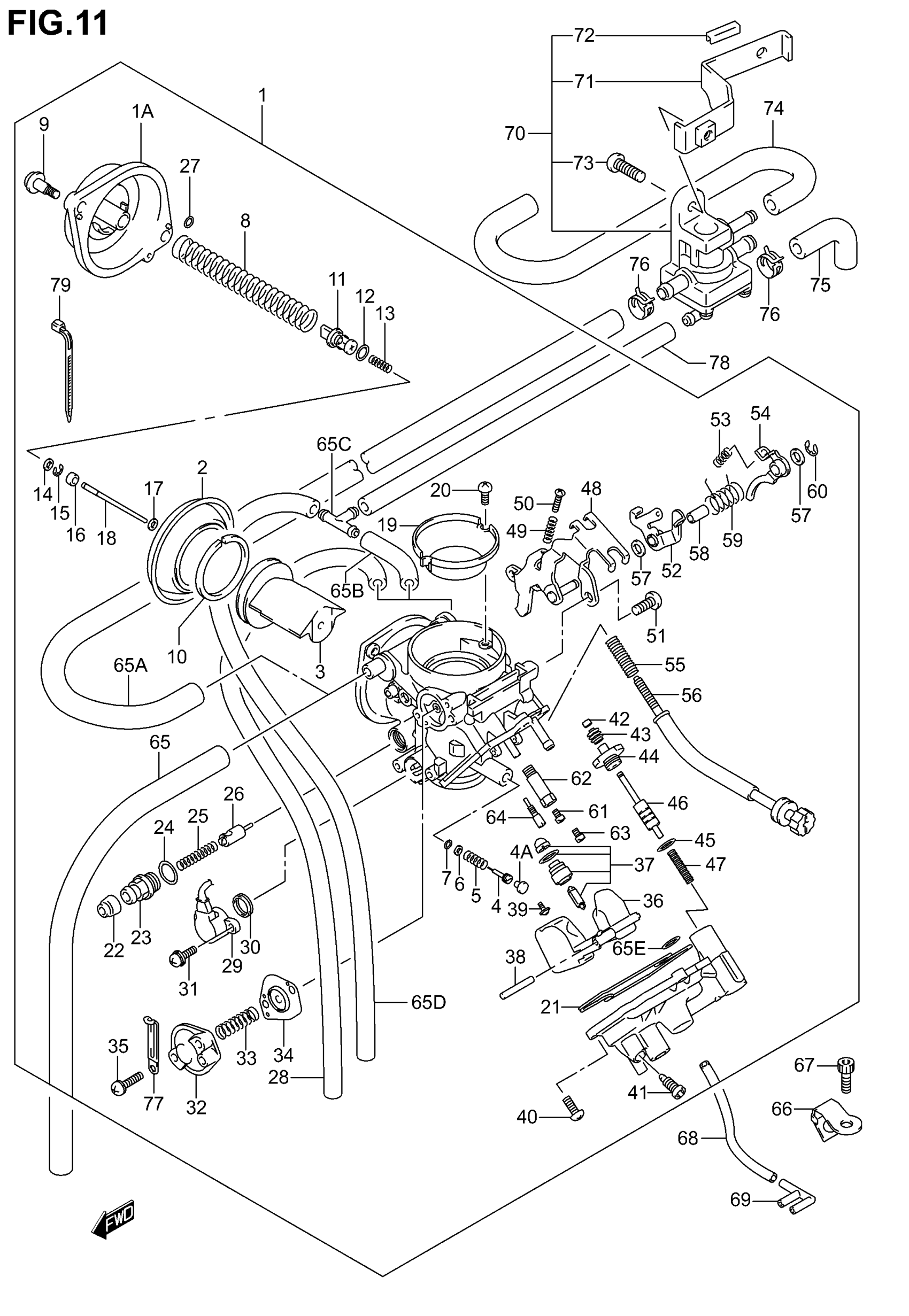

Suzuki VL800 (2005) CARBURETOR (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

CARBURETOR ASSY | E3,E28 This part replaces 13200-41F20.

13200-41F21

$835.55

1

CARBURETOR ASSY | E33; Includes Item(s) 1A - 65E

13200-41F30

Unavailable

1A

DIAPHRAGM COVER

13502-41F00

Unavailable

2

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$27.09

3

PISTON VALVE

13501-41F00

$101.37

4

ADJUSTER

13279-20B00

$14.18

4A

PLUG

13281-05A00

$4.21

5

SPRING,THROTTLE SCREW

13268-48700

$3.97

6

WASHER

13291-29900

$1.87

7

O-RING This part replaces 13295-29900.

13295-29901

$3.97

8

SPRING

13573-10F00

$12.68

9

SCREW

13247-33E00

$2.80

10

RING

13504-14E00

$4.81

11

HOLDER

13418-33E00

$5.20

12

O RING

09280-05004

$2.17

13

SPRING

13481-13F00

$4.92

14

WASHER

13382-19E00

$3.35

15

E RING

13394-17E60

$1.89

16

RING

13387-13F00

$7.48

17

WASHER

13291-29FA0

$2.80

18

JET, NEEDLE (5E23-1)

13383-41F20

Unavailable

19

FUNNEL

13667-41F00

$49.27

20

SCREW

02112-04107

$1.55

21

O RING

13258-33E00

$9.36

22

.CAP This part replaces 13681-04010.

13681-04011

$4.51

23

GUIDE, HOLDER

13418-41F00

$6.83

24

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.89

25

SPRING

13417-37200

$3.35

26

PLUNGER ASSY

13411-41F01

$33.92

27

O RING

13295-33010

$4.09

28

HOSE This part replaces 13683-41F00.

13683-41F01

Unavailable

29

SENSOR ASSY This part replaces 13580-19F00.

13580-19F01

$118.38

30

PACKING

13557-47070

$3.38

31

SCREW

13602-19B50

$3.14

32

COVER ASSY

13502-10F00

$44.80

33

SPRING

13481-41F20

$3.55

34

.DIAPHRAGM ASSY This part replaces 13480-10F00.

13480-10F01

$15.37

35

SCREW

13601-04148

$2.80

36

FLOAT ASSY

13250-33E00

$33.34

37

VALVE ASSY,NEED This part replaces 13370-20F00.

13370-20F01

$71.03

38

PIN

13254-92910

$3.17

39

SCREW

13602-05A10

$3.26

40

SCREW

02112-05127

$1.97

41

SCREW

13247-41F00

$10.30

42

CAP

13495-09400

$2.80

43

CAP

13495-18E00

$9.79

44

GUIDE HOLDER

13496-20E20

$11.50

45

O RING

09280-08014

$1.92

46

PLUNGER

13493-89J00

$19.22

47

SPRING

13417-21F00

$7.00

48

BRACKET ASSY

13621-41F00

Unavailable

49

SPRING

13434-30650

$3.38

50

SCREW This part replaces 02112-03123.

02112-0312B

Unavailable

51

SCREW

02112-05107

$1.43

52

LEVER ASSY

13490-41F00

Unavailable

53

SPRING

13268-96111

$3.79

54

LEVER ASSY

13490-41F10

Unavailable

55

SPRING

13271-33C00

$7.98

56

ADJUST SCREW ASSY

13267-41F00

Unavailable

57

PACKING

13386-09410

Unavailable

58

RING

13387-26F00

Unavailable

59

SPRING

13494-41F00

Unavailable

60

E RING

13617-44500

Unavailable

61

JET,POWER(132.5 This part replaces 09491-26013.

09491-26019

$13.52

62

JET HOLDER

13385-33E00

$21.40

63

MAIN JET (55)

09491-55004

$12.38

64

PILOT JET (27.5)

09492-27011

$19.37

65

HOSE

13686-41F00

Unavailable

65A

HOSE (7X11X1000) | E33

13686-41F30

Unavailable

65B

HOSE (4X8X50) | E33

13683-41F30

Unavailable

65C

NIPPLE | E33

13685-38420

$16.85

65D

HOSE (4X8X400) | E33

13683-41F40

Unavailable

65E

O RING

13251-06C10

$4.26

66

PLATE,IDLE ADJU This part replaces 13279-41F01.

13279-41F02

Unavailable

67

BOLT, NO.3 This part replaces 07130-06103.

07130-0610B

$1.23

68

HOSE, FUEL COOK VACUUM | L:600!30

09355-40805-600

$8.70

69

3WAY, VACUUM HOSE

09367-04009

$5.13

70

VALVE, AIR VENT | E33; Includes Item(s) 71 - 73

13590-41F00

Unavailable

71

BRACKET | E33

13592-41F00

Unavailable

72

PROTECTOR | E33

94642-04F10

Unavailable

73

SCREW | E33 This part replaces 02112-06203.

02112-0620A

$1.45

74

HOSE, AIR VENT VALVE | E33

13595-41F10

Unavailable

75

HOSE SET,CSTR P | E33 This part replaces 15801-19F00.

44400-38810

$11.98

76

CLIP (ID:9.4,H:8) | E33

09401-09403

$2.01

77

CLAMP | E33 This part replaces 09404-06431.

09404-06039

$1.73

78

HOSE (4X8X600) | E33 L:600!480

09355-40805-600

$8.70

79

CLAMP | E33

09407-18402

$2.21
