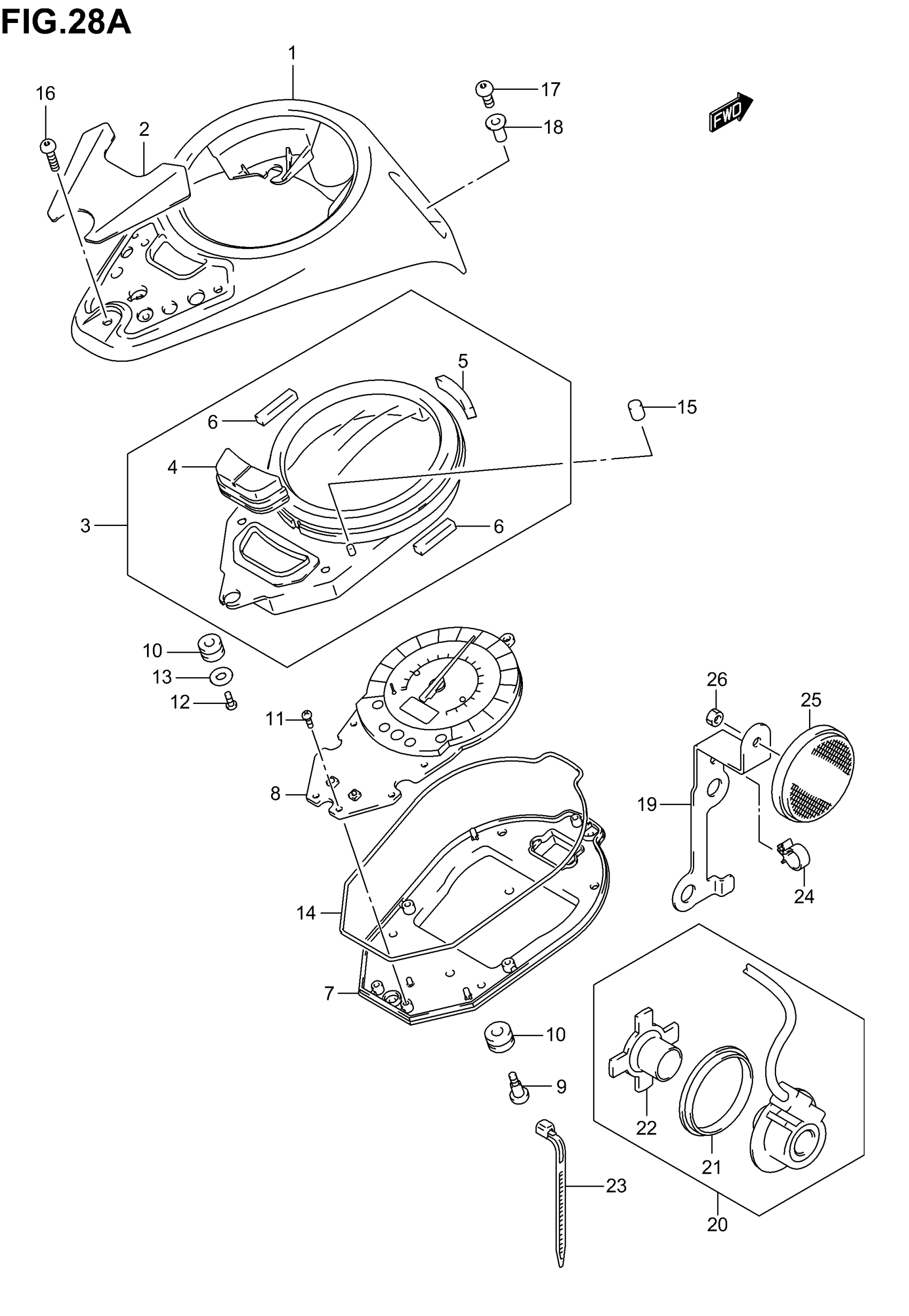

Suzuki VL800 (2005) SPEEDOMETER (MODEL K3/K4) Diagram

#

Description
Price

1

CASE ASSY

34150-41F00

$263.18

2

PLATE, DECORATION This part replaces 34157-41F00.

34157-41FA0

$19.87

3

CASE ASSY | Includes Item(s) 4 - 6

34151-41F00

$225.82

4

SWITCH, SELECT

34141-41F00

Unavailable

5

CUSHION, NO.1

34196-41F00

Unavailable

6

CUSHION, NO.2

34196-41F10

Unavailable

7

CASE, LOWER

34152-41F00

Unavailable

8

SPEEDOMETER (MILE/KILO) | VL800

34120-41F30

Unavailable

8

SPEEDOMETER (MILE/KILO) | VL800Z

34120-41F50

Unavailable

8

SPEEDOMETER (KILO) | VL800 E28

34120-41F20

Unavailable

8

SPEEDOMETER (KILO) | VL800Z E28

34120-41F40

Unavailable

9

BOLT

34186-41F00

Unavailable

10

.CUSHION

34996-43410

$4.35

11

SCREW

34183-14F00

$3.03

12

SCREW

34149-16B00

$1.98

13

WASHER

34181-21D00

$7.63

14

GASKET, METER CASE

34153-41F00

$12.53

15

CUSHION, NO.4

34961-41F00

Unavailable

16

SCREW (5X14)

09139-05025

$2.05

17

SCREW (5X18)

09139-05066

$3.20

18

NUT

09159-05019

$7.14

19

GUIDE

34938-41F10

Unavailable

20

SENSOR, SPEED | Includes Item(s) 21 - 22

34990-41F00

$212.08

21

SEAL

09286-44001

$11.67

22

MAGNET

34983-21E00

$31.16

23

CLAMP (L:145)

09407-14407

$3.57

24

CLIP, SENSOR LEAD

09403-06410

$2.53

25

REFLEX-REFLECTOR ASSY, FR SIDE

35950-14A00

$16.94

26

NUT This part replaces 08316-10053.

08316-1005A

$2.19
