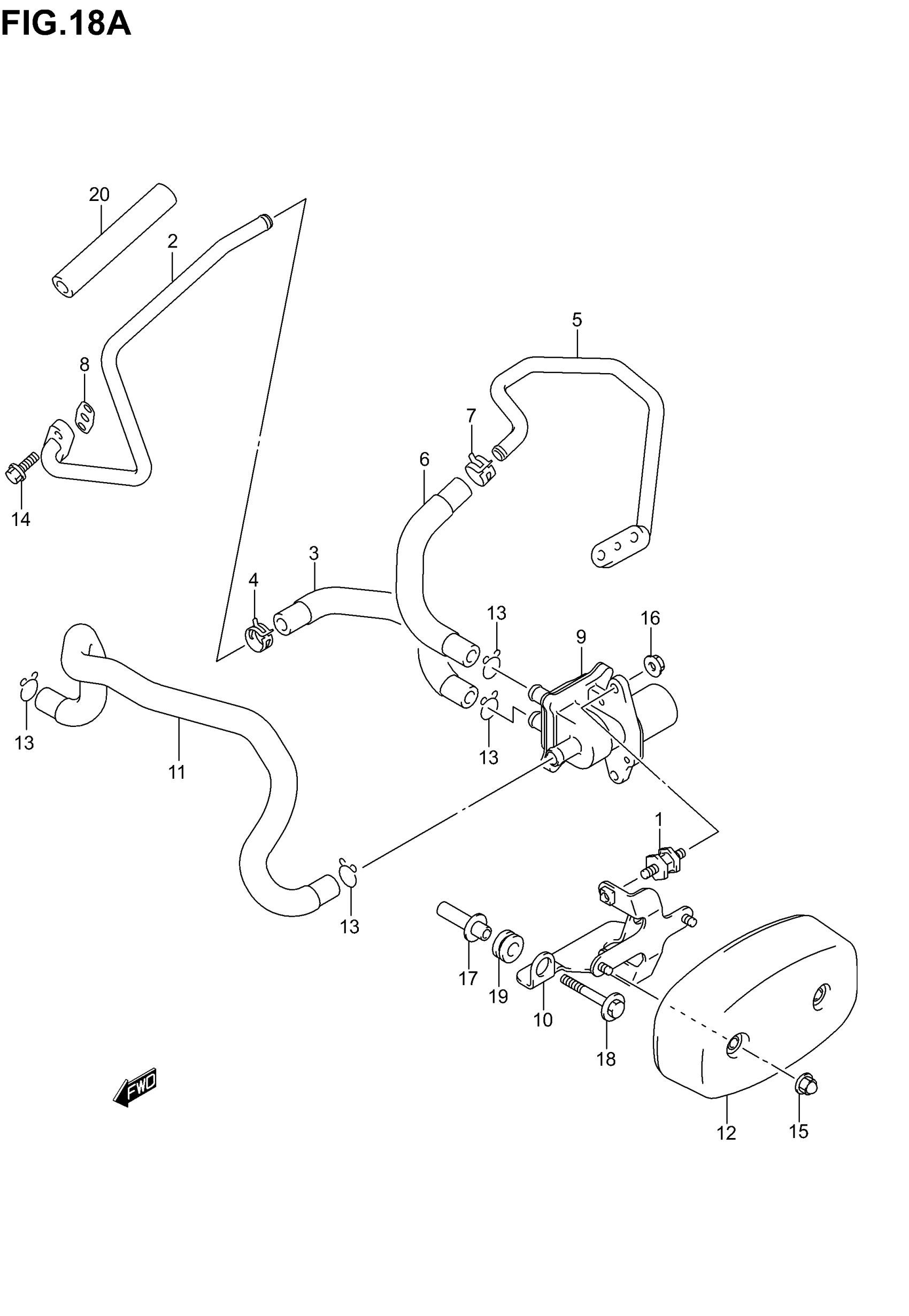

Suzuki VL800 (2005) SECOND AIR (MODEL K5) Diagram

#

Description
Price

1

BOLT RADIATOR C This part replaces 17788-13612.

17788-13613

$12.42

2

PIPE, 2ND AIR FR

18410-41F20

Unavailable

3

HOSE, 2ND AIR VALVE FR

18461-41F20

Unavailable

4

CLIP, 2ND AIR HOSE

09401-15407

$2.83

5

PIPE, 2ND AIR RR

18420-41F20

Unavailable

6

HOSE, 2ND AIR VALVE RR

18471-41F20

Unavailable

7

CLIP, 2ND AIR HOSE

09401-15407

$2.83

8

GASKET 2ND AIR PIPE

18441-45C01

$7.05

9

VALVE ASSY, 2ND AIR

18450-10F20

$283.88

10

BRACKET, 2ND AIR S

18610-41F20

Unavailable

11

HOSE, 2ND AIR CLNR

18711-41F20

Unavailable

12

COVER, 2ND AIR VAL

18780-41F20

$66.00

13

CLIP, 2ND AIR HOSE

09401-15101

$2.26

14

BOLT, 2ND AIR PIPE

01547-06167

$1.65

15

NUT, 2ND AIR COV

08313-20067

$2.42

16

NUT This part replaces 08316-10063.

08316-1006B

$2.50

17

SPACER, 2ND AIR BR

18620-41F00

Unavailable

18

BOLT, 2ND AIR BRKT

09116-06183

Unavailable

19

CUSHION, 2ND AIR BRKT

09320-10015

$2.54

20

PROTECTOR, 2ND AIR PIPE

18419-41F00

Unavailable
