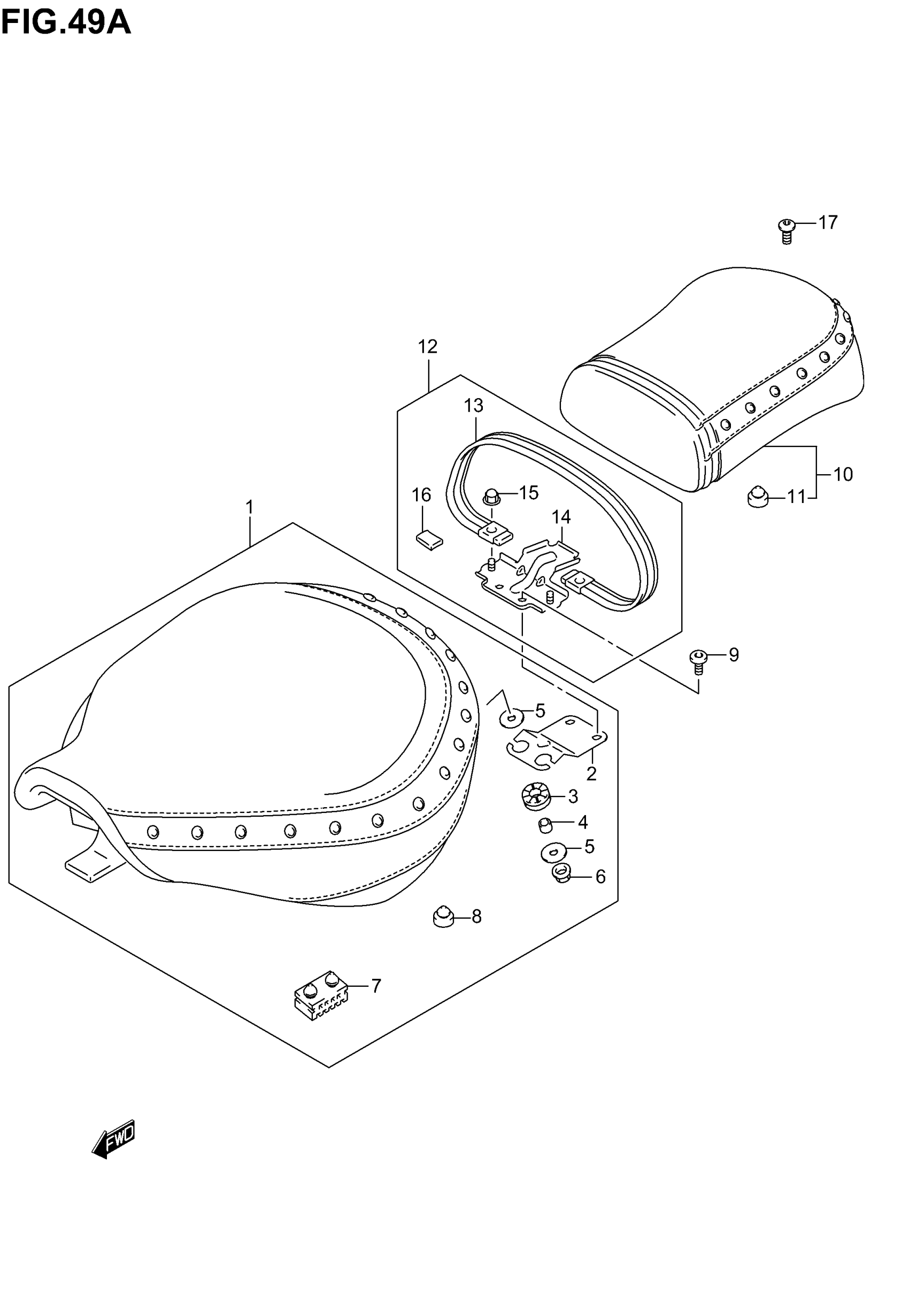

Suzuki VL800 (2005) SEAT (VL800ZK3/ZK4/TK5) Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | VL800ZK3/ZK4

45100-41F10-48H

Unavailable

1

SEAT ASSY(BLACK | VL800TK5; Includes Item(s) 2 - 8 This part replaces 45100-41F20-48H.

45100-41F22-48H

$420.62

2

BRACKET, SEAT

45115-41F00

Unavailable

3

CUSHION

45149-41F00

$10.45

4

SPACER

09180-07004

$2.30

5

WASHER

09160-06501

$1.86

6

NUT This part replaces 08316-10063.

08316-1006B

$2.50

7

CUSHION

45149-31300

$3.56

8

CUSHION

09321-10002

$2.22

9

BOLT, REAR (8X16)

09106-06064

$6.02

10

SEAT ASSY,PILLI | VL800ZK3/ZK4 This part replaces 45300-41F00-48H.

45300-41F01-48H

Unavailable

10

SEAT ASSY,PILLI | VL800TK5; Includes Item(s) 11 This part replaces 45300-41F20-48H.

45300-41F21-48H

Unavailable

11

CUSHION

09321-10002

$2.22

12

BAND ASSY,SEAT( | Includes Item(s) 13 - 16 This part replaces 45180-41F00-48H.

45180-41F02-48H

$62.02

13

BAND,SEAT This part replaces 45181-41F00.

45181-41F02

$29.63

14

BRACKET, SEAT BAND

45185-41F00

$57.29

15

NUT This part replaces 08313-20063.

08313-2006A

$1.97

16

CUSHION

61544-94500

$1.68

17

BOLT, REAR (8X16)

09106-08140

$6.38
