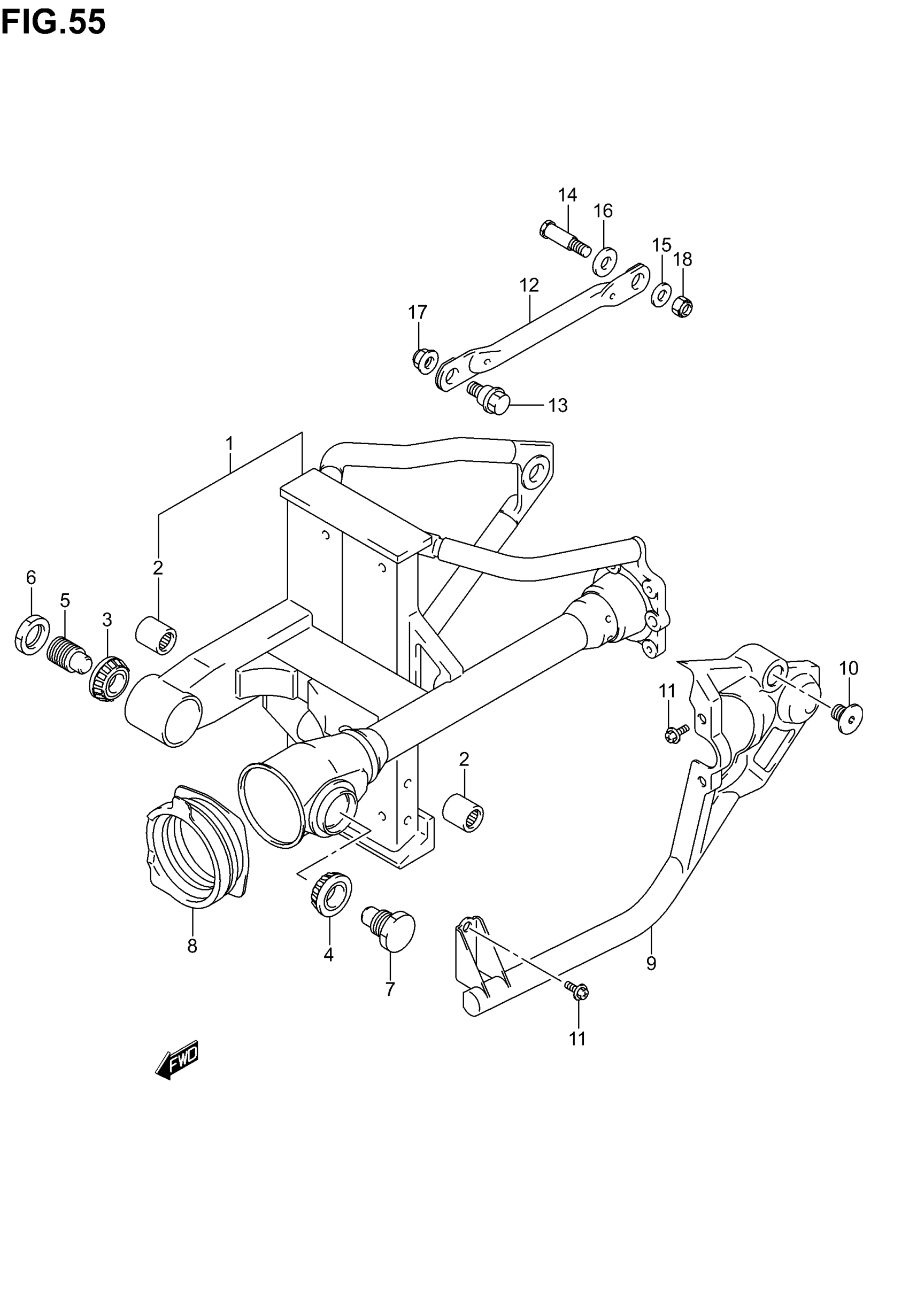

Suzuki VL800 (2005) REAR SWINGING ARM (MODEL K1/K2) Diagram

#

Description
Price

1

SWINGINGARM SET,RR (BLACK) | Includes Item(s) 2 This part replaces 61101-41870-019.

61101-41891-019

$1,409.43

2

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

3

BEARING, PIVOT RH (17X40X13.25,WITH PLATE)

09265-17013

$82.55

4

BEARING, PIVOT LH (17X40X13.25)

09265-17012

$69.07

5

BOLT, PIVOT RH

61213-24A00

Unavailable

6

NUT, PIVOT RH

09140-24007

$3.89

7

BOLT, PIVOT LH

61213-10F00

Unavailable

8

BOOT, SHAFT

61372-41F00

$27.97

9

COVER, RR SWGARM LH

61126-41F00

Unavailable

10

BOLT,RR SWGARM This part replaces 61127-41F00.

61127-41F0V

Unavailable

11

BOLT, RR SWGARM COVER

09111-06058

$2.47

12

TORQUE LINK, REAR

64310-41F00

$38.45

13

BOLT, FRONT

09111-10062

$8.27

14

BOLT, REAR

09111-10057

$4.88

15

WASHER, REAR This part replaces 09160-10085.

09160-10142

$2.34

16

CUSHION, REAR

09320-12501

$6.83

17

NUT This part replaces 08319-31103.

08319-3110A

$2.73

18

NUT, REAR

09159-10027

$3.10
