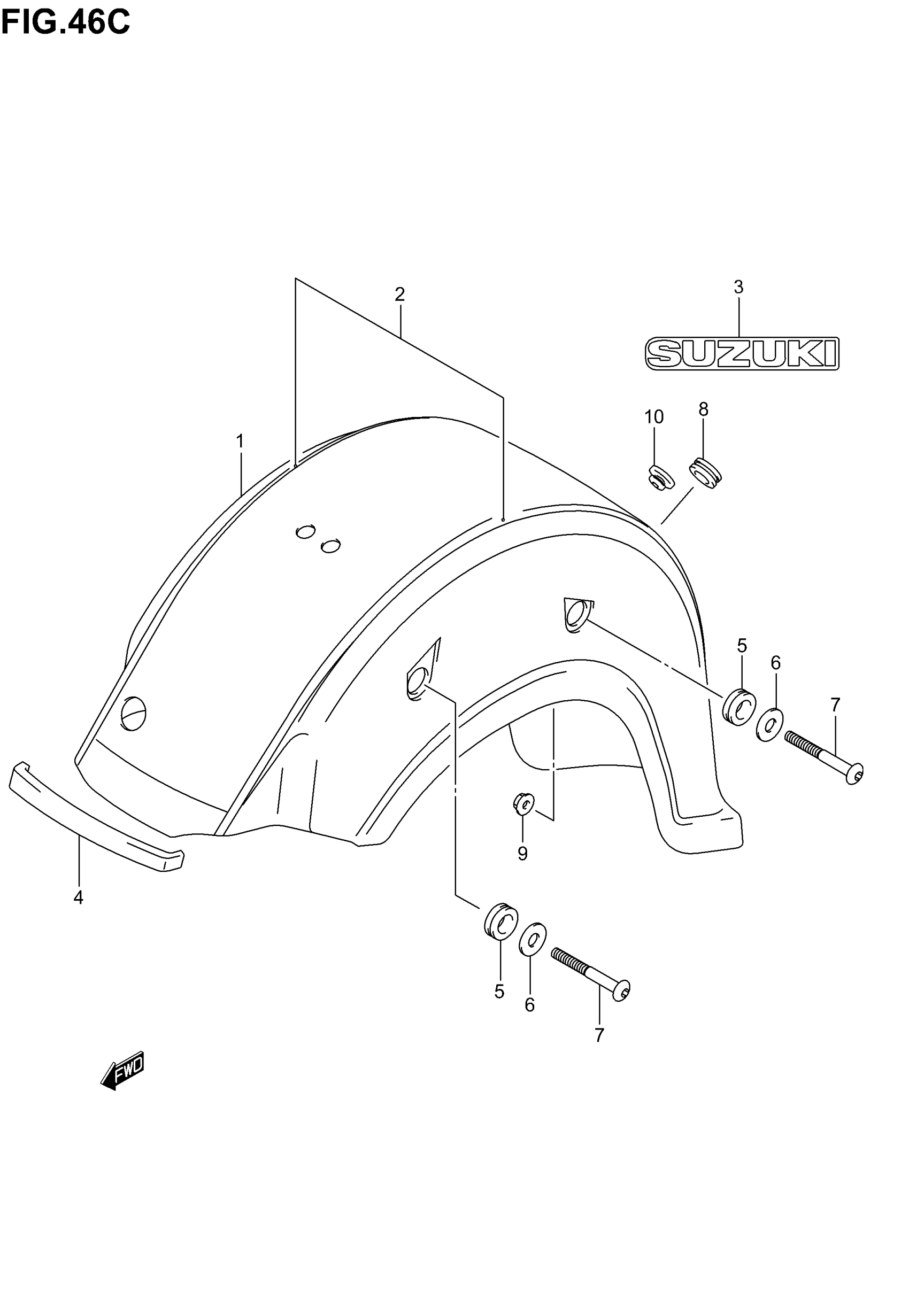

Suzuki VL800 (2005) REAR FENDER (VL800K4) Diagram

#

Description
Price

1

FENDER, REAR (BLACK)

63110-41F40-YAY

Unavailable

1

FENDER, REAR

63110-41F40-AAV

Unavailable

1

FENDER, REAR | Includes Item(s) 2 - 3

63110-41F40-AAW

Unavailable

2

TAPE SET | FOR YAY

68170-41F20-ADK

Unavailable

2

TAPE SET | FOR AAV

68170-41F20-ABZ

Unavailable

2

TAPE SET | FOR AAW

68170-41F20-ACA

Unavailable

3

EMBLEM | FOR YAY

68171-26F00-ACV

Unavailable

3

EMBLEM | FOR AAV

68171-26F00-ADF

Unavailable

3

EMBLEM | FOR AAW

68171-26F00-ADG

Unavailable

4

CUSHION, FRONT

47161-29B00

$7.50

5

CUSHION

47191-24F00

$5.17

6

WASHER

09160-15002

$1.91

7

BOLT

63161-41F00

$9.40

8

CUSHION, PILLION SEAT

09320-15008

$3.89

9

NUT This part replaces 08316-10083.

08316-1008B

$2.66

10

CUSHION, BRACE

09321-10007

$2.71
