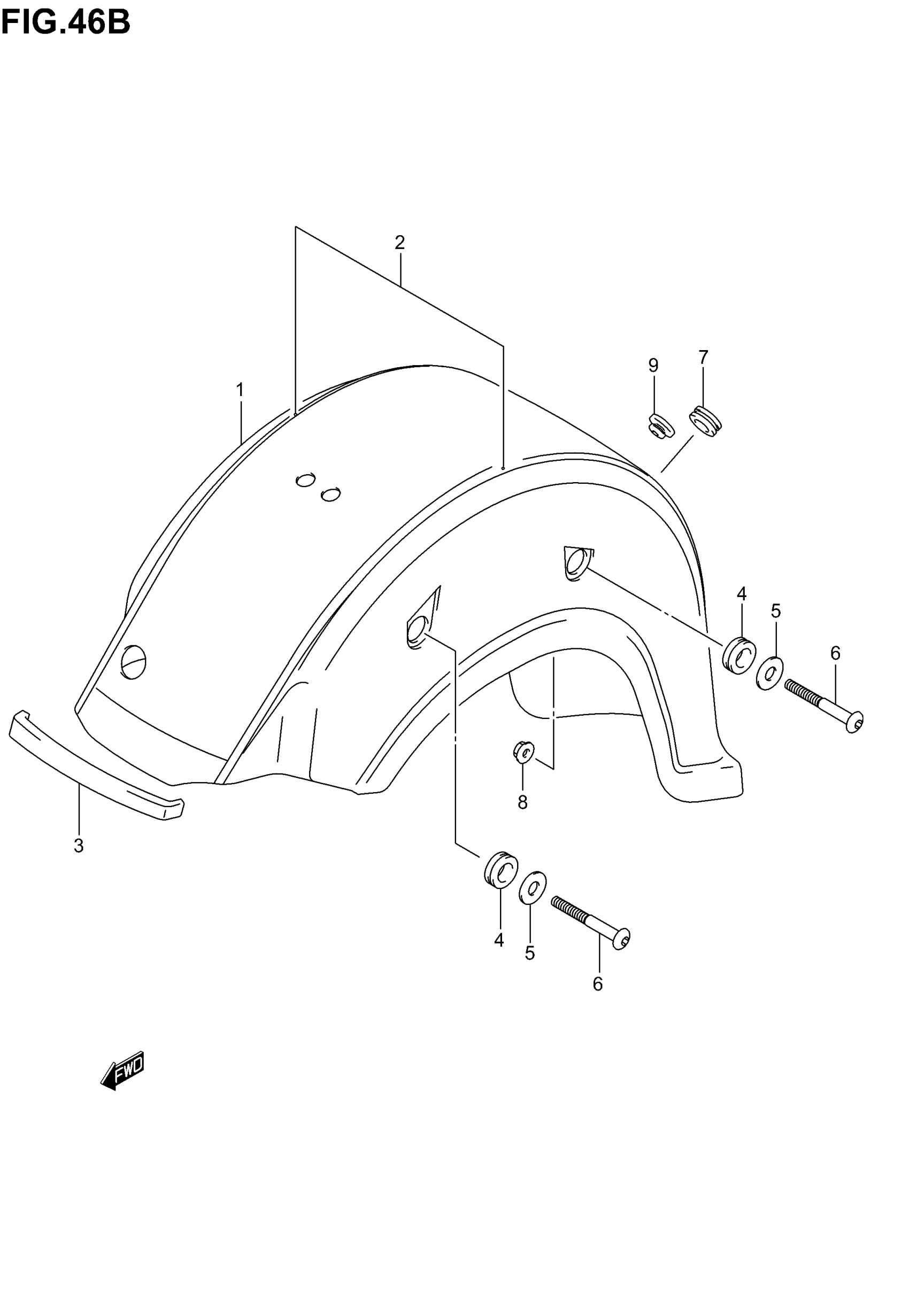

Suzuki VL800 (2005) REAR FENDER (MODEL K3) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63110-41F30-33J.

63111-41F01-33J

Unavailable

1

FENDER COMP,REA This part replaces 63110-41F30-KT9.

63110-41F31-KT9

$1,181.53

1

FENDER, REAR

63110-41F30-KU1

Unavailable

1

FENDER COMP,REA | VL800ZK3; Includes Item(s) 2 - 2 This part replaces 63110-41F30-YC3.

63111-41F01

$149.73

2

TAPE SET | FOR 33J

68170-41F10-LT2

Unavailable

2

TAPE SET | FOR KT9

68170-41F10-LS9

Unavailable

2

TAPE SET | FOR KU1

68170-41F10-LT1

Unavailable

2

TAPE SET | VL800ZK3

68170-41F10-ME4

Unavailable

3

CUSHION, FRONT

47161-29B00

$7.50

4

CUSHION

47191-24F00

$5.17

5

WASHER

09160-15002

$1.91

6

BOLT

63161-41F00

$9.40

7

CUSHION, PILLION SEAT

09320-15008

$3.89

8

NUT This part replaces 08316-10083.

08316-1008B

$2.66

9

CUSHION, BRACE

09321-10007

$2.71
