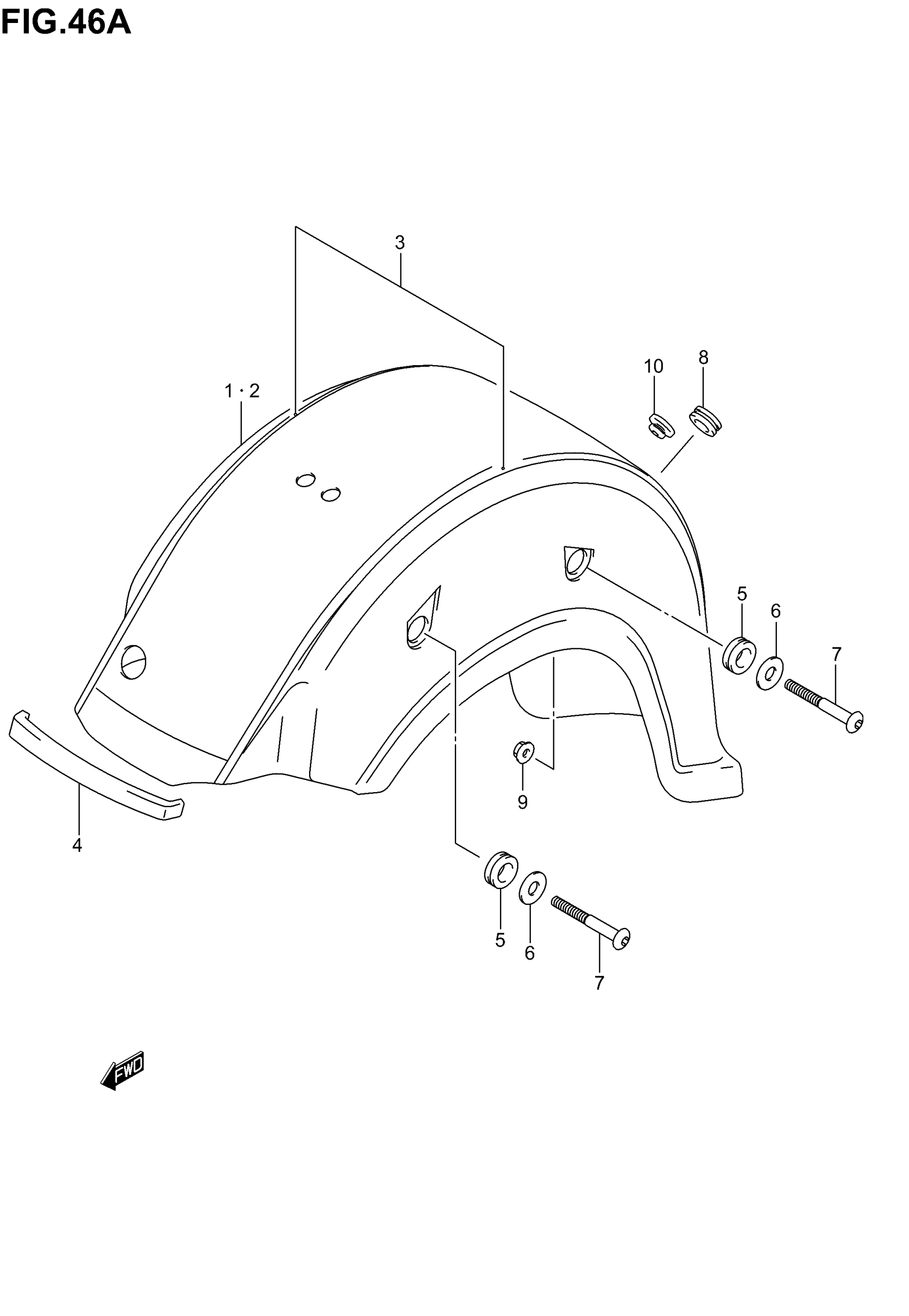

Suzuki VL800 (2005) REAR FENDER (MODEL K2) Diagram

NO DESCRIPTION AVAILABLE This part replaces 63111-41F00-33J.

63111-41F01-33J

Unavailable

FENDER, REAR

63110-41F00-FH9

Unavailable

FENDER, REAR | Includes Item(s) 3 - 3

63110-41F00-HE6

Unavailable

TAPE SET | FOR FH9

68170-41F01-HJ1

Unavailable

TAPE SET | FOR HE6

68170-41F01-HE6

Unavailable

CUSHION, FRONT

47161-29B00

$7.50

CUSHION

47191-24F00

$5.17

WASHER

09160-15002

$1.91

BOLT

63161-41F00

$9.40

CUSHION, PILLION SEAT

09320-15008

$3.89

NUT This part replaces 08316-10083.

08316-1008B

$2.66

CUSHION, BRACE

09321-10007

$2.71
