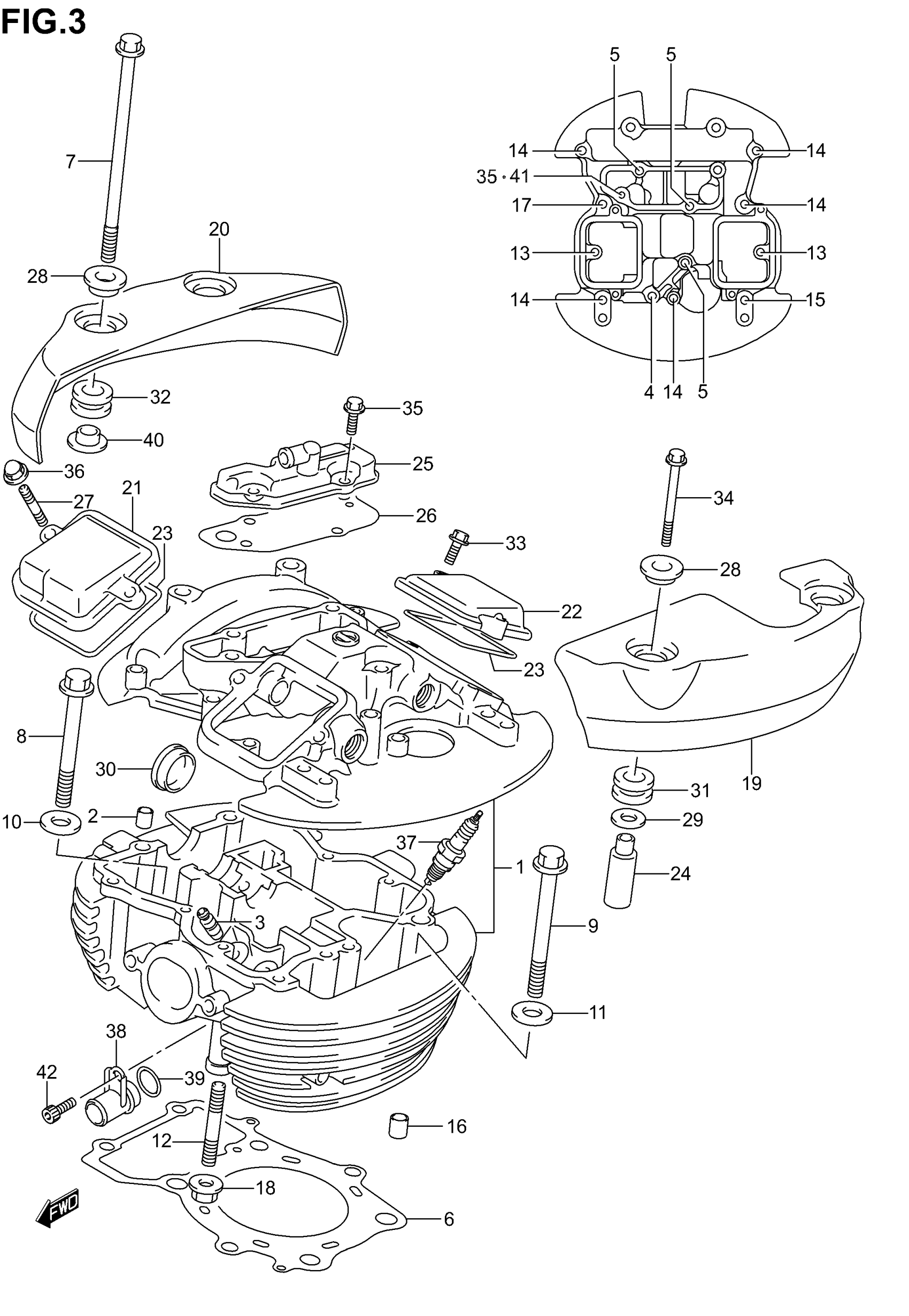

Suzuki VL800 (2005) REAR CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | MODEL K1/K2/K3/K4

11103-41F01

Unavailable

1

HEAD ASSY, CYLINDER REAR | MODEL K5; Includes Item(s) 2

11103-41FA0

Unavailable

2

PIN (11X14)

09206-11004

$4.84

3

GUIDE, VALVE (OS 0.3) | OPT This part replaces 11115-38A71.

11115-41F70

$45.97

4

BOLT (6X50)

09103-06101

$2.72

5

BOLT (6X55)

09103-06102

$1.68

6

GASKET, CYLINDER HEAD REAR

11142-41F00

$36.21

7

BOLT (L:250)

09103-08370

$17.60

8

BOLT (10X155)

09103-10133

$10.32

9

BOLT (10X165)

09103-10134

$10.32

10

WASHER (8.5X24X1.6)

09160-08130

$2.01

11

WASHER (10.5X22X2.3) | MODEL K1/K2 This part replaces 09160-10060.

09160-10039

$2.24

11

WASHER (10.5X22X2.3) | MODEL K3/K4/K5

09160-10039

$2.24

12

STUD BOLT (L:40) | MODEL K1/K2

09108-08144

$2.93

12

STUD BOLT (L:40) | MODEL K3/K4

01421-08403

Unavailable

13

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

14

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

15

BOLT This part replaces 01550-06403.

01550-0640A

$2.43

16

KNOCK PIN

04211-13189

$2.19

17

BOLT This part replaces 07120-06303.

07120-0630B

$3.19

18

NUT | MODEL K1/K2/K3/K4 This part replaces 08316-10083.

08316-1008B

$2.65

19

CAP, CYLINDER HEAD COVER RL | MODEL K1/K2/K3/K4

11173-41F00

Unavailable

19

CAP, CYLINDER HEAD COVER RR | MODEL K5

11173-41FA0

Unavailable

20

CAP, CYLINDER HEAD COVER RR

11174-41F00

Unavailable

21

CAP, INSPECTION INTAKE

11175-38A11

$26.03

22

CAP, INSPECTION EXHAUST

11176-38A11

$26.03

23

GASKET, INSPECTION CAP

11177-38A00

$4.09

24

SPACER, HEAD COVER CAP

11179-10F10

$13.73

25

COVER, BREATHER | MODEL K1/K2/K3/K4

11186-41F00

Unavailable

25

COVER, BREATHER | MODEL K5

11186-41FA0

Unavailable

26

GASKET, BREATHER COVER | MODEL K1/K2/K3/K4 This part replaces 11187-41F00.

11187-41F10

$8.28

26

GASKET, BREATHER COVER | MODEL K5

11187-41F10

$8.28

27

BOLT, INSPECTION CAP STUD

09108-06102

$4.43

28

WASHER, HEAD COVER CAP UPPER

09160-06084

$1.77

29

WASHER, HEAD COVER CAP LOWER

09160-09016

$2.50

30

PLUG, CYLINDER HEAD

09241-30004

$5.97

31

CUSHION, HEAD COVER CAP

09320-09016

$1.97

32

CUSHION, HEAD COVER BOLT

09320-13015

$2.80

33

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

34

BOLT, HEAD COVER CAP

01547-06507

$2.42

35

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

36

NUT | MODEL K1/K2/K3/K4 This part replaces 08313-20063.

08313-2006A

$1.97

36

NUT, INSPECTION CAP | MODEL K5

09159-06093

Unavailable

37

SPARK PLUG, DPR7EA-9 (NGK)

09482-00354

$3.04

37

SPARK PLUG (NGK,DPR7EA-9) This part replaces 09482-00355.

09482-00354

$3.04

37

SPARK PLUG, DPR9EA-9 (NGK) | OPT

09482-00330

$2.85

37

SPARK PLUG, X27EPR-U9 (ND) | OPT

09482-00331

$5.77

37

SPARK PLUG, DPR8EA-9 (NGK) | OPT

09482-00334

$2.80

37

SPARK PLUG, X24EPR-U9 (ND) | OPT

09482-00335

$4.90

38

UNION, CYLINDER HEAD JOINT | MODEL K1/K2/K3/K4 This part replaces 17891-41F00.

17891-41F10

$20.75

38

UNION, CYLINDER HEAD JOINT | MODEL K5

17891-41F10

$20.75

39

O RING

09280-16005

$2.24

40

BUSH, HEAD COVER BOLT

09301-08007

$7.38

41

GASKET, 5.8X13X1.2

09168-06023

$2.01

42

BOLT This part replaces 07130-06123.

07130-0612A

$2.50
