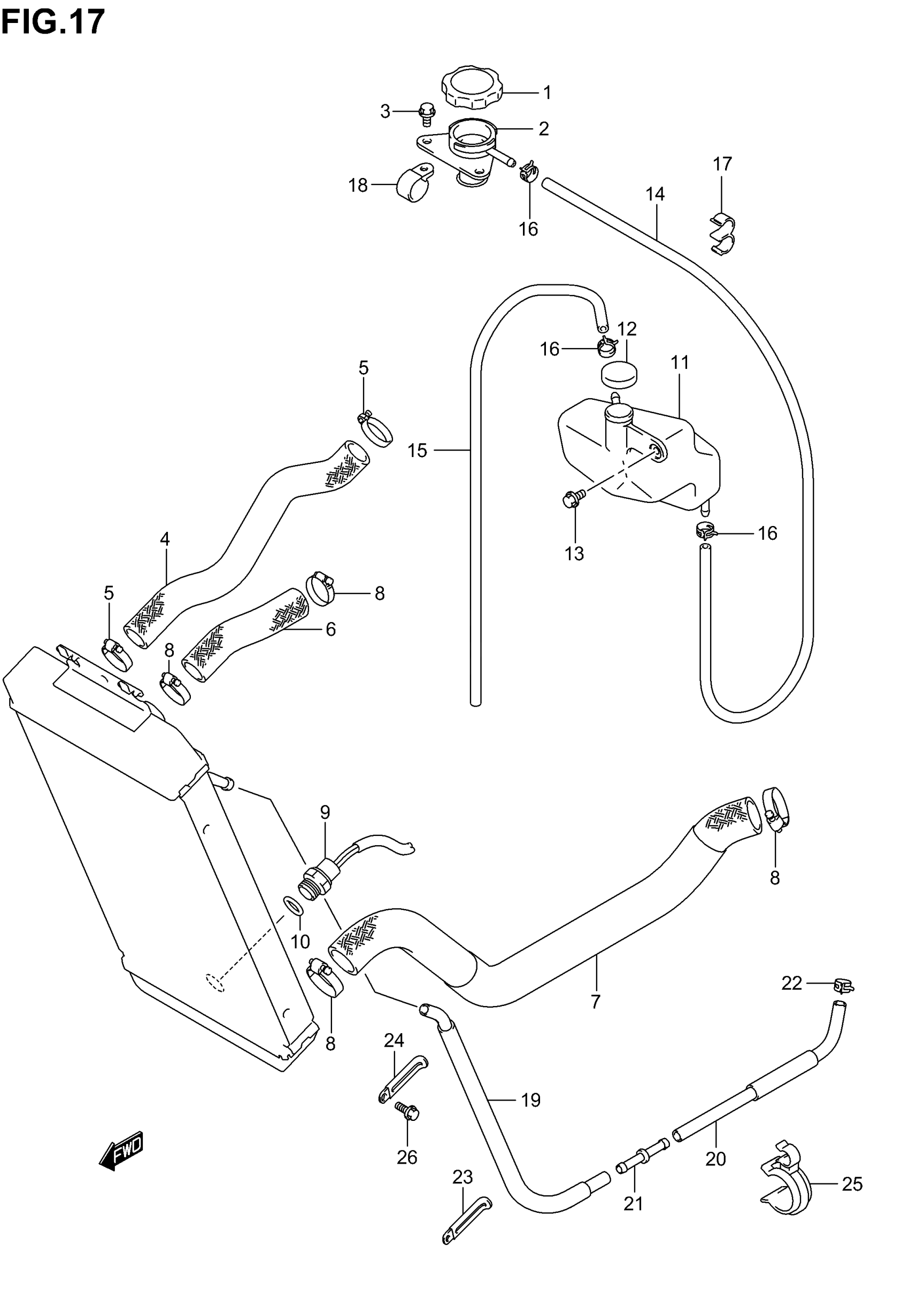

Suzuki VL800 (2005) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR,1.1

17730-12C30

$51.93

2

CONDUCTION

17791-24D00

$61.15

3

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

4

HOSE, CONDUCTION

17853-41F00

$29.08

5

CLAMP

09402-28511

$6.88

6

HOSE, RADIATOR INLET

17851-41F00

$19.15

7

HOSE, RADIATOR OUTLET | MODEL K1 This part replaces 17852-41F00.

17852-41F02

$48.23

7

HOSE, RADIATOR OUTLET | MODEL K2/K3/K4 This part replaces 17852-41F01.

17852-41F02

$48.23

7

HOSE, RADIATOR OUTLET | MODEL K5

17852-41F02

$48.23

8

CLAMP, WATER HOSE

09402-32511

$10.86

9

SWITCH,RDTR FAN | Includes Item(s) 10 This part replaces 17680-33E00.

17680-33E01

$48.44

10

O RING

17689-50F00

$2.53

11

RESERVOIR TANK | MODEL K1/K2/K3/K4

17911-41F00

Unavailable

11

TANK,RESERVOIR | MODEL K5 This part replaces 17911-41F10.

17911-41F11

$66.87

12

CAP, RESERVOIR TANK

17932-12C00

$4.48

13

BOLT, CLAMP | MODEL K1 This part replaces 01550-06123.

01550-0612A

$1.97

13

BOLT | MODEL K2/K3/K4

09116-06167

$2.19

13

BOLT | MODEL K5

09111-06085

$4.54

14

HOSE SET,RSVR I | MODEL K1/K2/K3/K4 This part replaces 17981-41F00.

17900-41810

$29.65

14

HOSE SET,RSVR I | MODEL K5 This part replaces 17981-41F10.

17900-41810

$29.65

15

HOSE, OUTLET

17981-19F00

$14.70

16

CLIP

09401-08411

$1.78

17

CLAMP

09408-00100

Unavailable

18

CLAMP | MODEL K5

09403-08404

Unavailable

19

HOSE, WATER BYPASS | MODEL K5

17855-41F00

$50.92

20

HOSE, WATER BYPASS | MODEL K5

17856-41F00

$26.88

21

JOINT | MODEL K5

09367-08001

$4.17

22

CLIP | MODEL K5 This part replaces 09401-12409.

09401-12414

$3.26

23

CLAMP | MODEL K5

09404-08206

$3.72

24

CLAMP(L:62) | MODEL K5 This part replaces 09404-10204.

09404-10206

$2.35

25

CLAMP | MODEL K5

09408-00177

Unavailable

26

PLUG, OIL GALLERY | MODEL K5 This part replaces 01550-10163.

01550-1016A

$3.10
