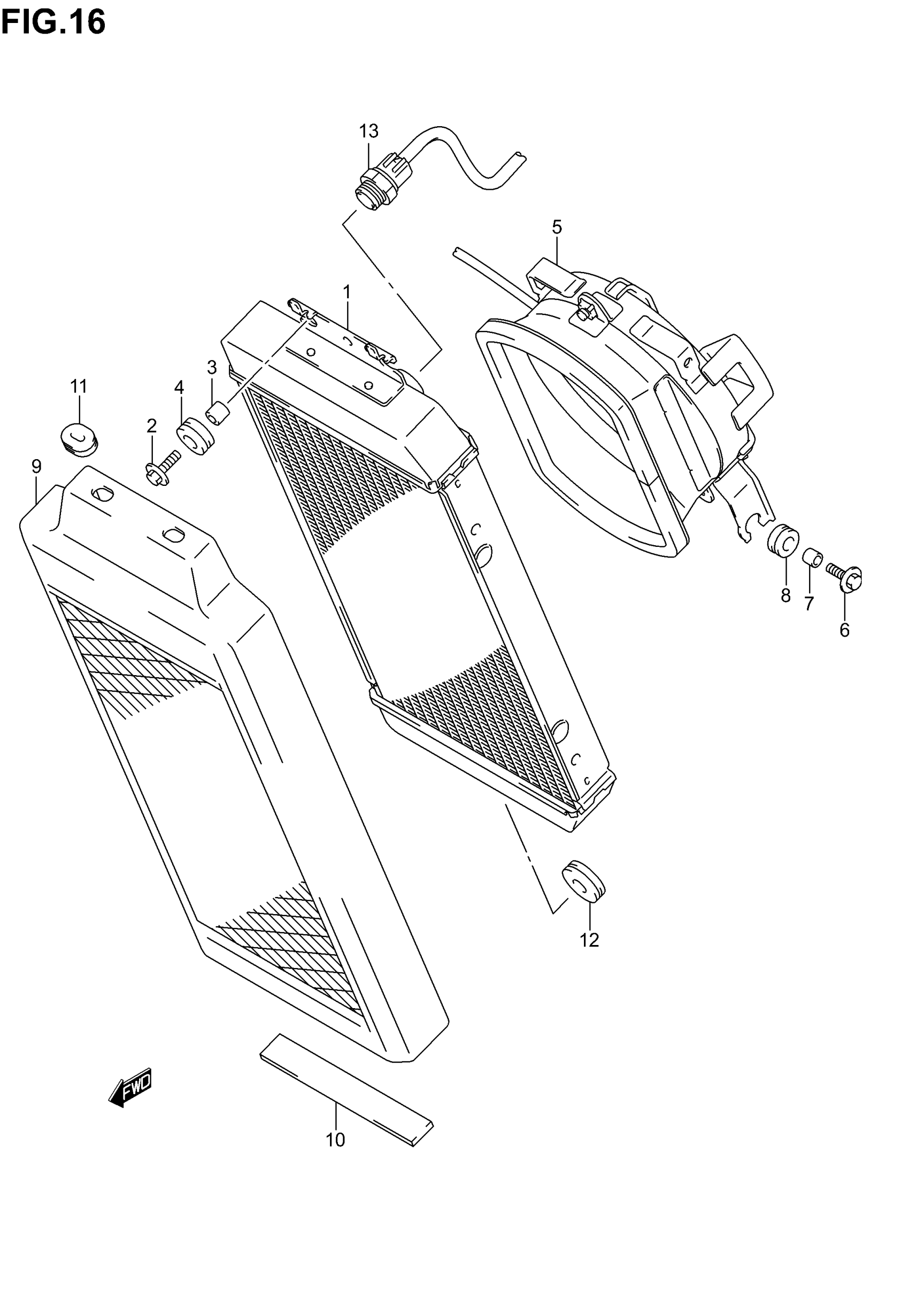

Suzuki VL800 (2005) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY,W | MODEL K1/K2/K3/K4 This part replaces 17710-41F00.

17710-41F30

Unavailable

1

RADIATOR ASSY, WATER | MODEL K5 This part replaces 17710-41F10.

17710-41F20

$1,140.25

2

BOLT (6X20)

09116-06167

$2.19

3

SPACER

09180-06310

$1.91

4

CUSHION

09320-10501

$6.23

5

FAN ASSY, RADIATOR | MODEL K1/K2/K3/K4 This part replaces 17800-41F00.

17800-41F20

$697.98

5

FAN ASSY, RADIATOR | MODEL K5 This part replaces 17800-41F10.

17800-41F20

$697.98

6

BOLT (6X20)

09116-06167

$2.19

7

SPACER

09180-06310

$1.91

8

CUSHION

09320-10015

$2.54

9

COVER, RADIATOR

17760-41F00

$53.18

10

CUSHION This part replaces 17798-29E40.

47451-38A01

$4.43

11

CUSHION, UPPER

09320-03004

$2.12

12

CUSHION, LOWER

09320-08028

$3.04

13

SWITCH ASSY,WAT | MODEL K1/K2/K3/K4 This part replaces 34850-41F00.

34850-23E00

Unavailable
