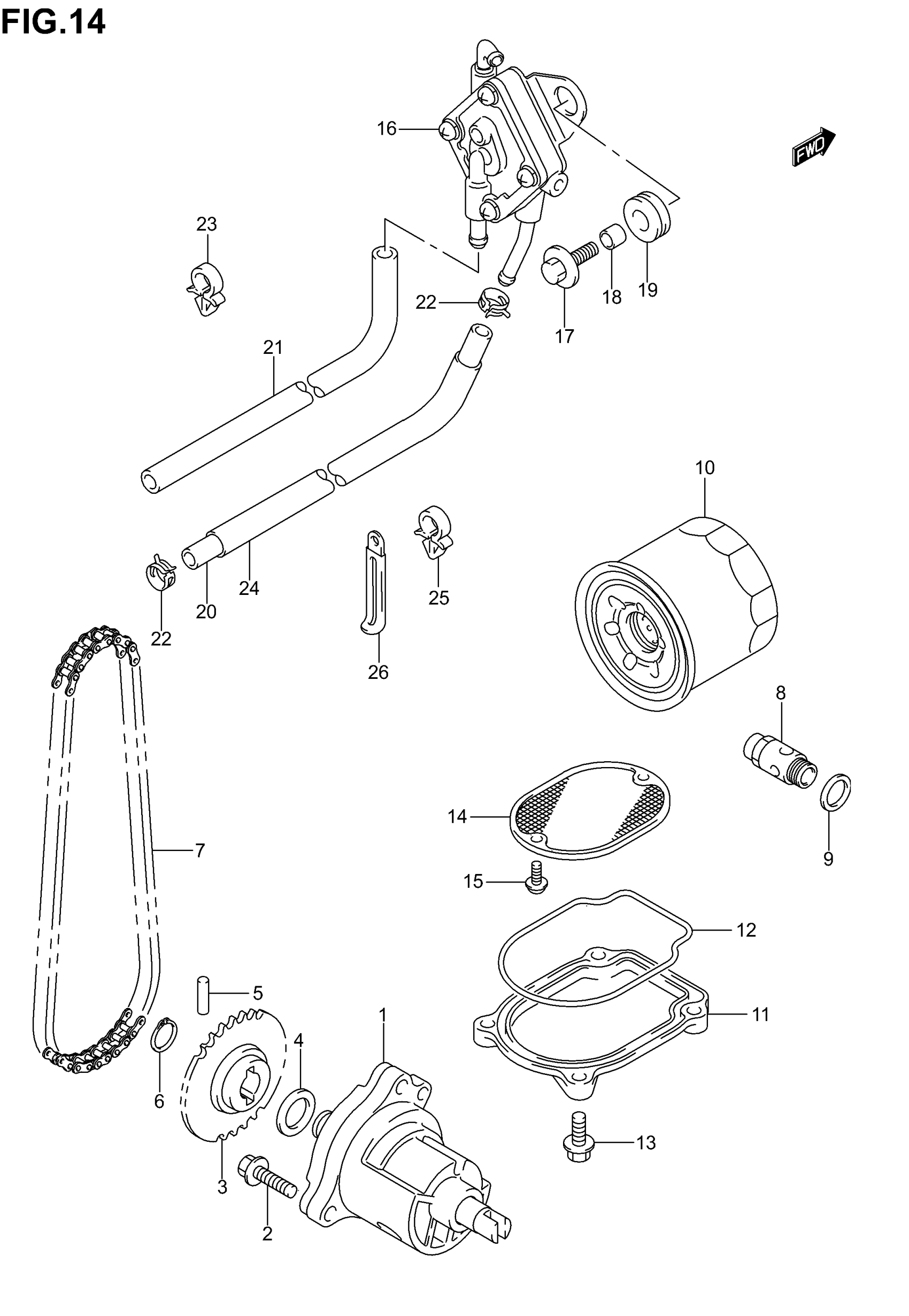

Suzuki VL800 (2005) OIL PUMP / FUEL PUMP (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

PUMP ASSY, OIL

16400-38A01

$224.88

2

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

3

SPROCKET, OIL PUMP DRIVEN

16331-38A10

Unavailable

4

WASHER

09181-12158

$2.26

5

PIN

09261-05006

$1.49

6

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

7

CHAIN, OIL PUMP DRIVE

16310-38A00

$33.93

8

VALVE ASSY, OIL RELIEF

16440-24A01

Unavailable

9

GASKET

09168-16002

$1.91

10

FILTER, ENGINE OIL | MODEL K1/K2/K3 This part replaces 16510-34E00.

16510-07J00

$13.10

10

FILTER, ENGINE OIL | MODEL K4 This part replaces 16510-03G00-X07.

16510-07J00

$13.10

11

CAP, OIL STRAINER

16523-38A00

$31.70

12

O RING

16528-38A00

$11.77

13

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

14

STRAINER, OIL

16520-38A00

$8.12

15

SCREW This part replaces 02112-75123.

02112-7512A

$2.42

16

PUMP ASSY,FUEL This part replaces 15100-41F00.

15100-41F01

$90.13

17

BOLT (6X20)

09116-06093

$2.43

18

SPACER

09180-06319

$3.85

19

CUSHION

09320-10015

$2.54

20

HOSE,FUEL PUMP This part replaces 15801-41F00.

15801-41F01

$18.73

21

HOSE(4.5X8.5,6X | L:600!450 This part replaces 09359-45854-600.

09359-45857-600

$15.07

22

CLIP (ID:9.4,H:8)

09401-09403

$2.03

23

CLAMP, VACUUM HOSE

09403-08405

$2.53

24

PROTECTOR, FUEL HOSE

15812-41F00

$11.77

25

CLAMP, FUEL HOSE FR

09403-12411

Unavailable

26

CLAMP, FUEL HOSE RR

09404-08420

$3.16
