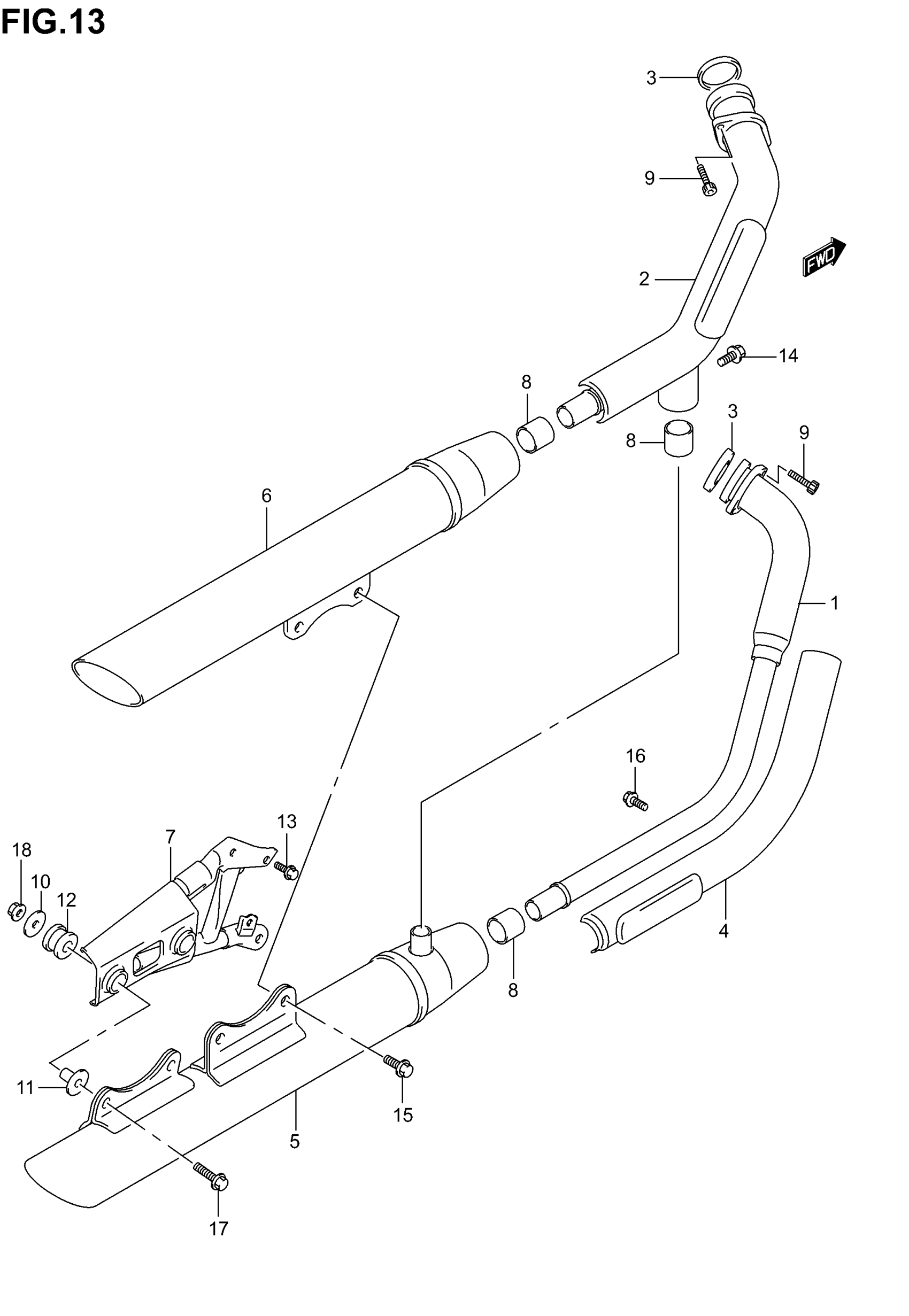

Suzuki VL800 (2005) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST FR This part replaces 14150-41F01.

14150-41F02

Unavailable

2

PIPE, EXHAUST RR This part replaces 14160-41F01.

14160-41F02

Unavailable

3

GASKET, EXHAUST

14181-10F00

$12.91

4

COVER, EXHAUST FRONT This part replaces 14180-41F01.

14180-41F02

Unavailable

5

MUFFLER, FRONT | MODEL K1/K2/K3/K4 This part replaces 14310-41F11-H01.

14310-41F12-H01

Unavailable

5

MUFFLER, FRONT | MODEL K5 E3,E28

14310-41F12-H01

Unavailable

5

MUFFLER, FRONT | MODEL K5 E33

14310-41F60-H01

Unavailable

6

MUFFLER, REAR | MODEL K1/K2/K3/K4 This part replaces 14340-41F11-H01.

14340-41F12-H01

Unavailable

6

MUFFLER, REAR | MODEL K5 E3,E28

14340-41F12-H01

Unavailable

6

MUFFLER, REAR | MODEL K5 E33

14340-41F60-H01

$894.93

7

BRACKET, MUFFLER SUPPORT

14410-41F01

$153.62

8

CONNECTOR, MUFFLER

14771-29E00

$23.63

9

BOLT, EXHAUST PIPE

09106-08165

$4.03

10

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

11

SPACER

09180-08156

$6.70

12

CUSHION

09320-12049

$10.68

13

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

14

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$3.04

15

BOLT This part replaces 01550-08453.

01550-0845A

$3.14

16

BOLT, EXHAUST COVER This part replaces 07120-06163.

07120-0616B

$2.45

17

BOLT, MUFFLER JOINT

09106-08174

$3.37

18

NUT This part replaces 08361-25088.

08361-2508A

$1.97
