Description

Price

1

BODY, LUGGAGE BOX

92211-41F00

$88.53

2

LID,LUGGAGE BOX This part replaces 92212-41F00.

92212-41F01

$57.67

3

CUSHION

93676-80020

$2.92

3A

CUSHION, NO.2

92213-41F00

$4.27

4

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

5

BAND, TOOL | MODEL K1/K2

09462-00001

$4.56

5

O RING(D:3.5,ID | MODEL K3/K4/K5 This part replaces 09280-61002.

09280-61004

$2.60

6

TOOL ASSY This part replaces 09800-21012.

09800-21069

$40.17

7

HEXAGON SPANNER, 6

09816-00050

$5.03

7

HEXAGON SPANNER, 4

09816-00103

$6.17

7

HEXAGON SPANNER, 12

09816-00139

Unavailable

7

HEXAGON SPANNER, 8

09816-00051

$6.23

8

SPANNER (22)

09817-00035

$5.67

9

CLAMP,WRENCH

09822-00003

$10.34

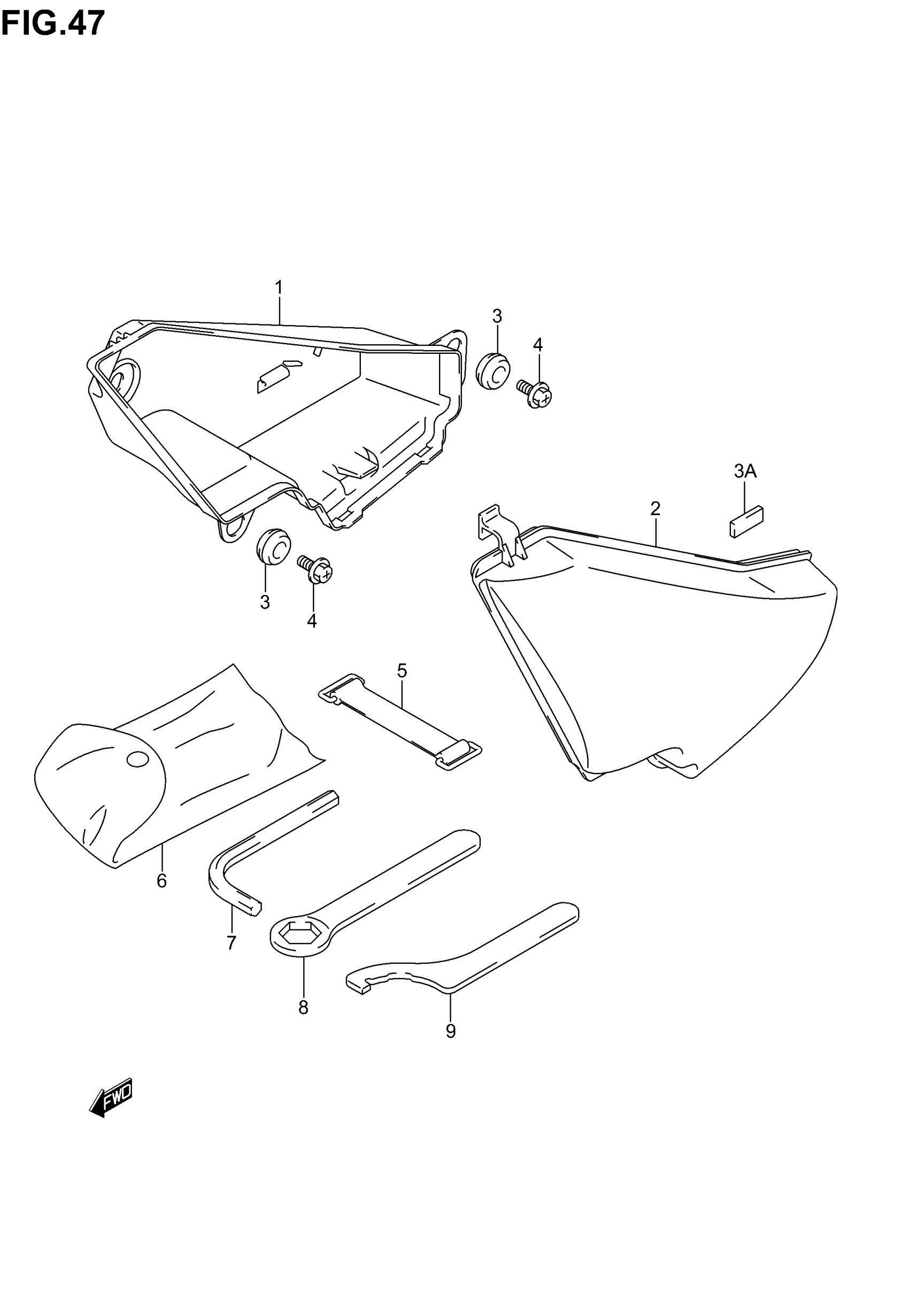

Suzuki VL800 (2005) LUGGAGE BOX Diagram
