Description

Price

1

HANDLEBAR

56111-41F00

$300.80

2

BALANCER SET, HANDLEBAR | Includes Item(s) 3 - 8 This part replaces 56200-10890.

56200-10892

$57.38

3

SCREW

09127-06017

$2.78

4

EXPANDER, OUTER

56272-26D01

$7.25

5

SPACER

56276-17D00

$5.07

6

WASHER

09160-06131

$2.50

7

EXPANDER, INNER

56272-10G10

$4.73

8

NUT This part replaces 56273-10G00.

56273-10G10

$8.65

9

MIRROR ASSY, REAR VIEW RH This part replaces 56500-41F00.

56500-41F01

$84.38

10

MIRROR ASSY, REAR VIEW LH This part replaces 56600-41F00.

56600-41F01

$84.38

11

CABLE ASSY, CLUTCH

58200-41F20

$81.33

12

CABLE ASSY, THROTTLE

58300-41FA0

$83.65

13

CABLE ASSY, THROTTLE NO.2

58300-41FB0

$83.65

14

GUIDE, THROTTLE CABLE

58626-41F01

$6.08

15

SCREW, GUIDE

09139-05033

$2.20

16

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

17

GUIDE, CABLE

58620-41F00

Unavailable

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

19

CLAMP (L:190)

09407-19401

$3.05

19

CLAMP (L:235)

09407-25401

$4.66

20

CLIP

09408-00033

$2.83

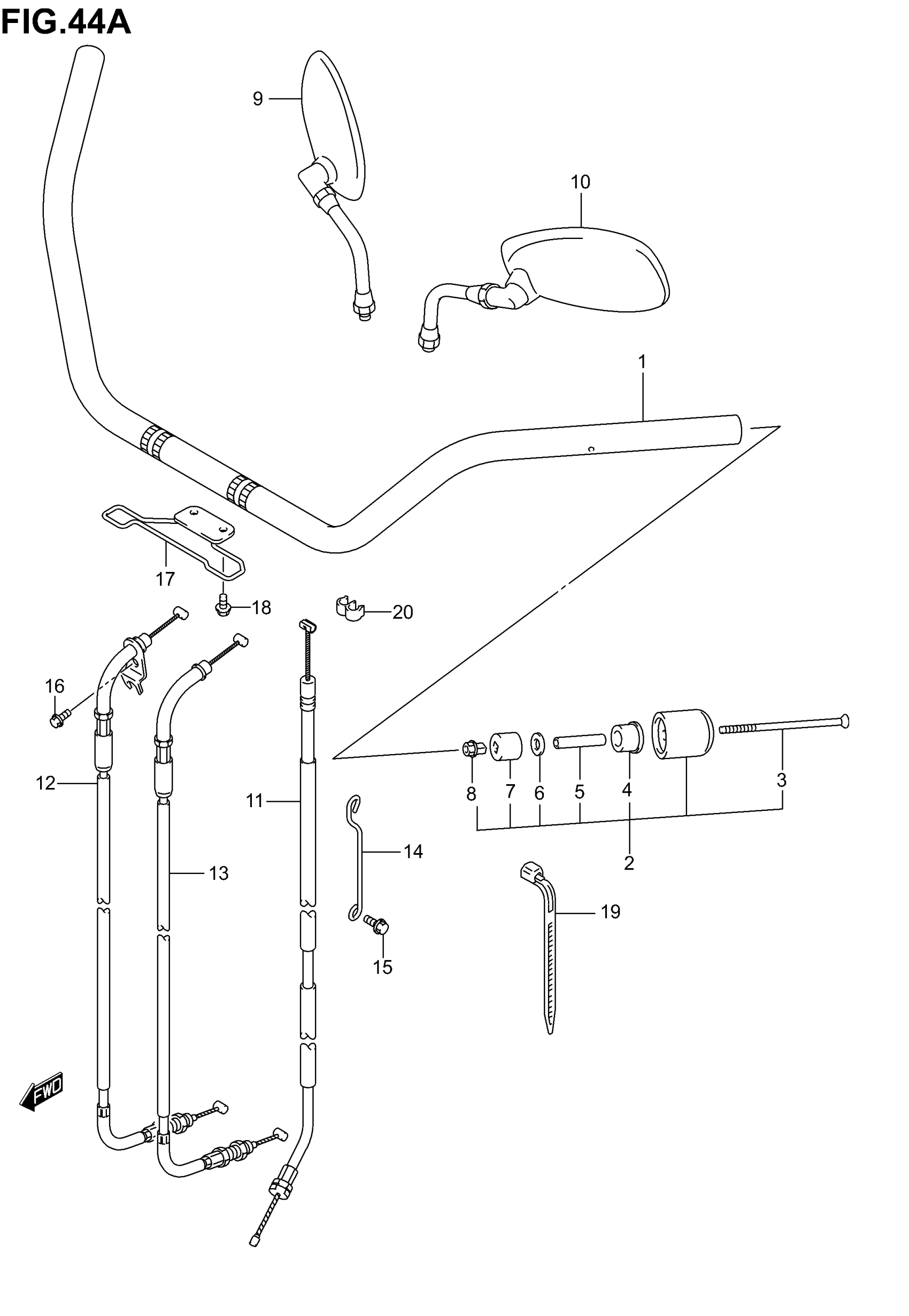

Suzuki VL800 (2005) HANDLEBAR (MODEL K5) Diagram
