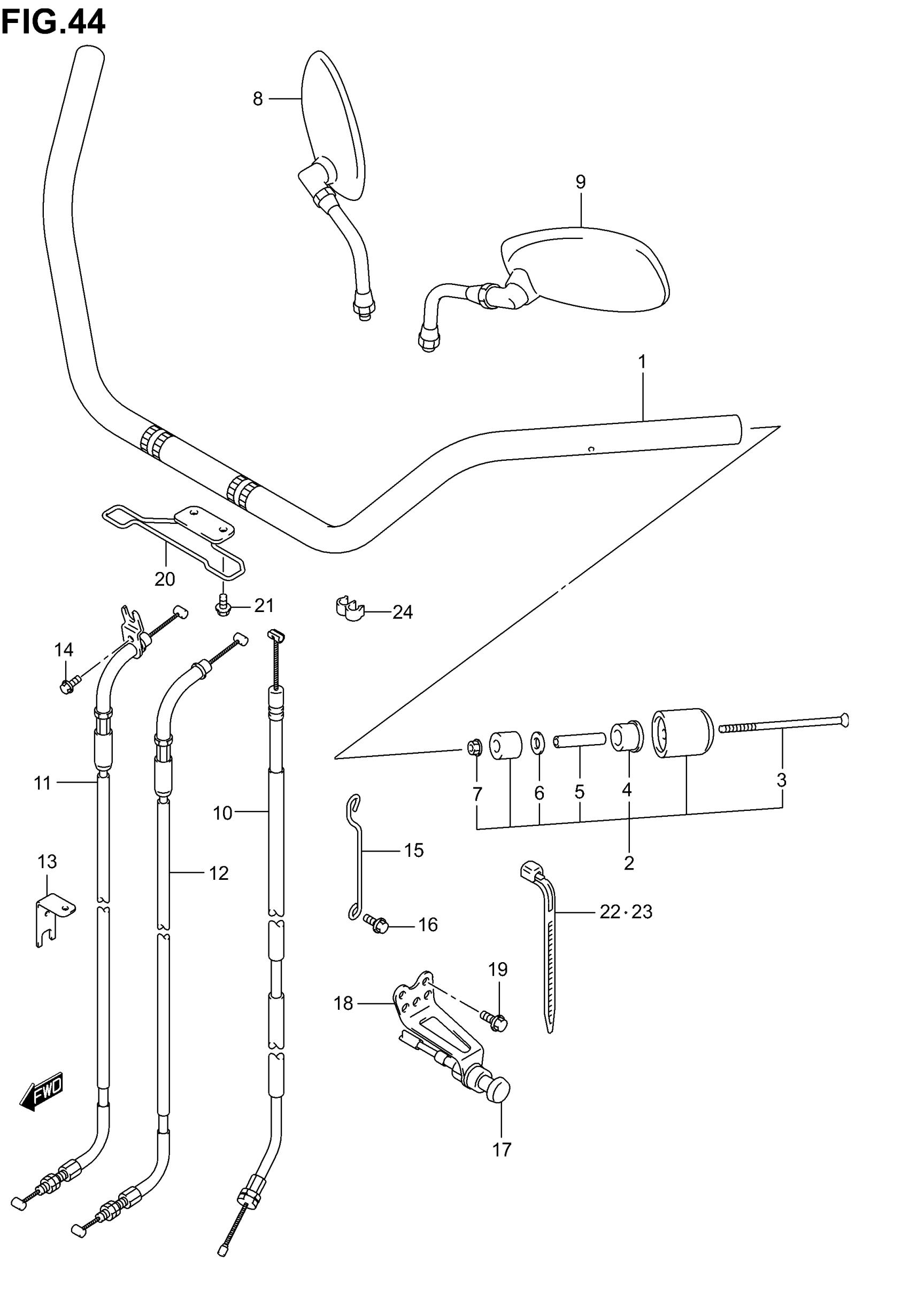

Suzuki VL800 (2005) HANDLEBAR (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

HANDLEBAR

56111-41F00

$300.80

2

BALANCER SET,HA | Includes Item(s) 3 - 7 This part replaces 56200-41810.

56200-41811

$75.62

3

SCREW

09127-06017

$2.78

4

EXPANDER, OUTER

56272-26D01

$7.25

5

SPACER

56276-09D01

Unavailable

6

WASHER

09160-06121

$3.38

7

NUT

09159-06024

$2.11

8

MIRROR ASSY, REAR VIEW RH This part replaces 56500-41F00.

56500-41F01

$84.38

9

MIRROR ASSY, REAR VIEW LH This part replaces 56600-41F00.

56600-41F01

$84.38

10

CABLE ASSY, CLUTCH

58200-41F10

$39.90

11

CABLE ASSY, THROTTLE

58300-41F00

$85.64

12

CABLE ASSY, THROTTLE NO.2

58300-41F10

$85.64

13

PLATE, THROTTLE CABLE

58623-41F00

Unavailable

14

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

15

GUIDE, THROTTLE CABLE | MODEL K1/K2 This part replaces 58626-41F00.

58626-41F01

$6.08

15

GUIDE, THROTTLE CABLE | MODEL K3/K4

58626-41F01

$6.08

16

SCREW, GUIDE

09139-05033

$2.20

17

CABLE ASSY, STARTER

58410-41F00

$39.81

18

BRACKET, CABLE

58491-41F00

Unavailable

19

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

20

GUIDE, CABLE

58620-41F00

Unavailable

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

22

CLAMP (L:190)

09407-19401

$3.05

23

CLAMP (L:235)

09407-25401

$4.66

24

CLIP

09408-00033

$2.83
