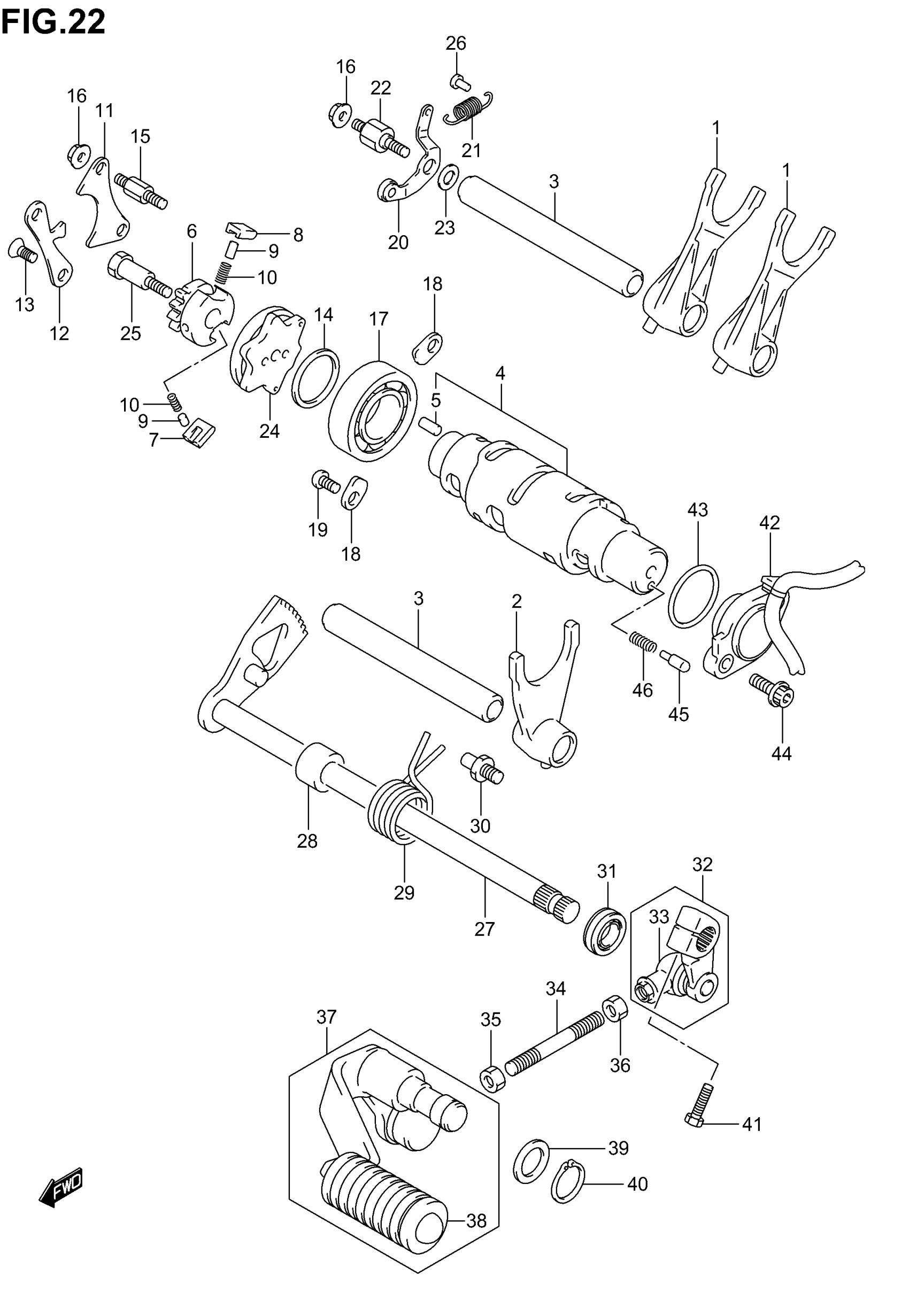

Suzuki VL800 (2005) GEAR SHIFTING (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-38A02

$42.53

2

FORK, GEAR SHIFTING NO.2

25221-38A01

Unavailable

3

SHAFT, GEAR SHIFTING FORK

25411-38A00

$33.02

4

CAM, GEAR SHIFTING | Includes Item(s) 5

25310-41F00

$295.57

5

PIN (4X13.8)

04221-04089

$1.10

6

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$30.40

7

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

8

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

9

PIN

09261-05003

$1.69

10

SPRING

09440-04003

$1.48

11

LIFTER, PAWL

25331-38A00

Unavailable

12

GUIDE, CAM

25341-38A00

Unavailable

13

SCREW (6X12)

09126-06011

$2.01

14

WASHER (25X32X3)

09160-25059

$7.20

15

BOSS, SHIFT PAWL LIFTER

25332-38A10

Unavailable

16

NUT This part replaces 08316-10063.

08316-1006B

$2.50

17

BEARING (25X47X8)

09262-25006

$23.05

18

RETAINER, BEARING

24741-21A00

$2.80

19

SCREW (6X12)

09125-06086

$3.00

20

STOPPER, CAM

25350-38A00

Unavailable

21

SPRING

09443-09027

$4.28

22

SUPPORT, CAM STOPPER

25355-38A10

Unavailable

23

WASHER

08211-06141

$1.61

24

PLATE, STOPPER

25380-38A02

Unavailable

25

PIN, SHIFT CAM

25312-38A00

$5.75

26

HOOK

09223-04001

$1.83

27

SHAFT, GEAR SHIFTING

25510-38A00

$121.05

28

SPACER (12X20X15.3)

09180-12068

$2.63

29

SPRING

09444-26013

$2.84

30

STOPPER, ARM

25671-01011

$4.09

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

32

ARM,GEAR SHIFT | Includes Item(s) 33 This part replaces 25520-04700.

25520-04701

Unavailable

33

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

34

ROD, GEAR SHIFT LINK

25525-22A10

$10.00

35

NUT, GEAR SHIFT

09140-06011

$1.37

36

.NUT

08310-00067

$1.83

37

LEVER ASSY,GEAR | Includes Item(s) 38 This part replaces 25600-41F00.

25600-41F01

$63.59

38

RUBBER

25652-38B00

$5.04

39

WASHER (14.5X22X1.6)

09160-14055

$2.40

40

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.89

41

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

42

BASE ASSY,GEAR This part replaces 37720-41F10.

37720-41F11

$94.05

43

O RING (D:2.4,ID:25.7)

09280-26007

$5.97

44

BOLT, GEAR SHIFT SW This part replaces 07120-05163.

07120-0516B

$2.62

45

CONTACT, SWITCH

09209-05011

$2.02

46

SPRING

09440-04010

$1.52
