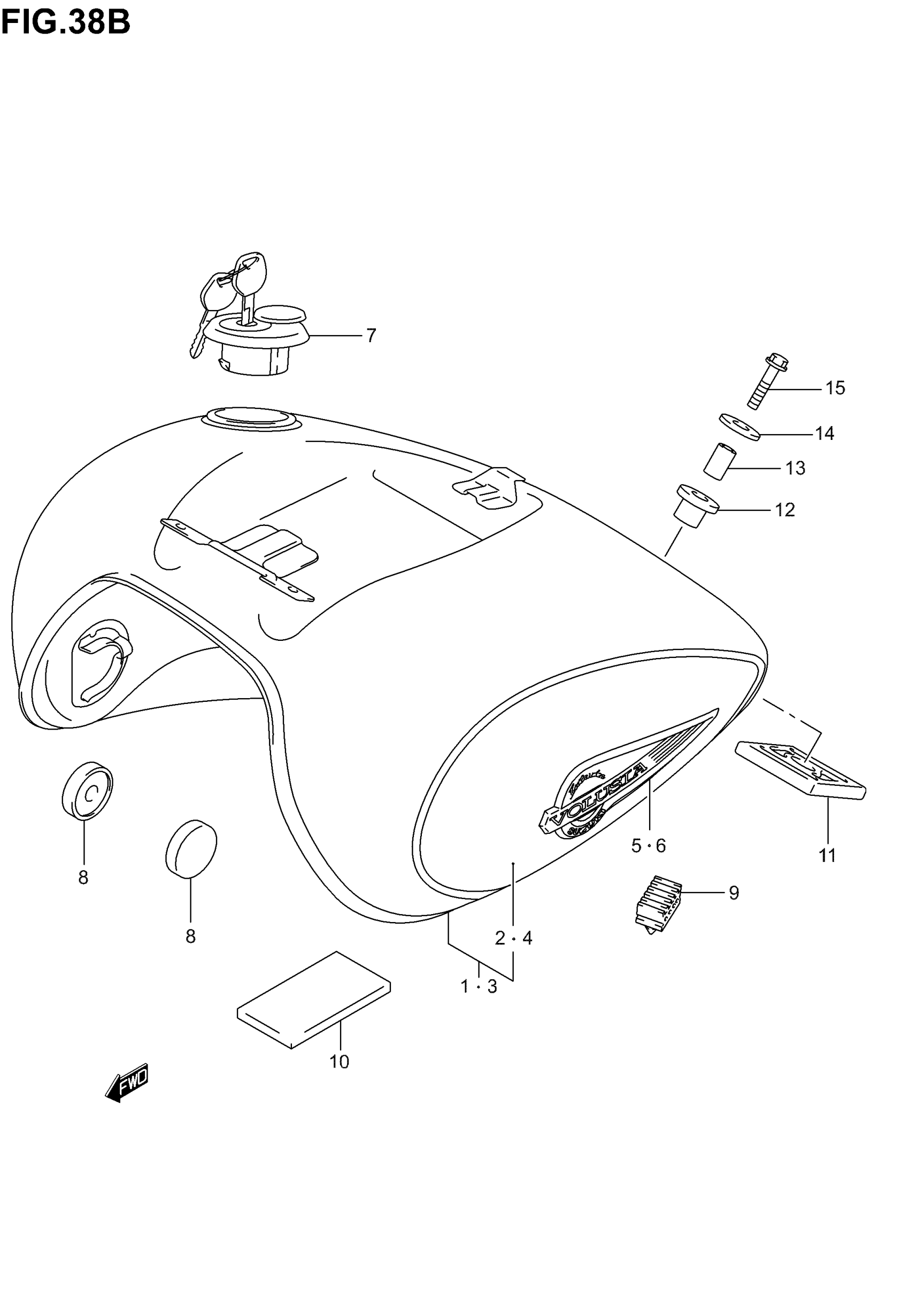

Suzuki VL800 (2005) FUEL TANK (MODEL K3) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3,E28

44100-41F70-33J

Unavailable

1

TANK ASSY, FUEL (WHITE) | VL800ZK3 E3,E28

44100-41F70-YC3

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

44100-41F80-33J

Unavailable

1

TANK ASSY, FUEL (WHITE) | VL800ZK3 E33; Includes Item(s) 2 - 2

44100-41F80-YC3

Unavailable

2

TAPE SET, FUEL TANK | FOR 33J

68110-41F10-LT2

Unavailable

2

TAPE SET, FUEL TANK | VL800ZK3

68110-41F10-ME4

Unavailable

3

TANK ASSY,FUEL | E3,E28 This part replaces 44100-41FA0-KT9.

44100-41F60-KT9

Unavailable

3

TANK ASSY,FUEL | E3,E28 This part replaces 44100-41FA0-KU1.

44100-41F60-KU1

Unavailable

3

TANK ASSY, FUEL | E33

44100-41FB0-KT9

Unavailable

3

TANK ASSY, FUEL | E33; Includes Item(s) 4 - 4

44100-41FB0-KU1

Unavailable

4

TAPE SET, FUEL TANK | FOR KT9

68110-41F20-LS9

Unavailable

4

TAPE SET, FUEL TANK | FOR KU1

68110-41F20-LT1

Unavailable

5

EMBLEM, RH

68111-41F10

$78.80

6

EMBLEM, LH

68121-41F10

$78.80

7

CAP SET,FUEL TA This part replaces 44200-41810.

44200-41812

$130.25

7

CAP SET,FUEL TA | E33 This part replaces 44200-41820.

44200-41821

Unavailable

8

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

9

CUSHION, SIDE

45149-31300

$3.56

10

CUSHION, INNER

44545-41F00

$8.12

11

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

12

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F00.

44541-41F02

$5.27

13

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

14

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

15

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$3.04
