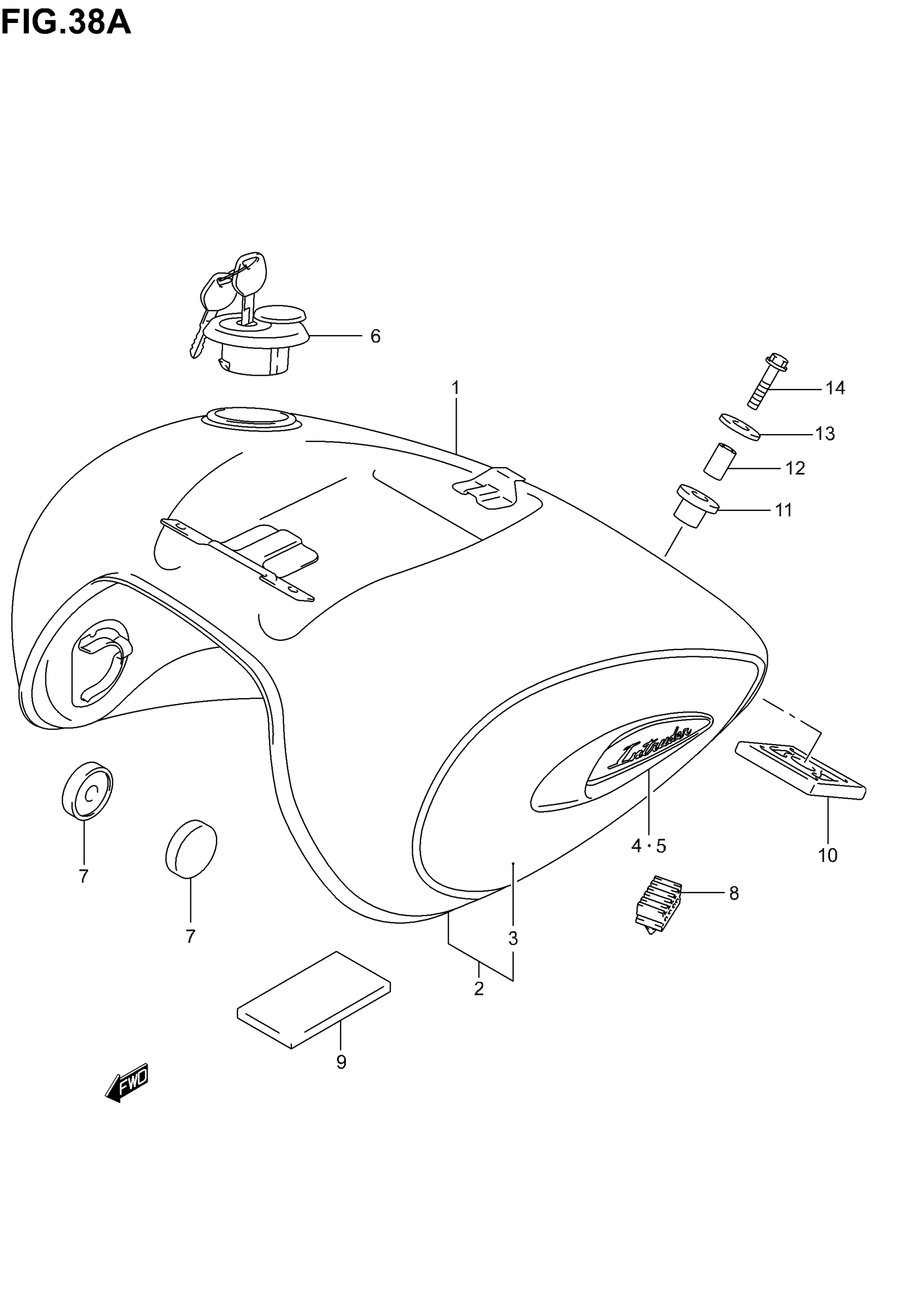

Find the part on the Fuel Tank diagram for your 2005 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki VL800 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL (BLACK) | E3,E28

44100-41F00-33J

1
Out of stock

1

TANK ASSY, FUEL (BLACK) | E33

44100-41F10-33J

—
Out of stock

2

TANK ASSY, FUEL | E3,E28

44100-41F30-FH9

1
Out of stock

2

TANK ASSY, FUEL | E3,E28

44100-41F30-HE6

1
Out of stock

2

TANK ASSY, FUEL | E33

44100-41F40-FH9

1
Out of stock

2

TANK ASSY, FUEL | E33; Includes Item(s) 3 - 3

44100-41F40-HE6

1
Out of stock

3

TAPE SET, FUEL TANK | FOR FH9

68110-41F01-HJ1

1
Out of stock

3

TAPE SET, FUEL TANK | FOR HE6

68110-41F01-HE6

1
Out of stock

4

EMBLEM, RH

68111-41F00

1
Out of stock

5

EMBLEM, LH

68121-41F00

1

$67.13

In stock

6

1

$167.33

In stock

6

CAP SET,FUEL TA | E33 This part replaces 44200-41820.

44200-41821

1
Out of stock

7

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

8

CUSHION, SIDE

45149-31300

2
Out of stock

9

CUSHION, INNER

44545-41F00

1

$9.17

In stock

10

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

1
Out of stock

11

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F00.

44541-41F02

1
Out of stock

12

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

1
Out of stock

13

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

1
Out of stock

14

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

1
Out of stock
