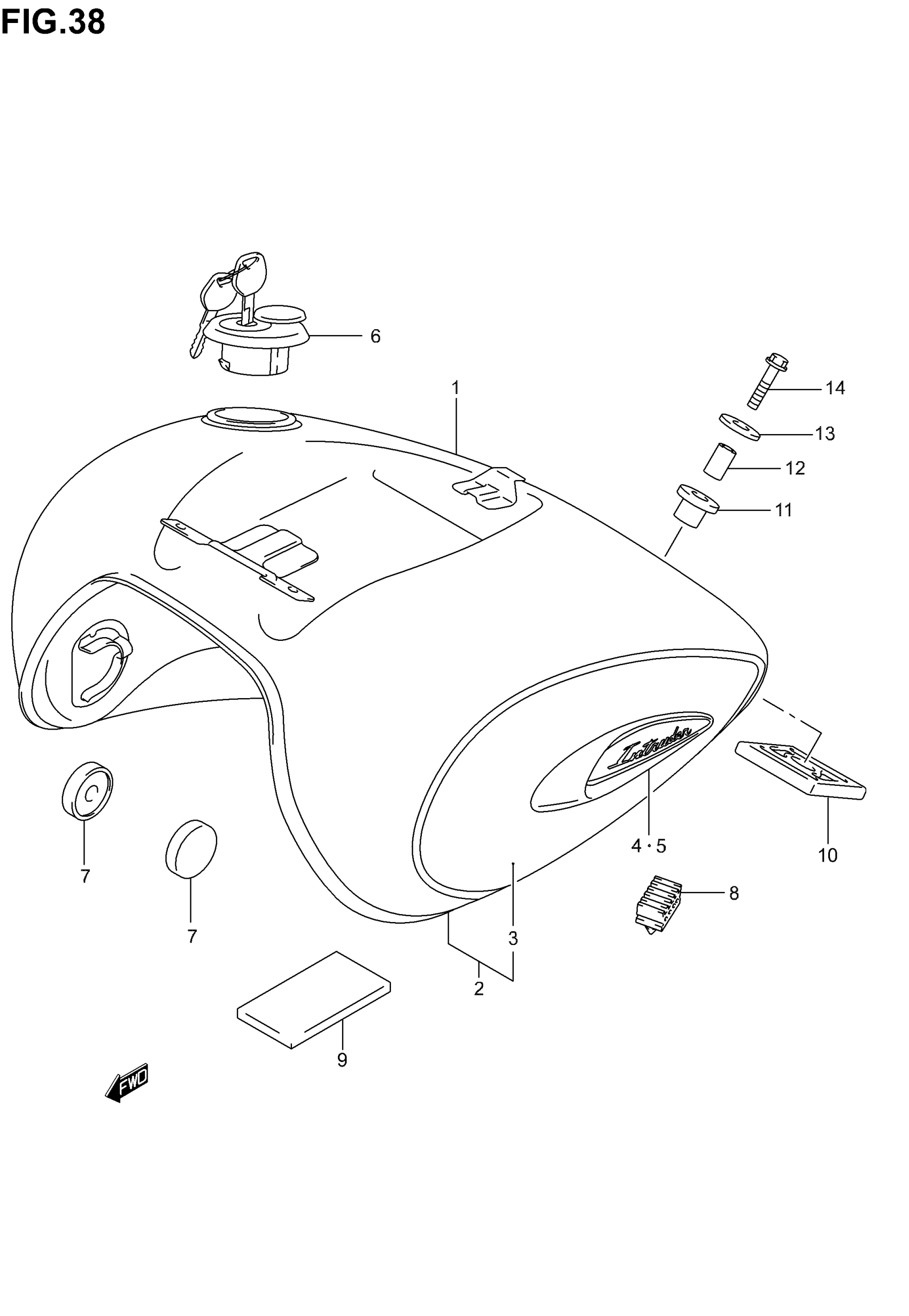

Suzuki VL800 (2005) FUEL TANK (MODEL K1) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3

44100-41F00-33J

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

44100-41F10-33J

Unavailable

2

TANK ASSY, FUEL | E3,E28

44100-41F30-FP3

Unavailable

2

TANK ASSY, FUEL | E3,E28

44100-41F30-FP4

Unavailable

2

TANK ASSY, FUEL | E3

44100-41F30-FP5

Unavailable

2

TANK ASSY, FUEL | E33

44100-41F40-FP3

Unavailable

2

TANK ASSY, FUEL | E33

44100-41F40-FP4

Unavailable

2

TANK ASSY, FUEL | E33; Includes Item(s) 3 - 3

44100-41F40-FP5

Unavailable

3

NO DESCRIPTION AVAILABLE | FOR FP3 This part replaces 68110-41F00-GC1.

68110-41F01-GC1

Unavailable

3

TAPE SET,FUEL T | FOR FP4 This part replaces 68110-41F00-GC2.

68110-41F01-GC2

Unavailable

3

TAPE SET, FUEL TANK | E3,E33 FOR FP5

68110-41F00-GC3

Unavailable

4

EMBLEM, RH

68111-41F00

Unavailable

5

EMBLEM, LH

68121-41F00

$59.48

6

CAP SET,FUEL TA This part replaces 44200-41810.

44200-41812

$130.25

6

CAP SET,FUEL TA | E33 This part replaces 44200-41820.

44200-41821

Unavailable

7

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

8

CUSHION, SIDE

45149-31300

$3.56

9

CUSHION, INNER

44545-41F00

$8.12

10

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

11

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F00.

44541-41F02

$5.27

12

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

13

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

14

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$3.04
