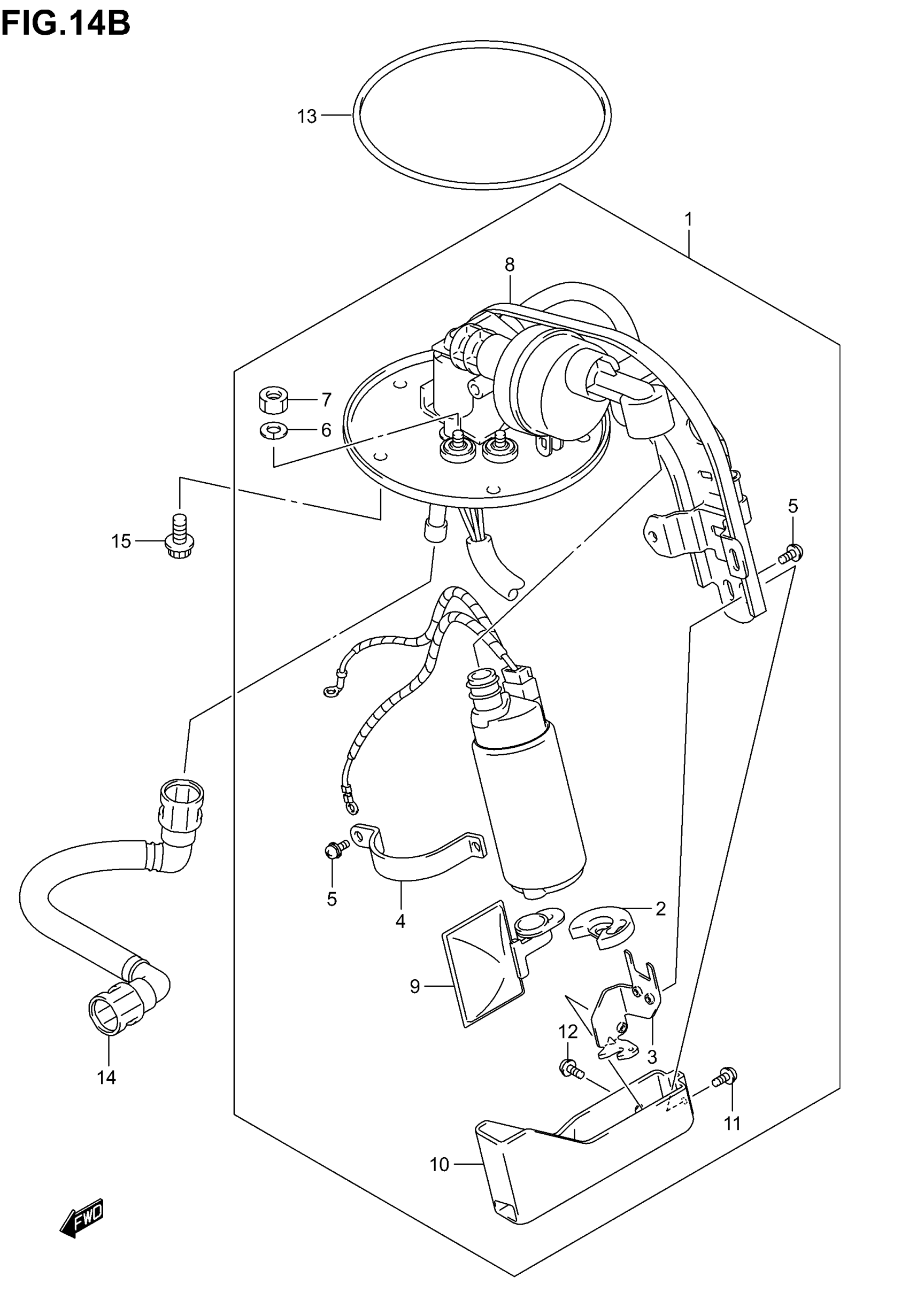

Suzuki VL800 (2005) FUEL PUMP (MODEL K5) Diagram

#

Description
Price

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 12

15100-41F10

$733.30

2

CUSHION

15111-41F10

$17.67

3

HOLDER

15112-41F10

Unavailable

4

BAND, FUEL PUMP

15115-10F00

Unavailable

5

SCREW

15116-10F10

Unavailable

6

SPRING WASHER

15172-35F00

$7.20

7

NUT

15173-35F00

Unavailable

8

PLATE ASSY

15410-41F10

Unavailable

9

STRAINER

15420-41F10

$100.92

10

VESSEL

15425-41F10

$34.93

11

SCREW

15429-41F10

Unavailable

12

SCREW

15429-41F20

Unavailable

13

O-RING

15201-35F00

$27.60

14

HOSE, FUEL

15810-41F00

$57.71

15

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04
