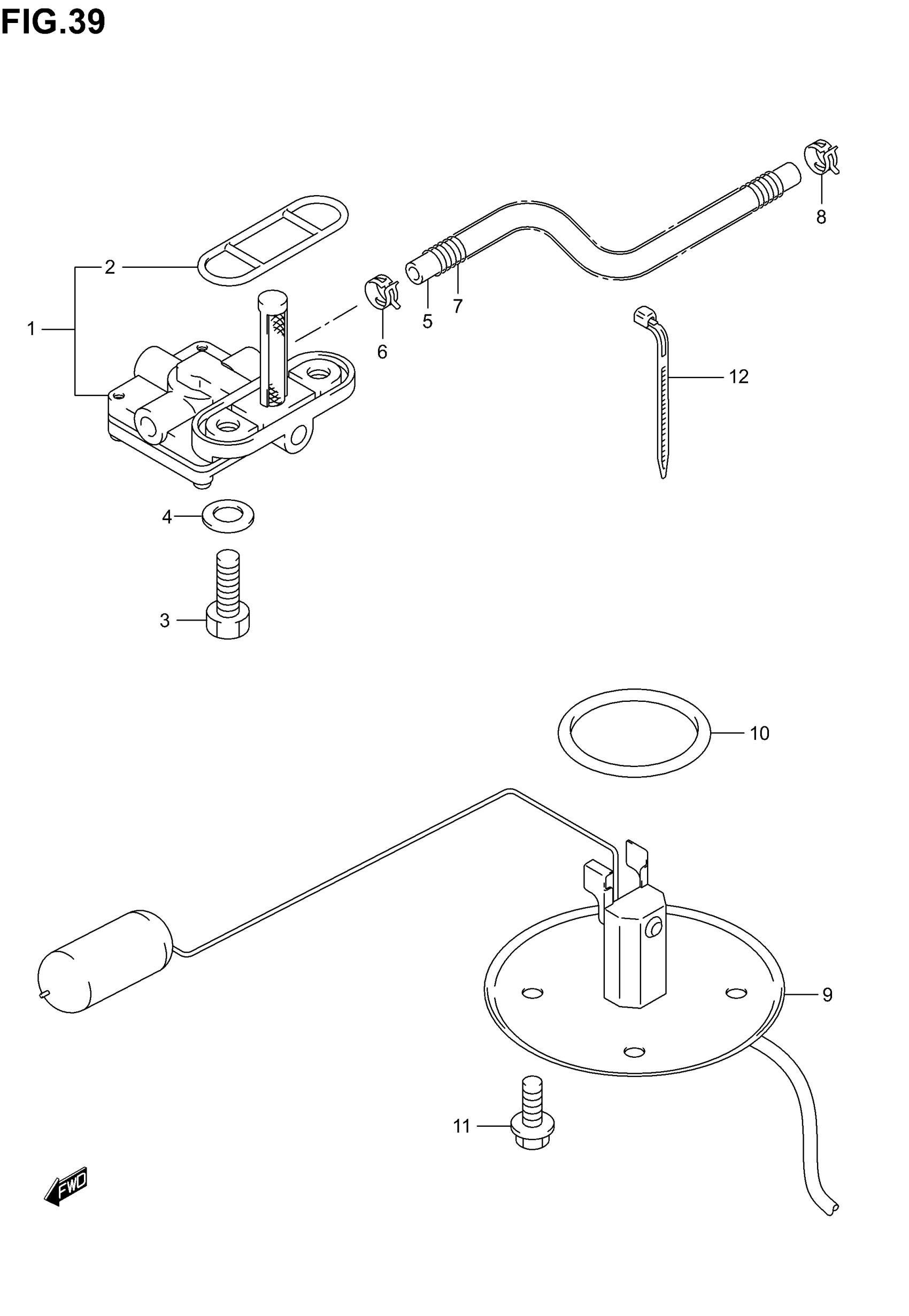

Suzuki VL800 (2005) FUEL COCK (MODEL K1/K2/K3/K4) Diagram

#

Description

Price

1

COCK ASSY,FUEL | Includes Item(s) 2 This part replaces 44300-41F00.

44300-41F01

$82.54

2

O RING,JOINT This part replaces 44351-33E00.

44351-33E01

$3.88

3

BOLT, FUEL COCK | MODEL K1 This part replaces 34826-03F00.

09128-06086

$2.50

3

BOLT, COCK | MODEL K2/K3/K4

09128-06086

$2.50

4

GASKET

09168-06026

$3.10

5

HOSE, FUEL (L:600!460)

09359-50101-600

$15.01

6

CLIP

09401-11413

$2.26

7

SPRING

09440-12037

$19.87

8

CLIP (ID:9.4,H:8)

09401-09403

$2.03

9

GAUGE ASSY,FUEL This part replaces 34810-41F00.

34810-41F01

$95.58

10

O RING

34825-31F00

$4.09

11

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

12

CLAMP

09404-06429

$1.83
