Description

Price

1

CYLINDER ASSY, FRONT MASTER | MODEL K1/K2/K3/K4

59600-10F10

Unavailable

1

CYLINDER ASSY, FRONT MASTER | MODEL K5; Includes Item(s) 2 - 9

59600-10F50

Unavailable

2

PISTON/CUP SET

59600-04810

$45.20

3

DIAPHRAGM

59667-49460

$9.78

4

CAP

59669-10F00

$71.45

5

SCREW

02122-04127

$1.97

6

HOLDER | MODEL K1/K2/K3/K4

59671-26D00

$66.63

6

HOLDER | MODEL K5

59671-38AA0

$44.18

7

BOLT

07130-06207

$3.04

8

PROTECTOR

59664-48B00

$11.02

9

PLATE

59668-41C00

$9.32

10

UNION This part replaces 09360-10042.

09360-10062

$6.43

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE This part replaces 59480-41F00.

59480-41F02

$71.87

13

CLAMP, BRAKE HOSE UPPER

59266-41F00

Unavailable

14

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

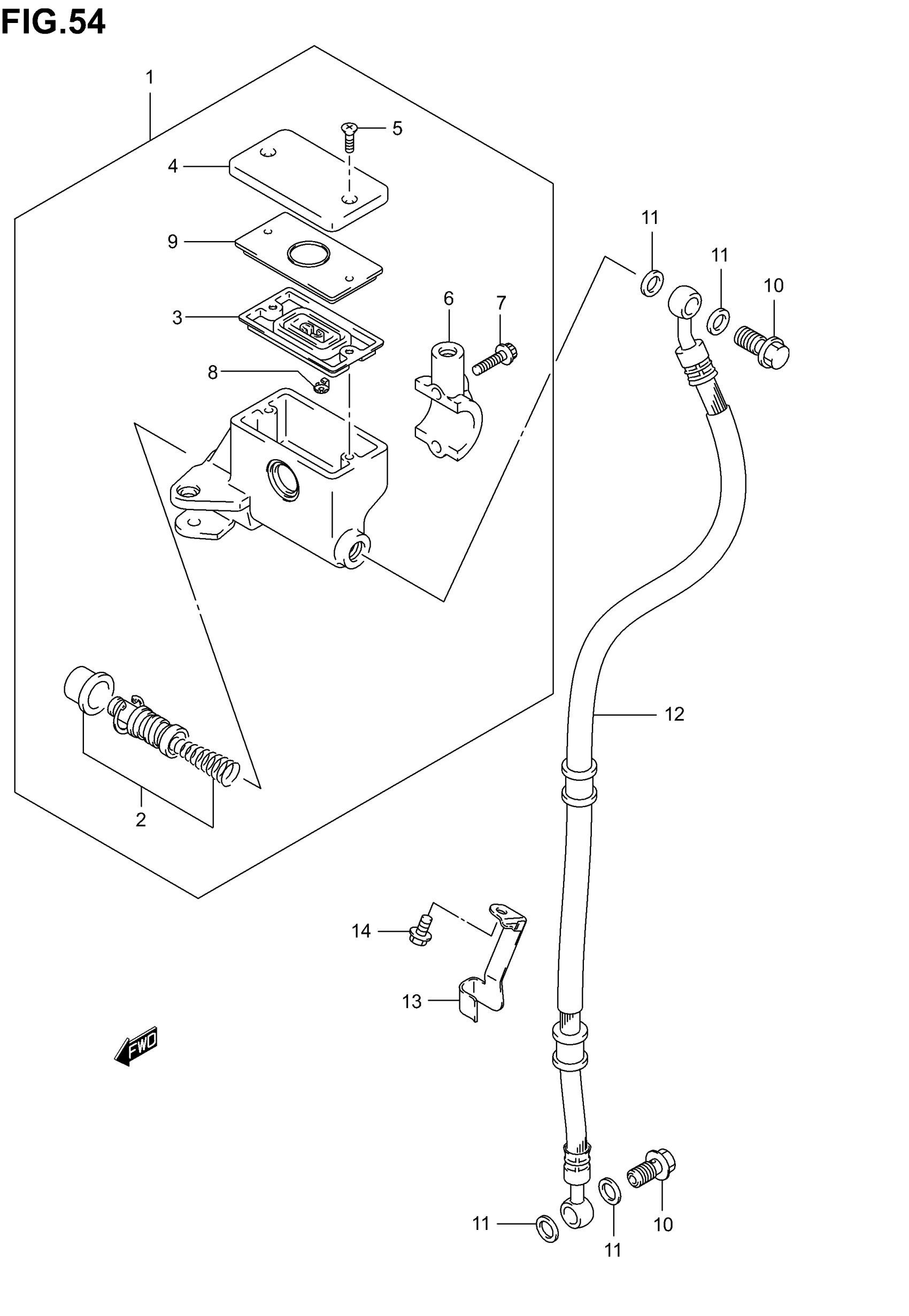

Suzuki VL800 (2005) FRONT MASTER CYLINDER Diagram

CYLINDER ASSY, FRONT MASTER | MODEL K1/K2/K3/K4

CYLINDER ASSY, FRONT MASTER | MODEL K5; Includes Item(s) 2 - 9

PISTON/CUP SET

DIAPHRAGM

CAP

SCREW

HOLDER | MODEL K1/K2/K3/K4

HOLDER | MODEL K5

BOLT

PROTECTOR

PLATE

UNION This part replaces 09360-10042.

WASHER (10X15X1.5)

HOSE This part replaces 59480-41F00.

CLAMP, BRAKE HOSE UPPER

BOLT, CLAMP This part replaces 01550-06123.
