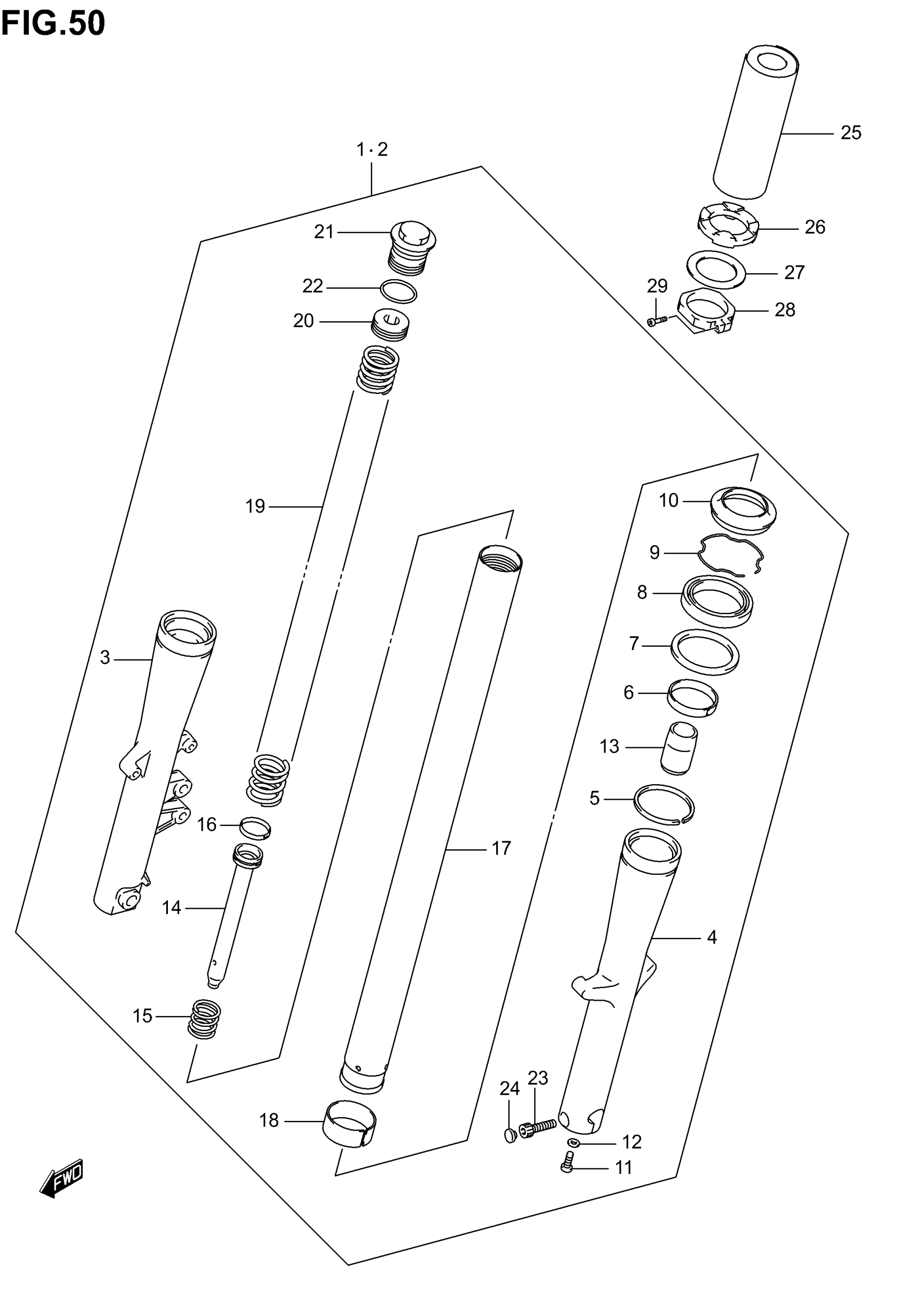

Suzuki VL800 (2005) FRONT DAMPER (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-41F20

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 23

51104-41F20

Unavailable

3

TUBE, OUTER RH

51131-41F20

$583.83

4

TUBE, OUTER LH

51141-41F20

$583.83

5

GUIDE, CASE

51469-41F21

$17.70

6

BUSH, GUIDE

51152-11D60

$14.26

7

SPACER, SEAL

51168-38B00

$6.49

8

SEAL, OIL

51153-08D00

$22.96

9

RING

51556-38B00

$7.22

10

SEAL, DUST

51571-47D50

$21.90

11

.BOLT, CENTER This part replaces 51147-42AA0.

51147-06F10

$5.98

12

GASKET

51148-36011

$3.56

13

PIECE, OIL LOCK

51195-10F00

$30.22

14

PIPE, SEAT

51146-10F00

Unavailable

15

SPRING, REBOUND

51177-10F00

Unavailable

16

RING

51196-47D00

$8.83

17

TUBE, INNER

51110-41F20

Unavailable

18

BUSH, SLIDE This part replaces 51121-10F00.

51121-42E00

$18.32

19

SPRING, FRONT

51171-41F20

Unavailable

20

BOLT, INNER

51353-10F00

Unavailable

21

BOLT, FORK

51351-41F20

Unavailable

22

O RING

51117-38B00

$3.43

23

BOLT, LH

07130-10357

$5.18

24

CAP

09250-08014

$2.85

25

CASE, UNDER This part replaces 51464-41F20.

51464-41F21

$169.35

26

SEAT, RUBBER

51468-10F00

$21.83

27

WASHER

51467-10F00

$12.65

28

SPACER

51465-41F20

$53.50

29

BOLT

51466-10F00

$7.53
