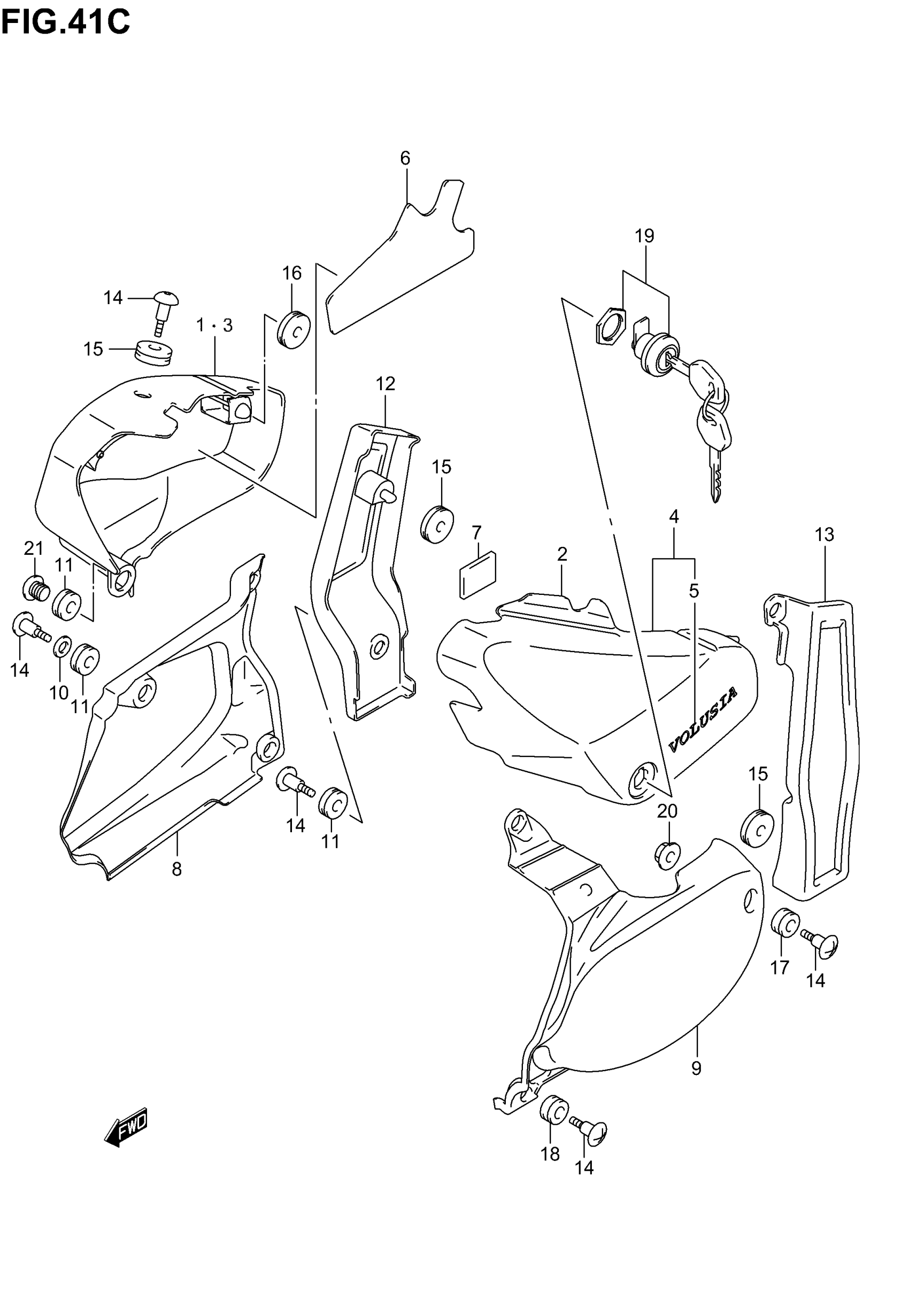

Suzuki VL800 (2005) FRAME COVER (MODEL K4) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | E3,E28 FOR YAY This part replaces 47110-41F30-YAY.

47110-41F31-YAY

Unavailable

1

COVER, FRAME RH (SILVER) | E3,E28 FOR AAV

47110-41F30-YV2

Unavailable

1

COVER, FRAME RH (BLUE) | E3,E28 FOR AAW

47110-41F30-YAR

Unavailable

1

COVER, FRAME RH (BLACK) | E33 FOR YAY

47110-41F40-YAY

Unavailable

1

COVER, FRAME RH (SILVER) | E33 FOR AAV

47110-41F40-YV2

Unavailable

1

COVER, FRAME RH (BLUE) | E33 FOR AAW

47110-41F40-YAR

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR YAY This part replaces 47211-41F00-YAY.

47211-41F01-YAY

Unavailable

2

COVER,SIDE,L | FOR AAV This part replaces 47211-41F00-YV2.

47211-41F01

$45.30

2

COVER,SIDE,L | FOR AAW This part replaces 47211-41F00-YAR.

47211-41F01

$45.30

3

COVER, FRAME RH (GRAY) | VL800ZK4 E3,E28

47110-41F00-YAU

Unavailable

3

COVER, FRAME RH (GRAY) | VL800ZK4 E33

47110-41F20-YAU

Unavailable

4

COVER,SIDE,L | VL800ZK4; Includes Item(s) 5 This part replaces 47210-41F00-YAU.

47211-41F01

$45.30

5

EMBLEM | VL800ZK4

68131-41F00-AVY

Unavailable

6

SHIELD, FRAME COVER RH

47166-41F00

$17.83

7

CUSHION, LH

93676-80020

$2.92

8

COVER, SIDE LOWER RH

47130-41F00

$267.82

9

COVER, SIDE LOWER LH

47231-41F00

$382.15

10

WASHER

09160-10123

$2.12

11

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

12

COVER, SIDE REAR RH (BLACK) This part replaces 47141-41F00-019.

47141-41F01-019

$137.92

13

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$137.92

14

SCREW

09139-06126

$4.04

15

CUSHION

09320-08018

$3.04

16

CUSHION BOX REAR

09320-08028

$3.04

17

CUSHION

09320-09501

$2.03

18

CUSHION This part replaces 09320-09026.

09320-09062

$2.00

19

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

20

NUT This part replaces 08316-10063.

08316-1006B

$2.50

21

CAP This part replaces 09250-09001.

09250-09008

$1.54
