Partiron

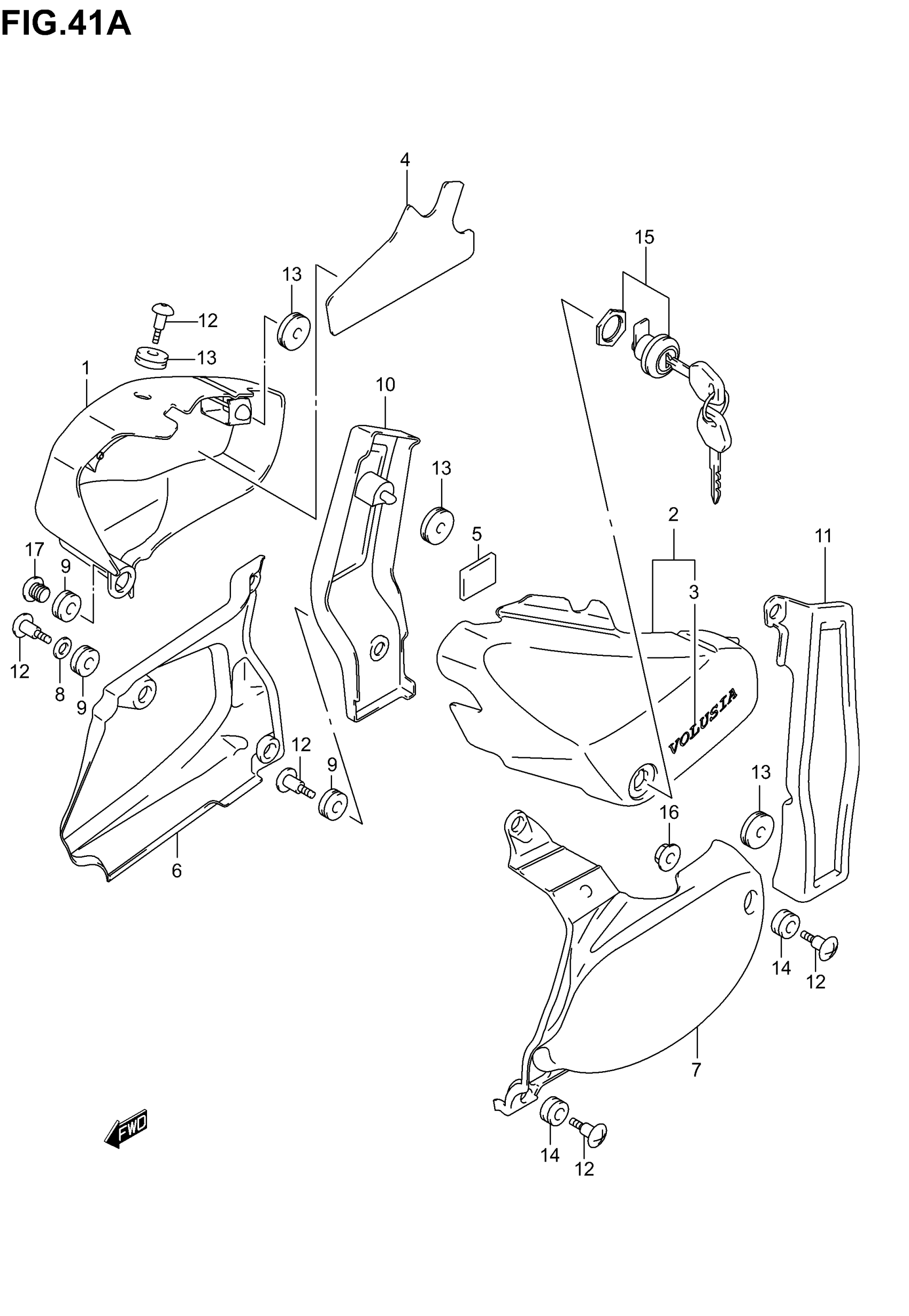

Suzuki VL800 (2005) FRAME COVER (MODEL K2) Diagram

#

Description
Price

1

COVER COMP,SIDE | E3,E28 FOR 33J,FH9 This part replaces 47110-41F00-33J.

47111-41F04-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | E3,E28 FOR HE6 This part replaces 47110-41F00-YM6.

47110-41F01-YM6

Unavailable

1

COVER, FRAME RH (BLACK) | E33 FOR 33J,FH9

47110-41F20-33J

Unavailable

1

COVER, FRAME RH (SILVER) | E33 FOR HE6

47110-41F20-YM6

Unavailable

2

COVER, FRAME LH (BLACK) | FOR 33J,FH9

47210-41F00-33J

$285.48

2

COVER,SIDE,L | FOR HE6; Includes Item(s) 3 - 3 This part replaces 47210-41F00-YM6.

47211-41F01

$45.30

3

EMBLEM | FOR 33J

68131-41F00-FW8

Unavailable

3

EMBLEM | FOR YM6

68131-41F00-HJ2

Unavailable

4

SHIELD, FRAME COVER RH

47166-41F00

$17.83

5

CUSHION, LH

93676-80020

$2.92

6

COVER, SIDE LOWER RH

47130-41F00

$267.82

7

COVER, SIDE LOWER LH

47231-41F00

$382.15

8

WASHER

09160-10123

$2.12

9

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

10

COVER, SIDE REAR RH (BLACK) This part replaces 47141-41F00-019.

47141-41F01-019

$137.92

11

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$137.92

12

SCREW This part replaces 09139-06087.

09139-06126

$4.04

13

CUSHION

09320-08018

$3.04

14

CUSHION

09320-09501

$2.03

15

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

16

NUT This part replaces 08316-10063.

08316-1006B

$2.50

17

CAP This part replaces 09250-09001.

09250-09008

$1.54
