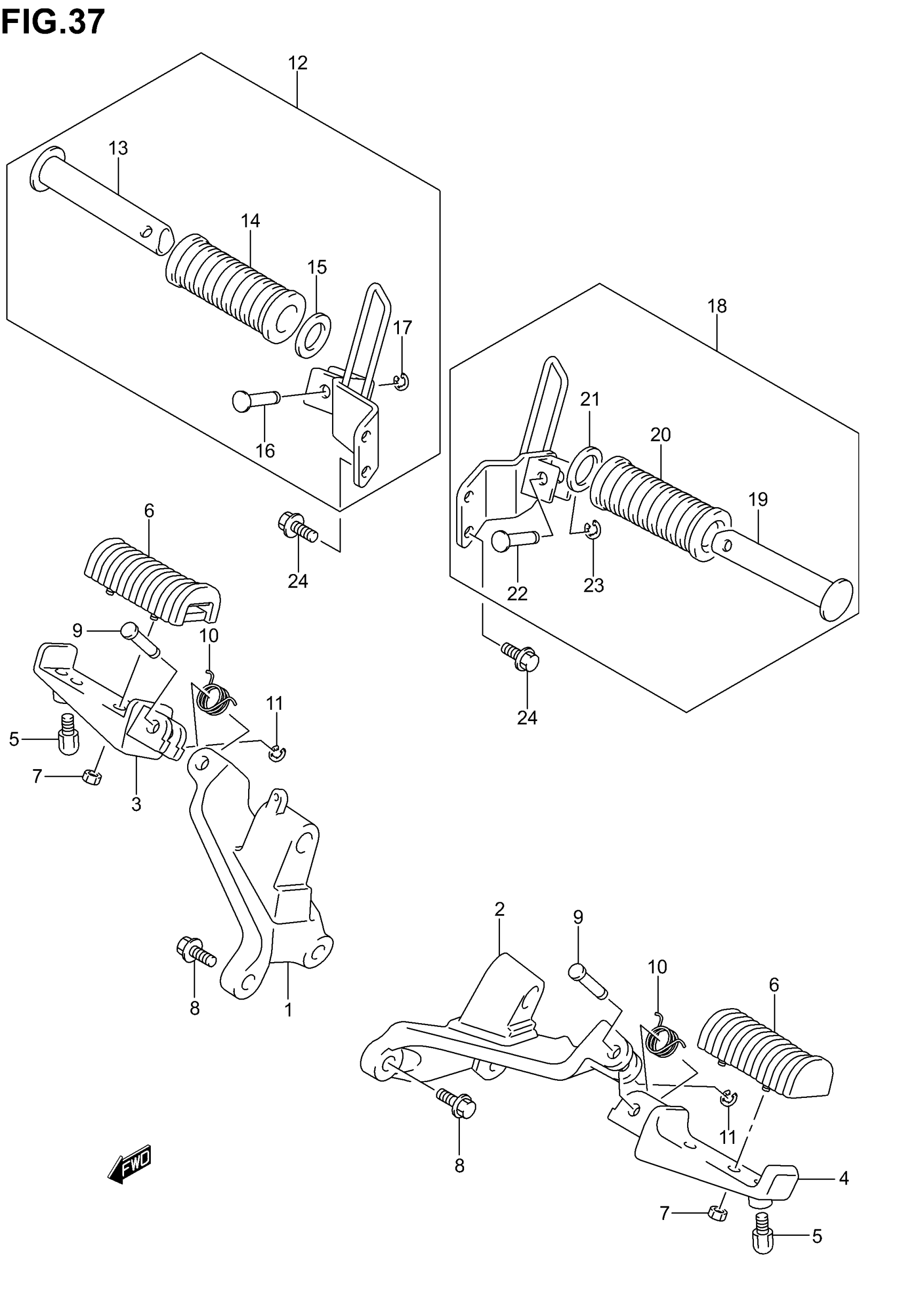

Suzuki VL800 (2005) FOOTREST (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43511-41F00

$179.97

2

BRACKET, FRONT FOOTREST LH This part replaces 43521-41F00.

43521-41F01

$186.82

3

BAR, FRONT RH This part replaces 43531-41F00.

43531-41F02

$52.78

4

BAR, FRONT LH This part replaces 43541-41F00.

43541-41F02

$51.15

5

.BOLT,BANK SENSOR

43576-07D01

$8.85

6

RUBBER, FRONT FOOTREST

43550-41F00

$26.68

7

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

8

BOLT (10X20) This part replaces 01550-10253.

01550-1025A

$3.05

9

PIN

09208-08010

$2.91

10

SPRING

09448-18022

$3.79

11

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

12

FOOTREST ASSY, PILLION RH | Includes Item(s) 13 - 17

43600-41F00

Unavailable

13

BAR

43610-03001

$6.52

14

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$5.83

15

WASHER

09160-19024

$2.65

16

PIN

43636-25D00

$10.65

17

E RING This part replaces 08332-11043.

08332-1104A

$1.49

18

FOOTREST ASSY, PILLION LH | Includes Item(s) 19 - 23

43700-41F00

Unavailable

19

BAR

43610-03001

$6.52

20

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$5.83

21

WASHER

09160-19024

$2.65

22

PIN

43636-25D00

$10.65

23

E RING This part replaces 08332-11043.

08332-1104A

$1.49

24

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32
