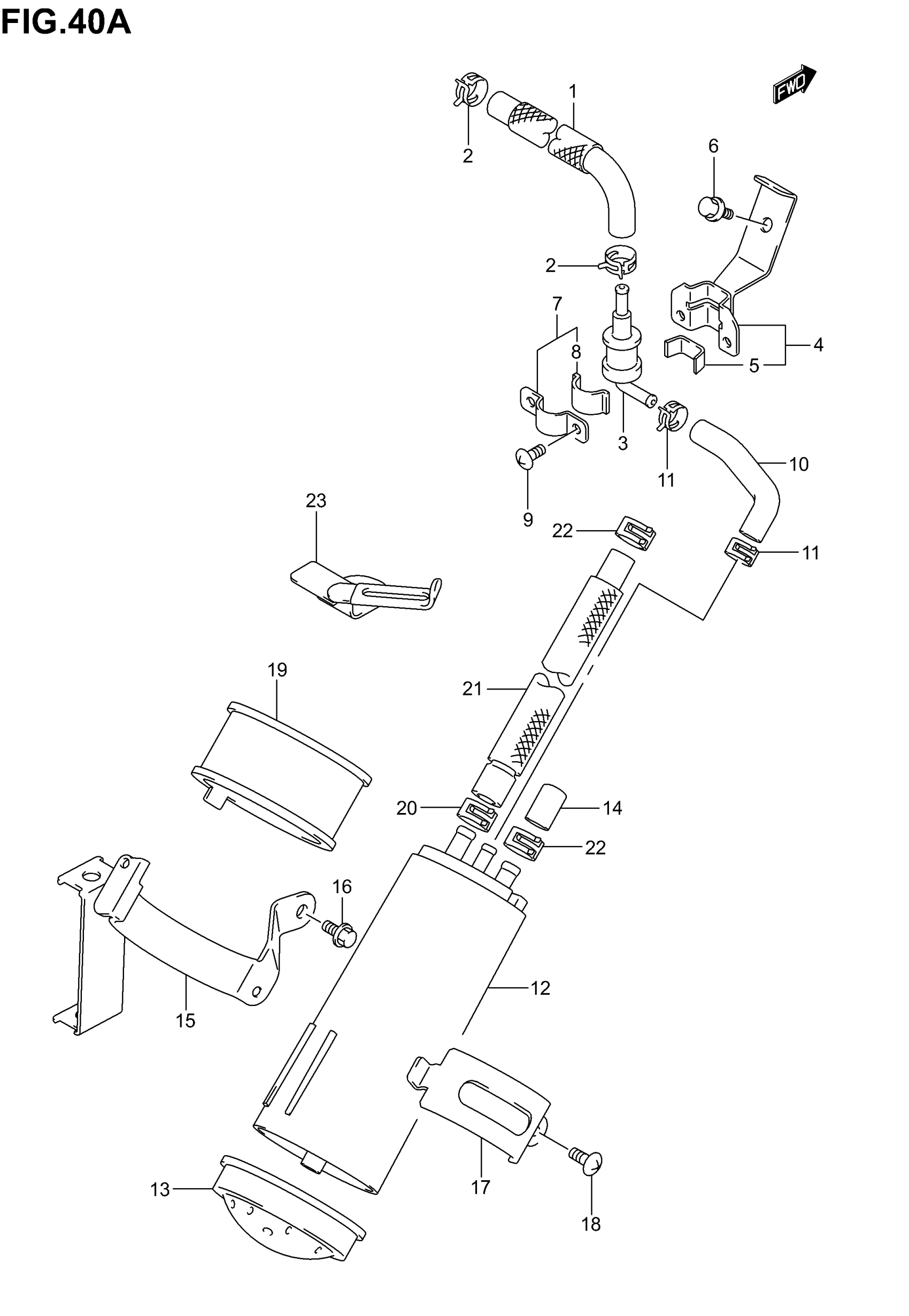

Suzuki VL800 (2005) EVAPO SYSTEM (MODEL K5 E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE UPPER

44434-41F20

Unavailable

2

CLIP

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

BRACKET, BREATHER VALVE | Includes Item(s) 5

44890-41F00

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

7

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 8

44892-24A00

$4.52

8

CUSHION (10X30X2)

44894-24A00

$1.72

9

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

10

HOSE, VALVE & CANISTER

44435-41F10

Unavailable

11

CLIP

09401-11413

$2.26

12

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

13

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

$19.52

14

CAP, PURGE

09251-07003

$2.53

15

BRACKET, CANISTER

44880-41F10

Unavailable

16

BOLT, BRACKET

09139-06108

Unavailable

17

HOLDER, CANISTER

44882-26E00

Unavailable

18

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

19

CUSHION CANISTER

44883-26E00

Unavailable

20

CLIP This part replaces 09401-11407.

09401-11415

$2.23

21

HOSE, THROTTLE BODY

44438-41F10

Unavailable

22

CLIP

09401-11413

$2.26

23

CLAMP, EVAPO HOSE

44480-41F00

Unavailable
