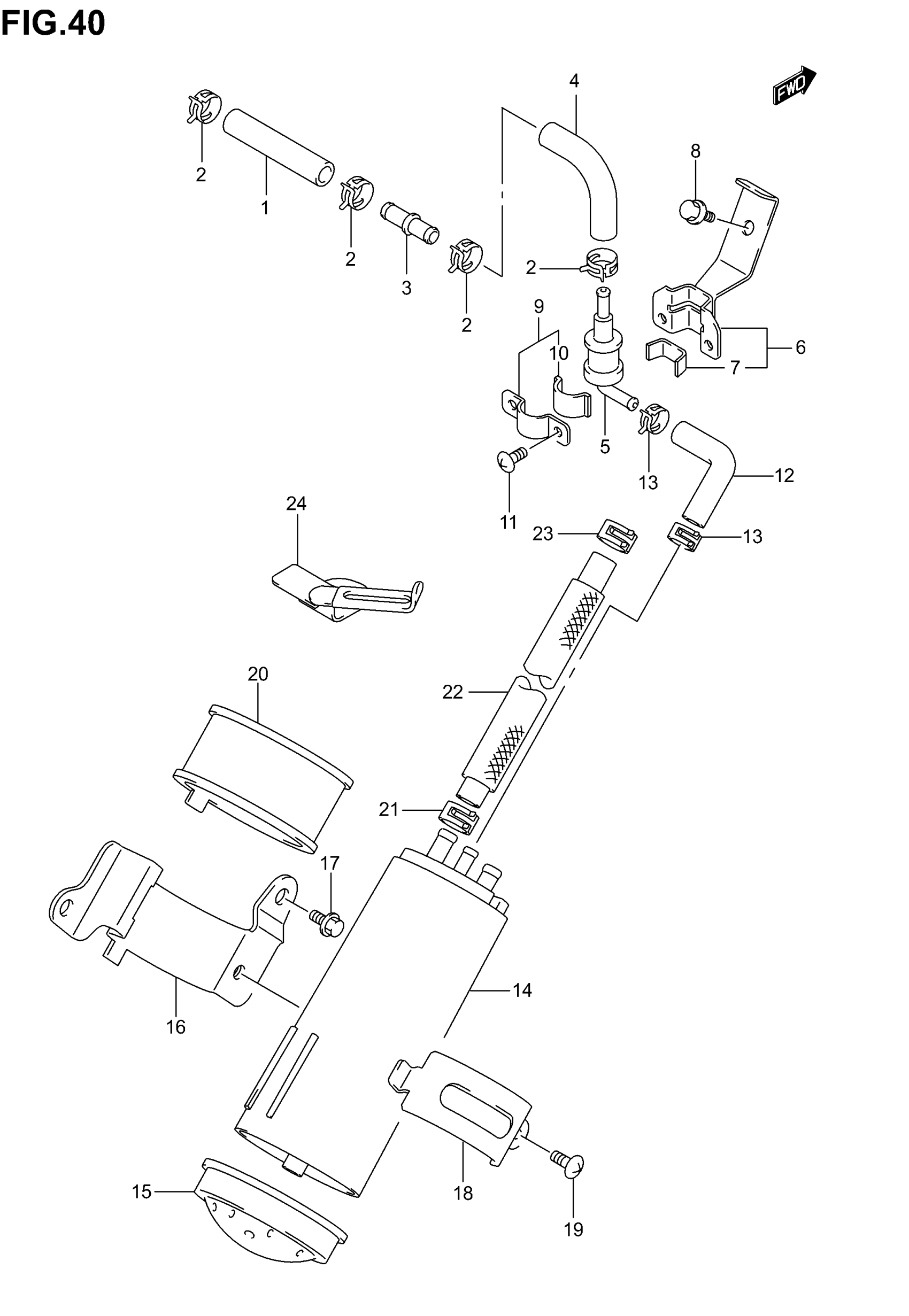

Suzuki VL800 (2005) EVAPO SYSTEM (MODEL K1/K2/K3/K4 E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE UPPER

44434-41F10

Unavailable

2

CLIP

09401-11413

$2.26

3

2 WAY

09367-06009

Unavailable

4

HOSE, TANK & VALVE This part replaces 44434-41F00.

44434-35F00

Unavailable

5

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

6

BRACKET, BREATHER VALVE | Includes Item(s) 7

44890-41F00

Unavailable

7

CUSHION (10X30X2)

44894-24A00

$1.72

8

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

9

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 10

44892-24A00

$4.52

10

CUSHION (10X30X2)

44894-24A00

$1.72

11

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

12

HOSE, VALVE & CANISTER

44435-41F00

Unavailable

13

CLIP

09401-11413

$2.26

14

CANISTER

17210-10F00

Unavailable

15

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

$19.52

16

BRACKET, CANISTER

44881-41F00

Unavailable

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

18

HOLDER, CANISTER

44882-26E00

Unavailable

19

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

20

CUSHION CANISTER

44883-26E00

Unavailable

21

CLIP This part replaces 09401-11407.

09401-11415

$2.23

22

HOSE, CARB (L:750)

44438-41F00

Unavailable

23

CLIP

09401-11413

$2.26

24

CLAMP, EVAPO HOSE

44480-41F00

Unavailable
