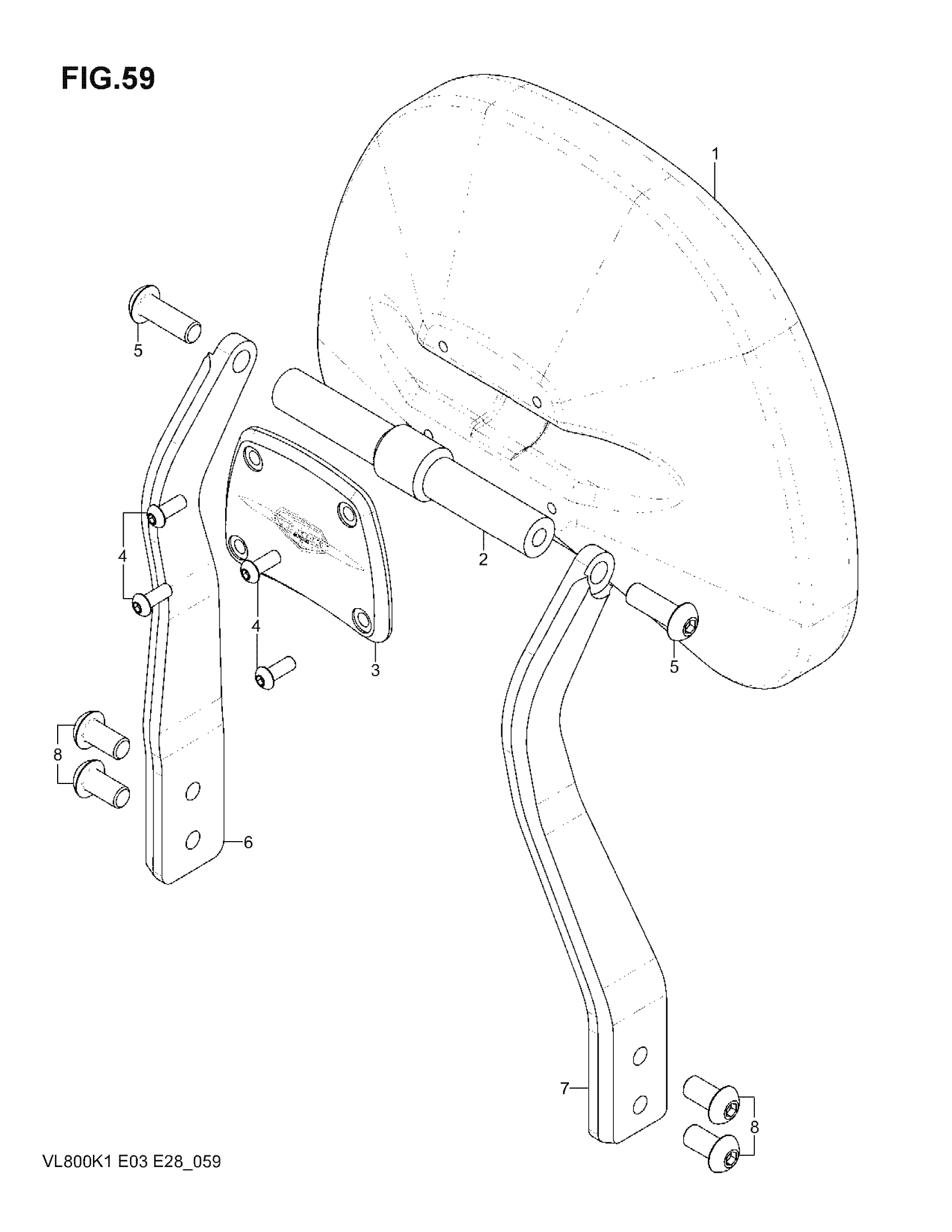

Suzuki VL800 (2005) BACKREST, MOUNTS, SADDLEBAGS C50T Diagram

#

Description
Price

BACKREST ASSY | Includes Item(s) 1 - 8 This part replaces 990A0-75039-TRG.

990A0-75059-TRG

Unavailable

1

PAD ASSY

990A0-75039-001

Unavailable

2

CROSSBAR

990A0-75039-002

Unavailable

3

BACK PLATE

990A0-75039-003

Unavailable

4

SCREW, M6x1.0x20

990A0-75039-004

$4.95

5

SCREW, M10x1.5x25

990A0-75039-005

$7.95

6

UPRIGHT, LH

990A0-75039-006

Unavailable

7

UPRIGHT, RH

990A0-75039-007

Unavailable

8

SCREW, M10x1.5x20

990A0-75012-001

Unavailable

9

BACKREST MOUNT PLATE, LH | NOT ILLUSTRATED

990A0-75010-001

Unavailable

10

BACKREST MOUNT PLATE, RH | NOT ILLUSTRATED

990A0-75010-002

Unavailable

11

SPACER, 19ODx8.5IDx6.5T | NOT ILLUSTRATED

990A0-75010-003

Unavailable

12

SADDLEBAG SUPPORT, LH | NOT ILLUSTRATED

990A0-75009-001

Unavailable

13

SADDLEBAG SUPPORT, RH | NOT ILLUSTRATED

990A0-75009-002

Unavailable

14

SADDLEBAG ASSY, LH | NOT ILLUSTRATED

990A0-77019-001

Unavailable

15

SADDLEBAG ASSY, RH | NOT ILLUSTRATED

990A0-77019-002

Unavailable

16

BOLT, M8x1.25x85 | NOT ILLUSTRATED

990A0-77019-003

$6.76

17

TOPHAT WASHER, SADDLEBAG | NOT ILLUSTRATED

990A0-77020-004

$7.95
