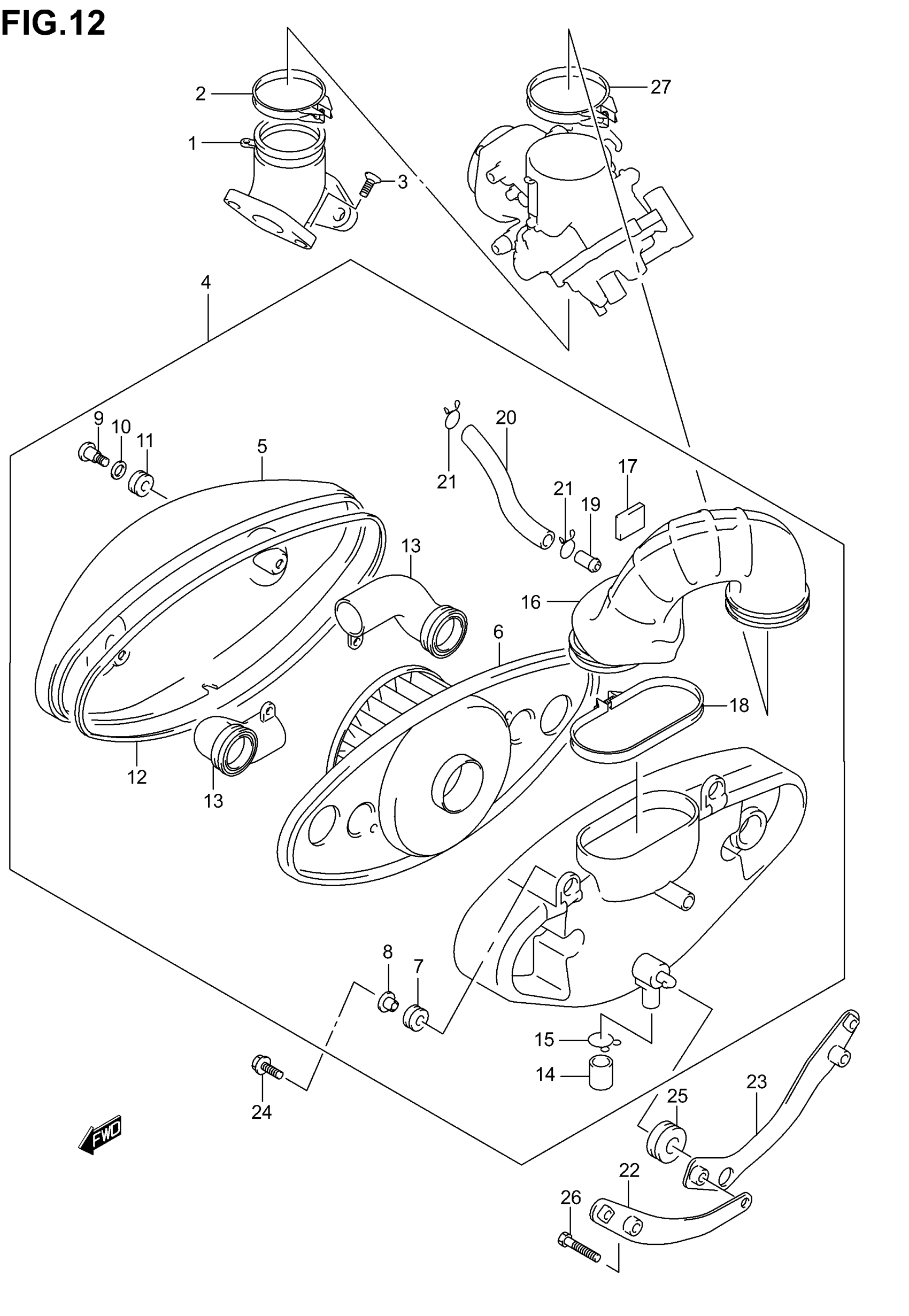

Suzuki VL800 (2005) AIR CLEANER (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

INTAKE PIPE

13101-41F00

$144.76

2

CLAMP

09402-52208

$5.36

3

SCREW

09120-06008

$3.05

4

CLEANER ASSY,AI | Includes Item(s) 5 - 21 This part replaces 13700-41F00.

13700-41F01

Unavailable

5

CAP, AIR CLEANER

13741-41F00

$258.32

6

FILTER ASSY

13780-41F00

$42.57

7

CUSHION

09320-09016

$1.97

8

COLLAR

13812-29C50

$2.70

9

SCREW This part replaces 09139-06087.

09139-06126

$4.04

10

WASHER

13833-41F00

$3.09

11

CUSHION

13747-41F00

$3.11

12

GASKET

13746-41F00

$13.97

13

TUBE INLET

13891-41F00

$20.38

14

.PLUG

13859-41B10

$7.38

15

CLIP

09401-14301

$2.35

16

TUBE, OUTLET

13881-41F00

Unavailable

17

CUSHION

13842-41F00

Unavailable

18

CLAMP

13826-41F00

$19.52

19

PIPE A, TUBE OUTLET

13858-41F00

$5.52

20

TUBE, BREATHER

13853-41F00

Unavailable

21

CLIP

09401-14301

$2.35

22

BRACKET, AIR CLEANER FR

13760-41F00

$16.63

23

BRACKET, AIR CLEANER RR

13770-41F00

Unavailable

24

BOLT

09139-06063

$4.00

25

CUSHION, AIR CLEANER

09320-08018

$3.04

26

BOLT, GEAR SHIFT ARM This part replaces 01500-06253.

01500-0625A

$1.78

27

CLAMP

09402-66208

$5.57
