Description

Price

1-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

1-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

1-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47

2

WHEEL, REAR (16M/CXMT5.50)

64111-06J10-20H

$852.85

2

(SILVER)

64111-06J10-20H

$852.85

3

SPACER, REAR WHEEL BEARING

64731-40H00

$41.63

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

BUSH

09319-12019

$13.11

6

BEARING (25X52X15) | RH This part replaces 09262-25167.

09262-25191

$24.28

7

BEARING (25X52X15) | LH

08143-62057

$24.40

8

VALVE ASSY, WHEEL RIM (PVR100

43130-39H00

$58.65

9

TIRE, REAR (200/60R16M/C 79H) | G852 RADIAL G

65110-06J00

Unavailable

9

TIRE | BRIDGESTONE

65110-06J00

Unavailable

10

AXLE, REAR

64711-48G00

$217.48

11

SPACER, REAR AXLE RH

64741-48G00

$26.48

12

SPACER, REAR AXLE LH

64772-48G00

$40.22

13

NUT

09159-22007

$19.20

14

WASHER (22X35X2)

09160-22081

$3.04

15

WASHER, THRUST

64677-48G10

$7.42

16

WASHER, REAR HUB DRIVEN JOINT

64679-48G00

$6.28

17

JOINT ASSY, REAR HUB DRIVEN

64680-48G00

$382.13

18

BOLT (6X16)

09119-06049

$1.56

19

O RING (D:2.4,ID:79.8)

09280-80001

$3.89

20

DISC, REAR BRAKE

69210-10F40

$431.67

21

BOLT (8X21)

09106-08160

$3.57

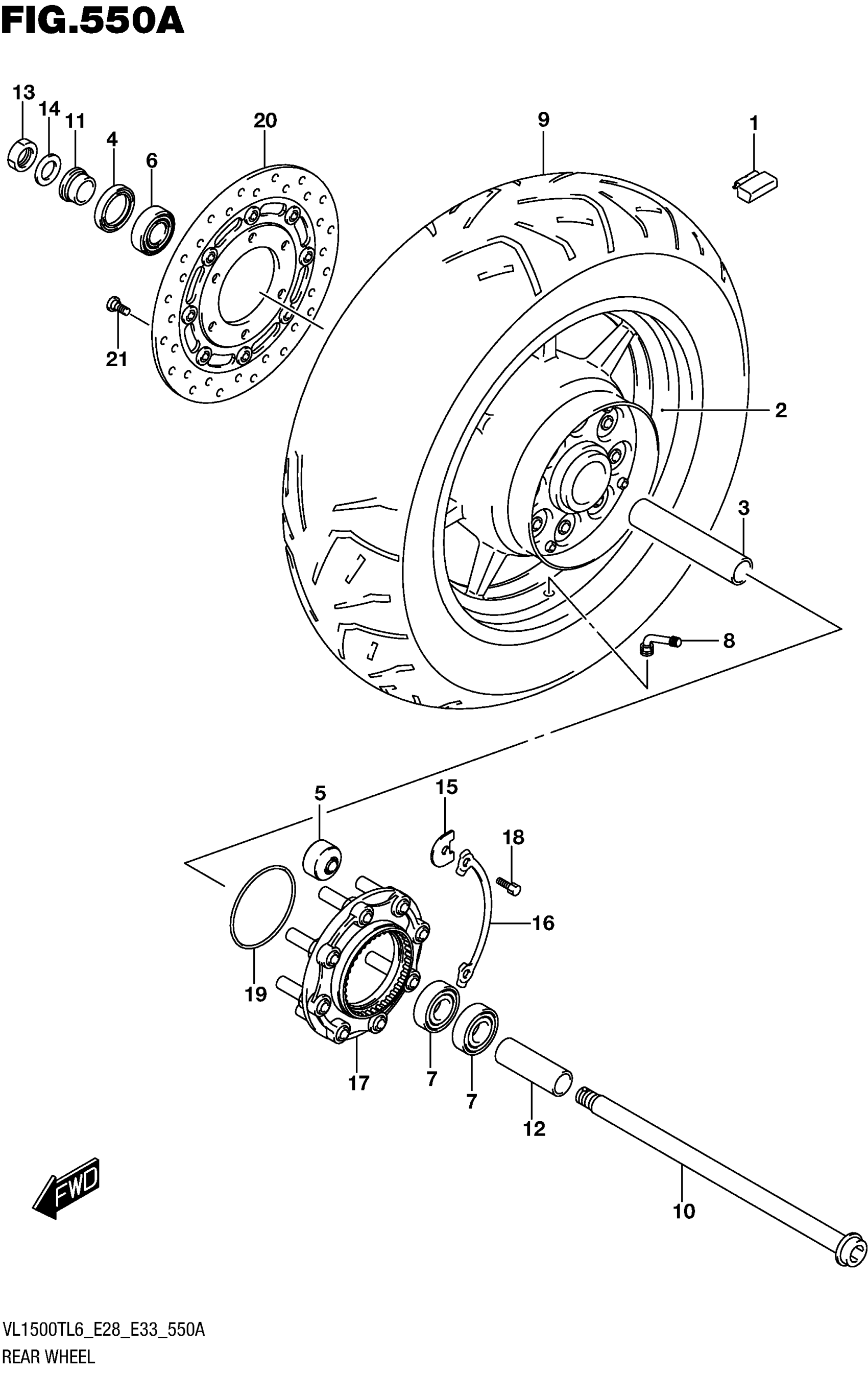

Suzuki VL1500TL6 (2016) REAR WHEEL Diagram
