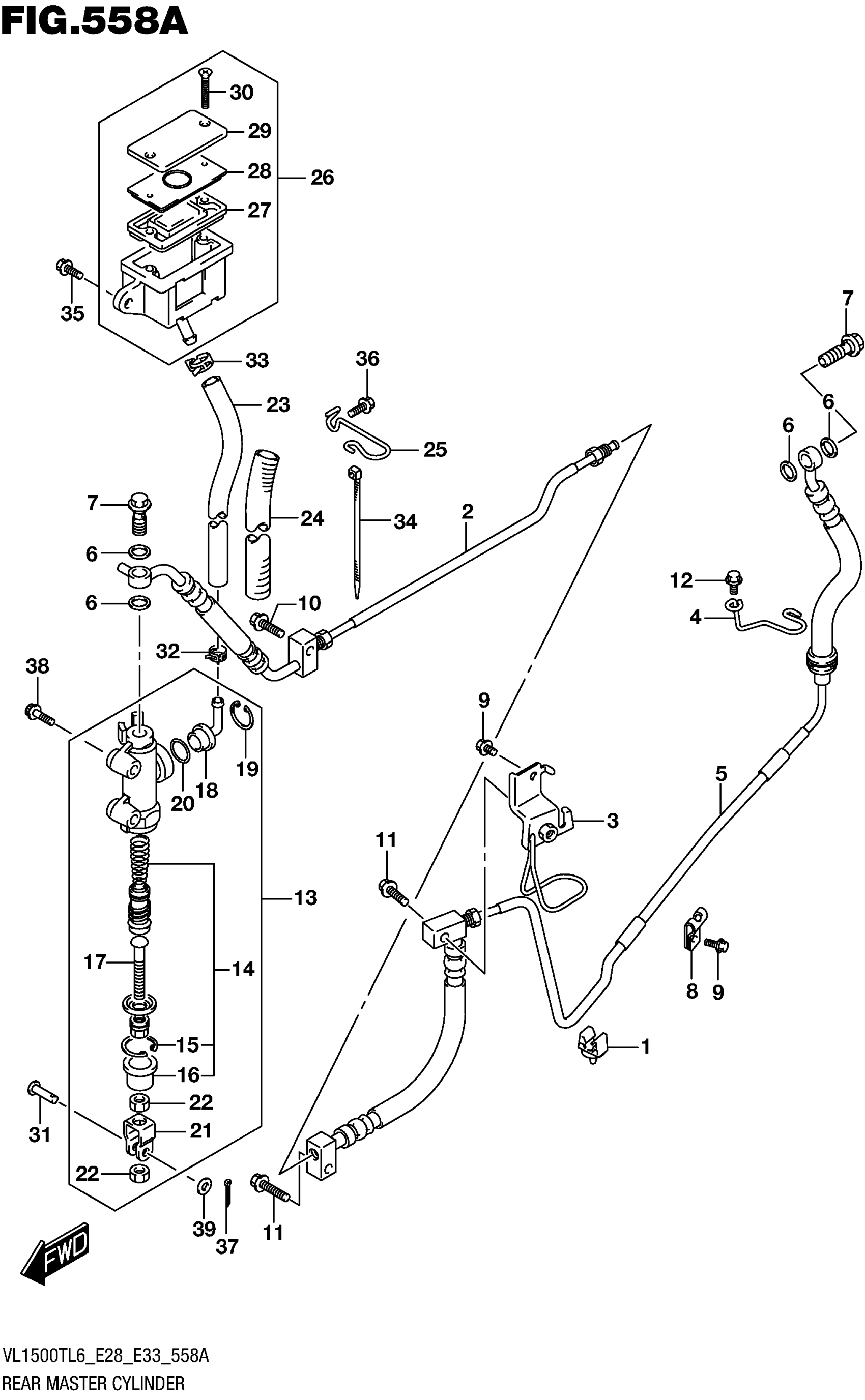

Suzuki VL1500TL6 (2016) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP, REAR BRAKE PIPE

51761-79J00

Unavailable

2

HOSE ASSY, REAR BRAKE NO.1

69200-40H00

Unavailable

3

CLAMP, REAR BRAKE HOSE

69260-40H10

Unavailable

4

GUIDE, REAR BRAKE HOSE

69278-40H10

Unavailable

5

HOSE This part replaces 69400-40H00.

69400-40H01

$209.35

6

WASHER (10X15X1.5)

09161-10009

$1.84

7

UNION

09360-10062

$6.43

8

CLAMP

09403-07401

Unavailable

9

BOLT

01547-0612A

$2.03

10

BOLT

01547-0620A

$2.03

11

BOLT

01547-0625A

$2.01

12

BOLT

01550-0612A

$1.97

13

CYLINDER ASSY, REAR MASTER

69600-48G10

Unavailable

14

.PISTON/CUP SET

69600-40811

$52.25

15

..CIRCLIP

69665-47H00

$5.02

16

.BOOT

69691-00A00

$5.30

17

.ROD, PUSH

69670-44B00

Unavailable

18

.CONNECTOR

69672-00B20

$7.01

19

.CIRCLIP

69674-00B20

$3.97

20

.O RING

69686-34200

$2.93

21

.YOKE

69692-19A00

$16.87

22

.NUT

69693-05A00

$1.96

23

HOSE, REAR RESERVOIR TANK

69730-40H00

Unavailable

24

HEATSHIELD, RESERVER TANK HOS

69732-40H00

Unavailable

25

GUIDE, RESERVER TANK HOSE

69738-40H10

Unavailable

26

TANK ASSY, REAR RESERVOR

69740-40H10

Unavailable

27

.DIAPHRAGM

59667-49460

$9.78

28

.PLATE, DIAPHRAGM

59668-41C00

$9.32

29

.CAP

59669-10G10

Unavailable

30

.SCREW

69689-40H00

Unavailable

31

PIN (6X18.2)

09200-06068

$4.11

32

CLIP

09401-12404

$2.34

33

CLIP

09401-13417

$2.26

34

CLAMP (L:145)

09407-14407

$3.57

35

BOLT

01547-0616A

$2.03

36

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

37

COTTER PIN

04111-2015A

$1.49

38

BOLT

07120-0625A

$2.50

39

WASHER

08322-0106A

$1.84
