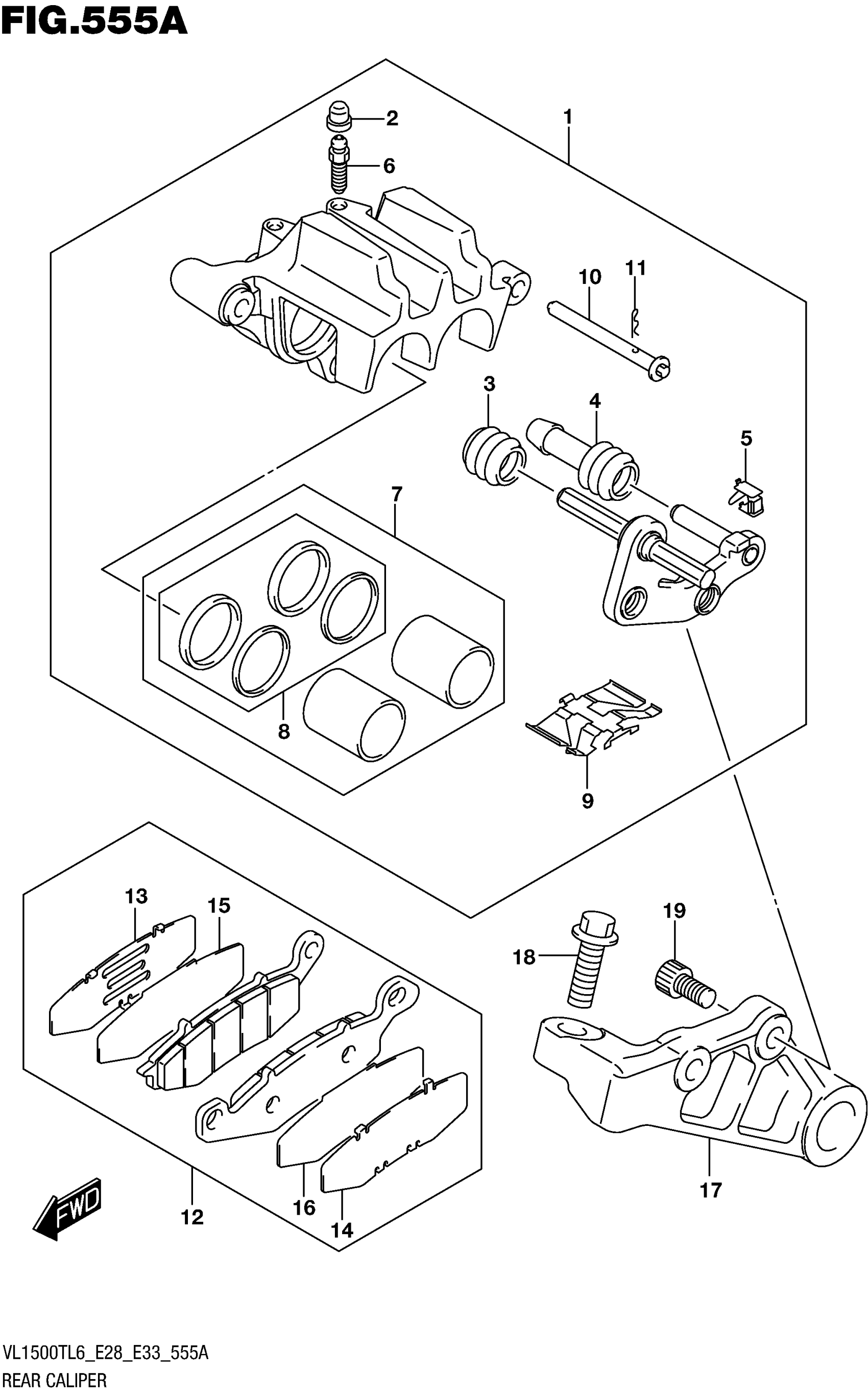

Suzuki VL1500TL6 (2016) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-01DB0-999

Unavailable

2

.CAP, BLEEDER PLUG

55156-66310

$5.17

3

.BOOT, AXLE

59112-44B00

$8.91

4

.INSULATOR, AXLE

59113-01D00

$10.17

5

.GUIDE, PAD

59116-33D00

$7.97

6

.BLEEDER

59121-18410

$8.73

7

.PISTON SET

69100-01840

$124.75

8

..SEAL SET, PISTON

59300-33841

$15.45

9

.SPRING, PAD

69115-01D40

$18.35

10

.PIN, PAD

69141-01D40

$12.48

11

.CLIP, PAD PIN

69142-45000

$4.34

12

PAD SET

69101-01810

$95.03

13

.SHIM, PAD

59171-33D00

$14.85

14

.SHIM, PAD NO.2

59172-33D00

$16.78

15

.INSULATOR NO.1

69171-01D40

Unavailable

16

.INSULATOR NO.2

69172-01D40

$25.92

17

BRACKET, REAR CALIPER

69721-48G30

Unavailable

18

BOLT (12X40)

09103-12109

$5.28

19

BOLT (10X20)

09106-10062

Unavailable
