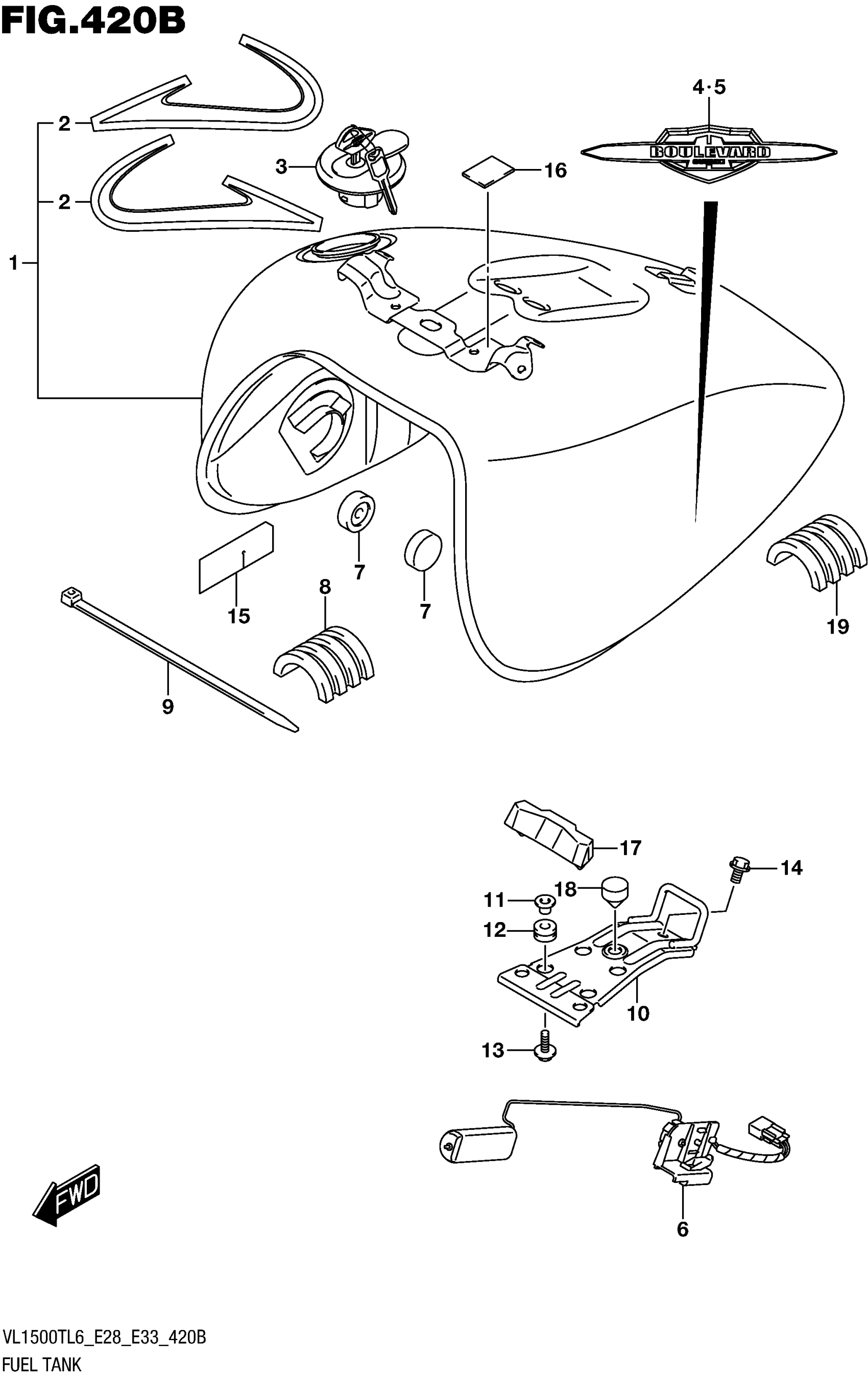

Suzuki VL1500TL6 (2016) FUEL TANK (VL1500TL6 E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

44100-06J70-YVB

Unavailable

2

.TAPE SET FUEL TANK

68110-06JA0-BBN

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-41840.

44200-41842

$124.15

4

EMBLEM, RH

68111-06J00

$76.95

5

EMBLEM, LH

68121-06J00

$76.95

6

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

$109.73

7

CUSHION This part replaces 09329-10007.

09329-10026

$1.91

8

CUSHION, TANK SIDE

44541-04F00

Unavailable

9

CLAMP (L:300)

09407-30402

$3.76

10

BRACKET, REAR

44530-06J00

$42.58

11

WASHER

09169-06062

$2.50

12

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

13

BOLT (6X20)

09116-06192

$2.44

14

BOLT (8X12)

01550-0812A

$2.31

15

PROTECTOR

44283-06J00

$6.90

16

CUSHION

63191-25C00

$2.88

17

CUSHION

44545-06J00

Unavailable

18

CUSHION

09321-10011

$2.80

19

CUSHION, TANK SIDE REAR

44541-06J00

Unavailable
