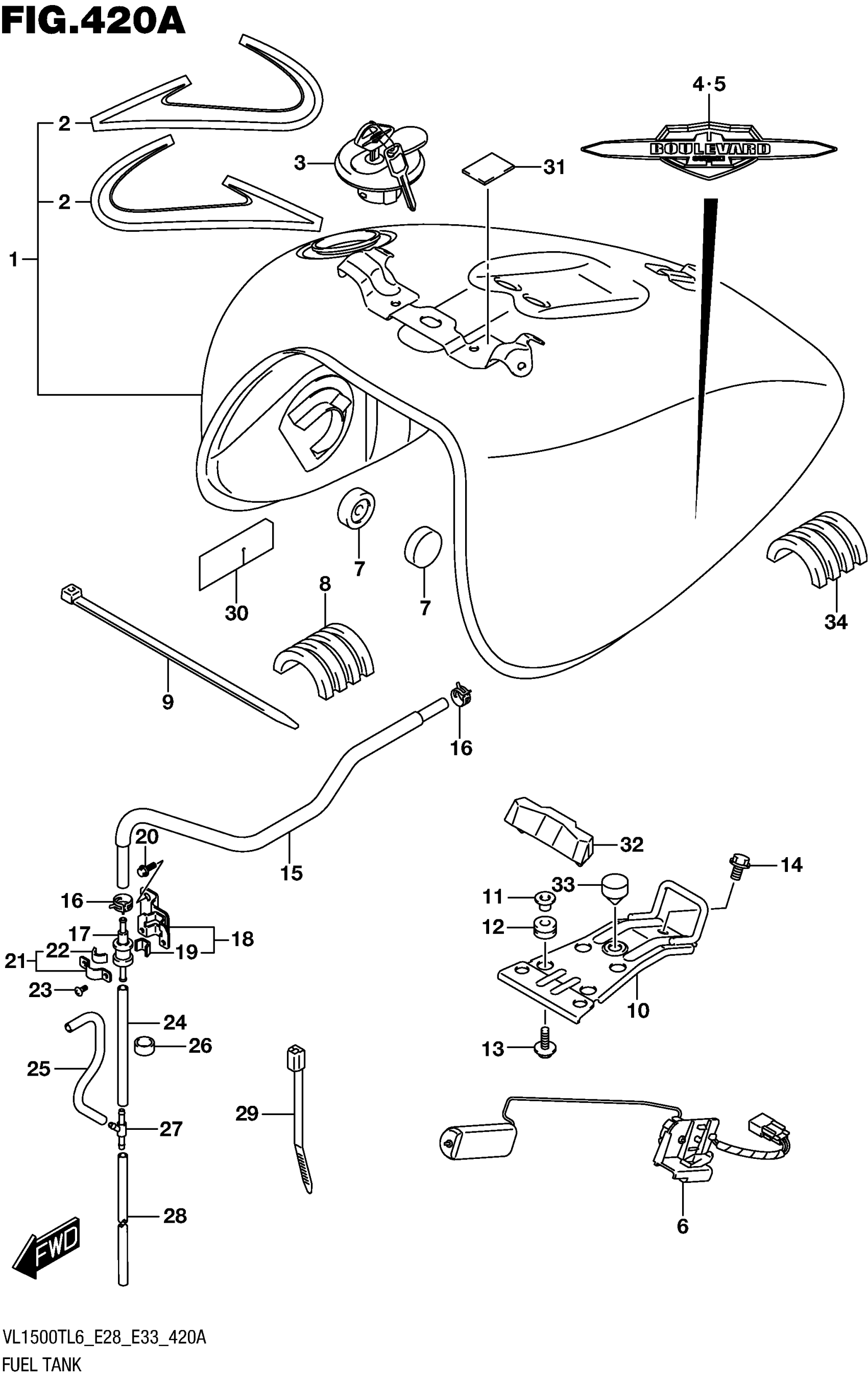

Suzuki VL1500TL6 (2016) FUEL TANK (VL1500TL6 E28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

44100-06J70-YVB

Unavailable

2

.TAPE SET FUEL TANK

68110-06JA0-BBN

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-41840.

44200-41842

$124.15

4

EMBLEM, RH

68111-06J00

$76.95

5

EMBLEM, LH

68121-06J00

$76.95

6

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

$109.73

7

CUSHION This part replaces 09329-10007.

09329-10026

$1.91

8

CUSHION, TANK SIDE

44541-04F00

Unavailable

9

CLAMP (L:300)

09407-30402

$3.76

10

BRACKET, REAR

44530-06J00

$42.58

11

WASHER

09169-06062

$2.50

12

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

13

BOLT (6X20)

09116-06192

$2.44

14

BOLT (8X12)

01550-0812A

$2.31

15

HOSE, TANK & VALVE

44434-40H00

Unavailable

16

CLIP

09401-11413

$2.24

17

VALVE, BREATHER

44240-38A00

$69.02

18

BRACKET, BREATHER VALVE

44880-40H00

Unavailable

19

CUSHION (10X30X2)

44894-24A00

$1.78

20

BOLT

01547-0610A

$1.47

21

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$5.10

22

CUSHION (10X30X2)

44894-24A00

$1.78

23

SCREW

02142-0408A

$1.68

24

.HOSE | L:600->100 This part replaces 09352-50903-600.

09352-50006-600

$6.75

25

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$15.48

26

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

27

3 WAY

09367-06007

$3.17

28

HOSE,5X10X600 | L:600->250 This part replaces 09352-50823-600.

44421-13ER0

$9.08

29

CLAMP (L:190)

09407-19401

$3.32

30

PROTECTOR

44283-06J00

$6.90

31

CUSHION

63191-25C00

$2.88

32

CUSHION

44545-06J00

Unavailable

33

CUSHION

09321-10011

$2.80

34

CUSHION, TANK SIDE REAR

44541-06J00

Unavailable
