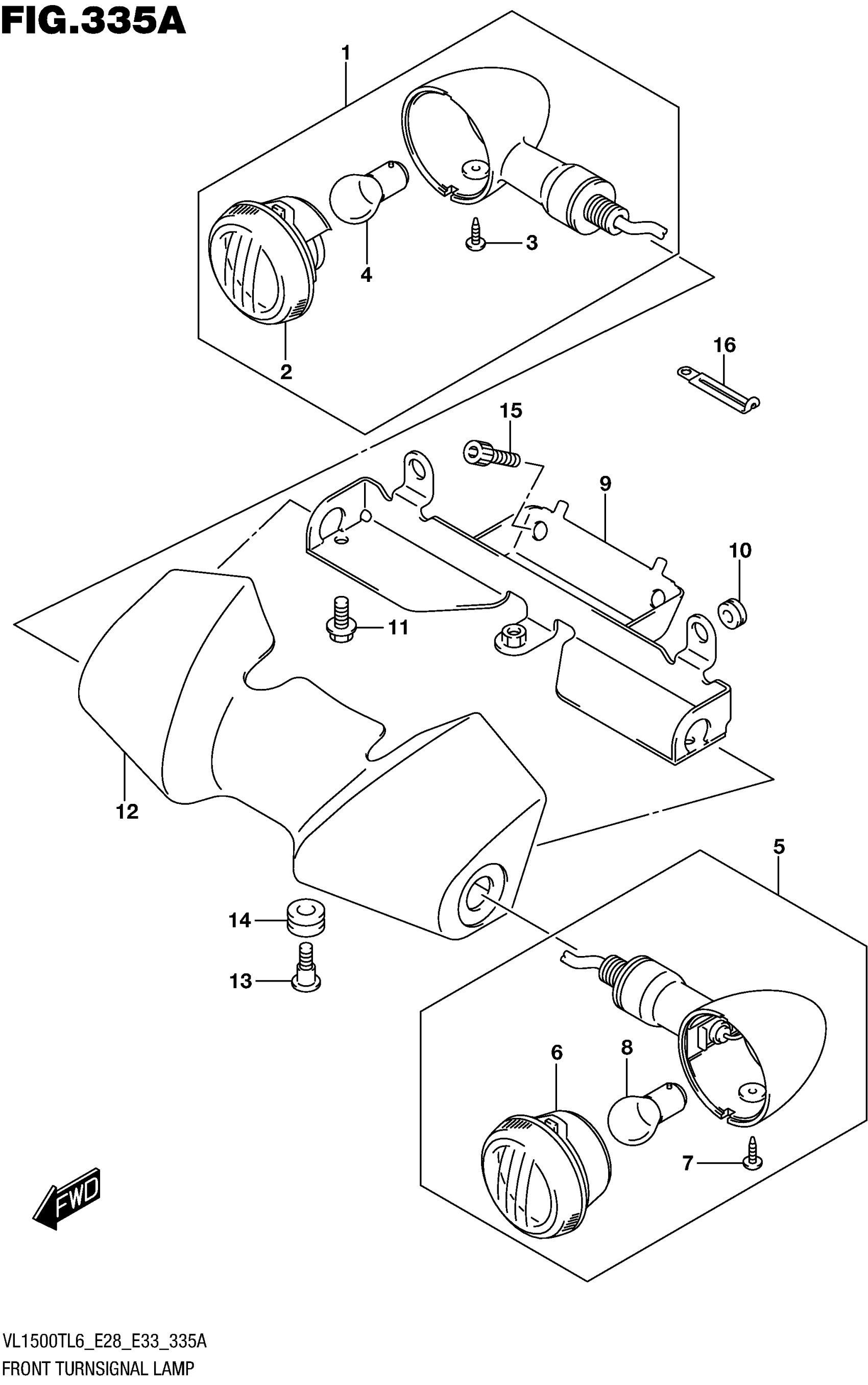

Suzuki VL1500TL6 (2016) FRONT TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-38AA0

$133.48

2

.LENS

35610-38AE1

$31.91

3

.SCREW (4X10)

35623-38AA0

$5.11

4

.BULB (12V,21W)

09471-12045

$3.27

5

LAMP ASSY, FRONT TURNSIGNAL L

35602-38AA0

$140.20

6

.LENS

35630-38AE1

$31.91

7

.SCREW (4X10)

35623-38AA0

$5.11

8

.BULB (12V,21W)

09471-12045

$3.27

9

BRACKET

35620-06J00

$58.62

10

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

11

BOLT (6X8)

09103-06275

$2.07

12

COVER, FRONT TURNSIGNAL

35641-06J00

$201.00

13

SCREW (6X16)

09139-06146

$2.95

14

CUSHION

09320-09016

$1.97

15

BOLT

07130-0816B

$4.25

16

CLAMP (L:45)

09404-06429

$1.83
