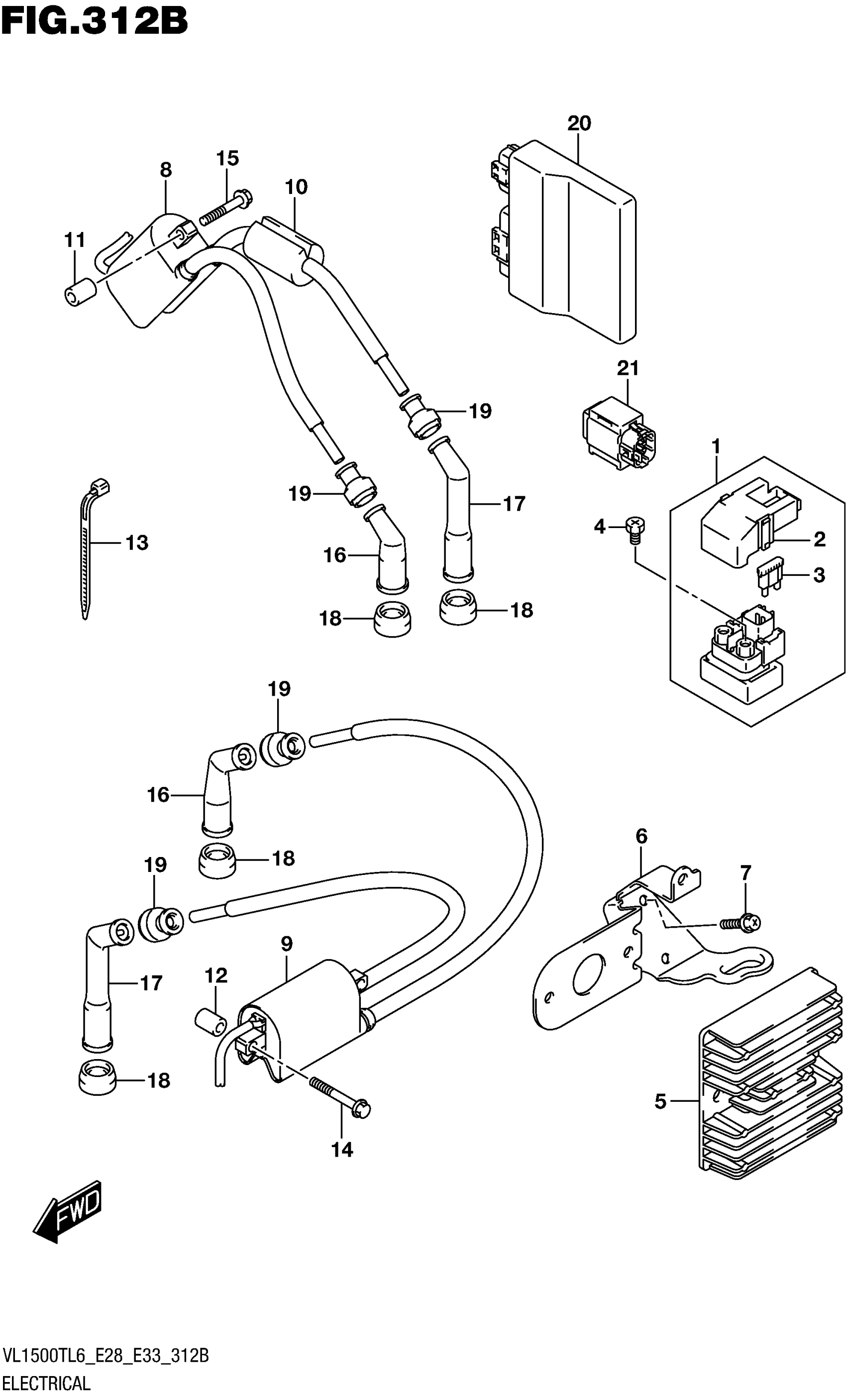

Suzuki VL1500TL6 (2016) ELECTRICAL (VL1500TL6 E33) Diagram

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

$67.32

.COVER

31861-47E00

$16.15

.FUSE (30A)

09481-30101

$2.26

SCREW (6X8)

09128-06013

$1.49

RECTIFIER ASSY

32800-10G30

$326.67

BRACKET

32830-40H10

Unavailable

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

$106.57

COIL ASSY, IGNITION FRONT

33420-40H11

$125.47

CUSHION, HIGH TENSION CORD

33442-41F00

Unavailable

SPACER (6.4X10X22) | REAR

09180-06178

$4.50

SPACER (6.2X12X16) | FRONT

09180-06198

$4.32

CLAMP (L:165)

09407-18402

$2.19

BOLT | FRONT

01547-0635A

$2.30

BOLT | REAR

01547-0640A

$2.32

CAP ASSY, SPARK PLUG (SIDE)

33510-38B00

$31.72

CAP ASSY, SPARK PLUG (CENTER)

33510-45010

$24.99

SEAL, SPARK PLUG

33541-47D00

$7.83

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

CONTROL UNIT, FI

32920-06J70

Unavailable

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92
