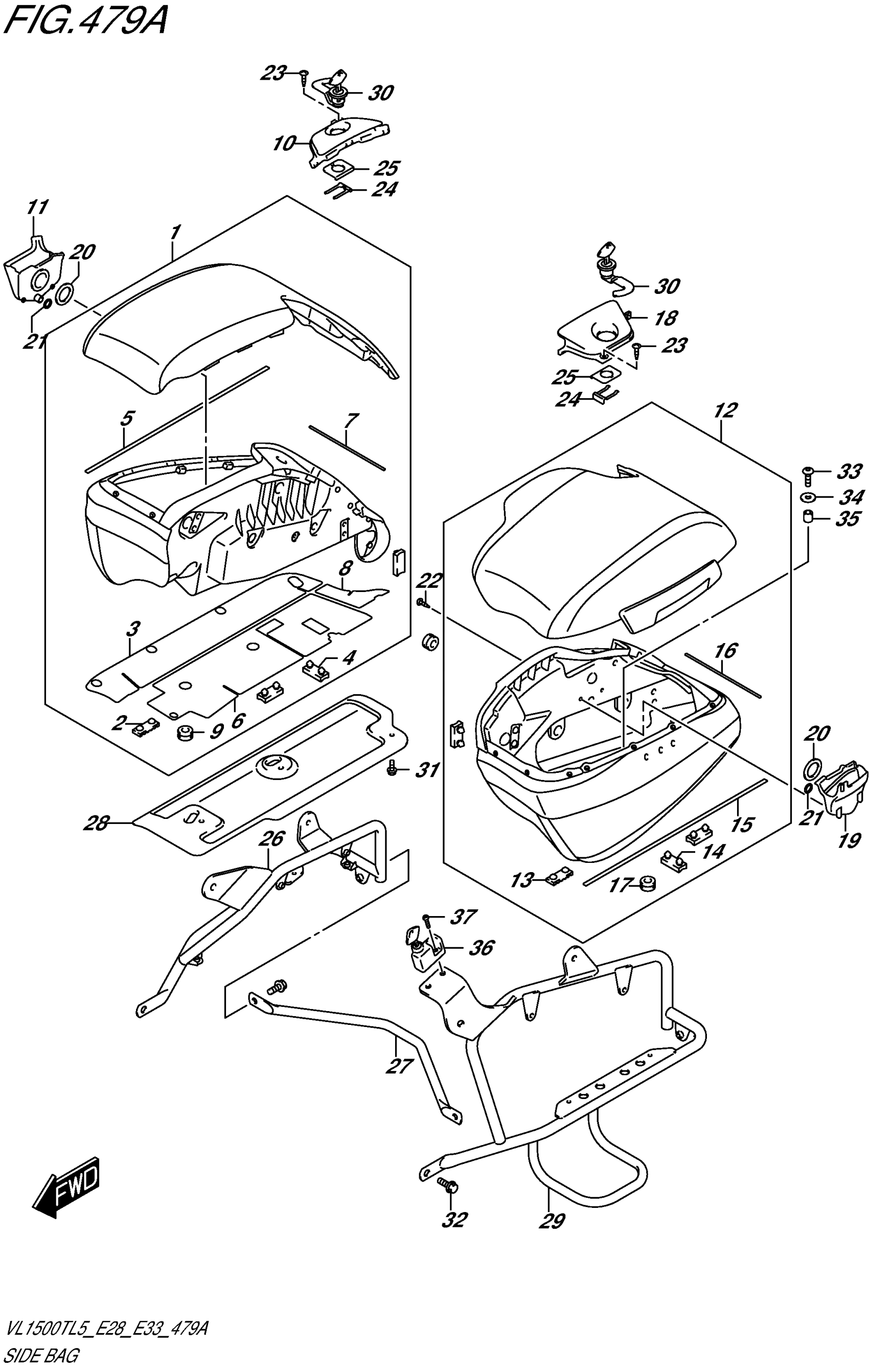

Suzuki VL1500TL5 (2015) SIDE BAG Diagram

#

Description
Price

1

BAG ASSY This part replaces 95400-06J50.

95400-06J51

$2,006.47

2

CUSHION, BRACE

45149-12C00

$6.63

3

SHIELD, HEAT NO.1

95413-06J00

$12.87

4

CUSHION, BRACE NO.2

95424-06J00

Unavailable

5

CUSHION, UPPER

95439-06J00

$5.22

6

SHIELD, HEAT NO.2

95513-06J00

$15.93

7

CUSHION, LOWER

95536-06J00

$3.08

8

SHIELD, HEAT NO.3

95613-06J00

Unavailable

9

CUSHION

09320-11008

$2.60

10

COVER, KEY CYLINDER RH

95418-06J00

$32.74

11

TRAY, SIDE BAG RH

95419-06J00

$14.62

12

BAG ASSY,SIDE,L This part replaces 95500-06J40.

95500-06J42

$1,946.07

13

CUSHION, BRACE

45149-12C00

$6.63

14

CUSHION, BRACE NO.2

95424-06J00

Unavailable

15

CUSHION, UPPER

95439-06J00

$5.22

16

CUSHION, LOWER

95536-06J00

$3.08

17

CUSHION

09320-11008

$2.60

18

COVER, KEY CYLINDER LH

95518-06J00

$12.87

19

TRAY, SIDE BAG LH

95519-06J00

Unavailable

20

CUSHION, TRAY

95533-06J00

Unavailable

21

O RING, OIL GALLERY This part replaces 09280-12002.

09280-12012

$4.64

22

SCREW

03541-0516A

$1.49

23

SCREW

03541-0520B

$2.63

24

SPRING, SIDE BAG LOCK

45289-11F00

$6.20

25

PLATE, SIDE BAG LOCK

95425-06J00

Unavailable

26

BRACE, SIDE BAG RH

95470-06J00

Unavailable

27

BRACE, SIDE BAG CENTER

95481-06J00

$71.74

28

PLATE, HEAT SHIELD

95482-06J00

$69.87

29

BRACE, SIDE BAG LH

95570-06J00

$253.50

30

LOCK SET, SIDE BAG

95700-06810

$102.20

31

BOLT

01550-0612A

$1.97

32

BOLT

01550-0816B

$2.73

33

BOLT (6X25)

09139-06196

$2.28

34

WASHER (6.5X20X1.6)

09160-06154

$1.98

35

SPACER (6.5X11.5X12)

09180-06120

$2.32

36

LOCK SET HELMET

95700-41821

$152.77

37

SCREW (6X20)

09139-06048

$2.14
