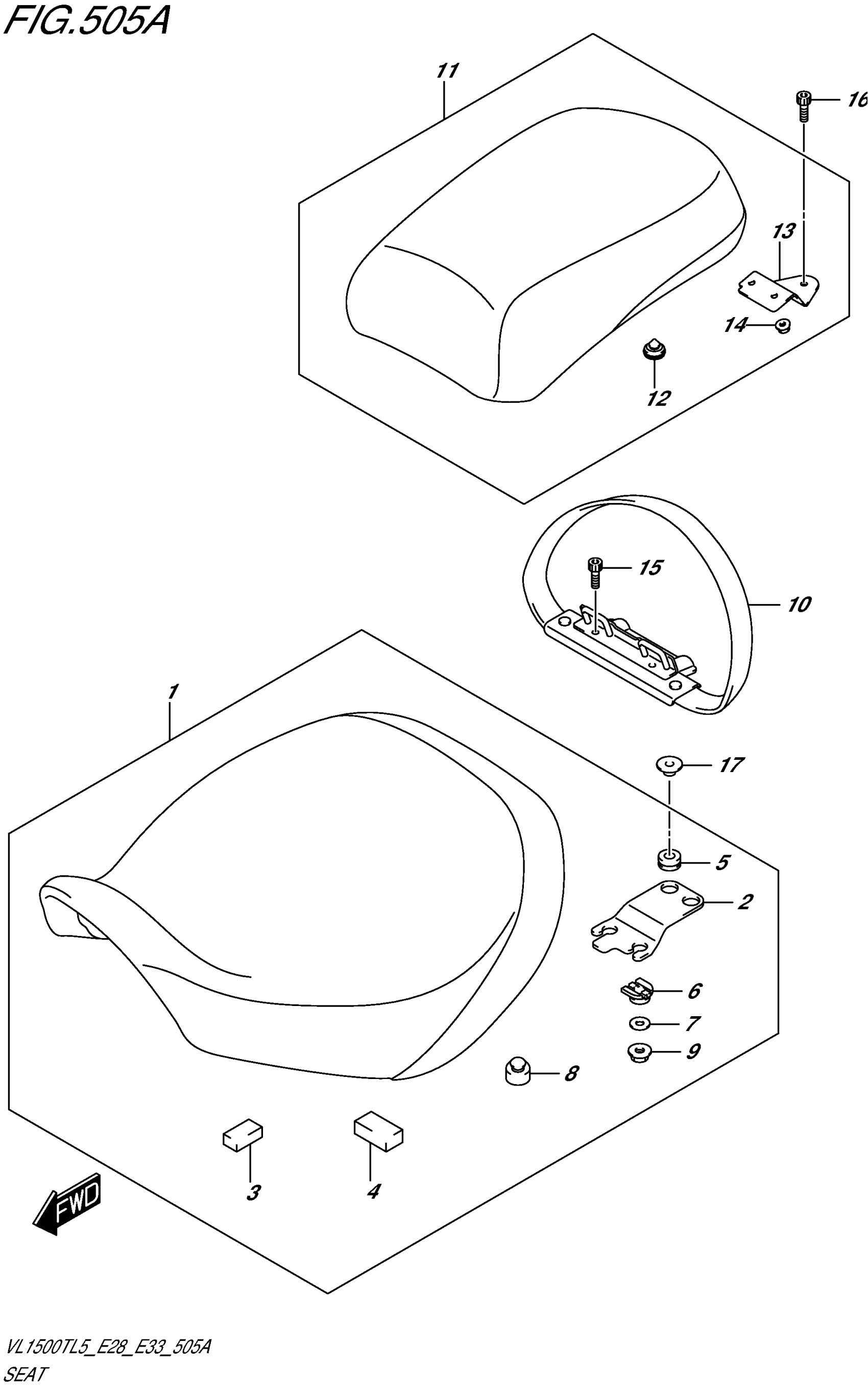

Find the part on the Seat diagram for your 2015 Suzuki VL1500TL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki VL1500TL5 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY This part replaces 45100-06J00-V4Y.

45100-06J01-V4Y

1
Out of stock

2

BRACKET, SEAT

45115-06J00

1
Out of stock

3

CUSHION

45148-40H00

1
Out of stock

4

CUSHION

45149-40H00

1
Out of stock

5

CUSHION

45149-06J00

2
Out of stock

6

CUSHION This part replaces 45215-06B00.

45215-06B01

2
Out of stock

7

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

8

CUSHION

09321-10011

10
Out of stock

9

NUT

08319-3106A

2
Out of stock

10

BAND,SEAT This part replaces 45180-06J00-V4Y.

45180-06J01-V4Y

1
Out of stock

11

SEAT ASSY,PILLI This part replaces 45300-06J00-V4Y.

45300-06J01-V4Y

1
Out of stock

12

CUSHION (11.5X22X20)

09321-10002

4
Out of stock

13

BRACKET

45315-06J00

1
Out of stock

14

NUT

08316-1006A

2
Out of stock

15

BOLT (6X18)

09106-06064

2
Out of stock

16

BOLT (8X16)

09106-08140

1
Out of stock

17

SPACER

09169-06077

2
Out of stock
