2015 Suzuki VL1500TL5 Frame Cover Diagram

← All diagrams

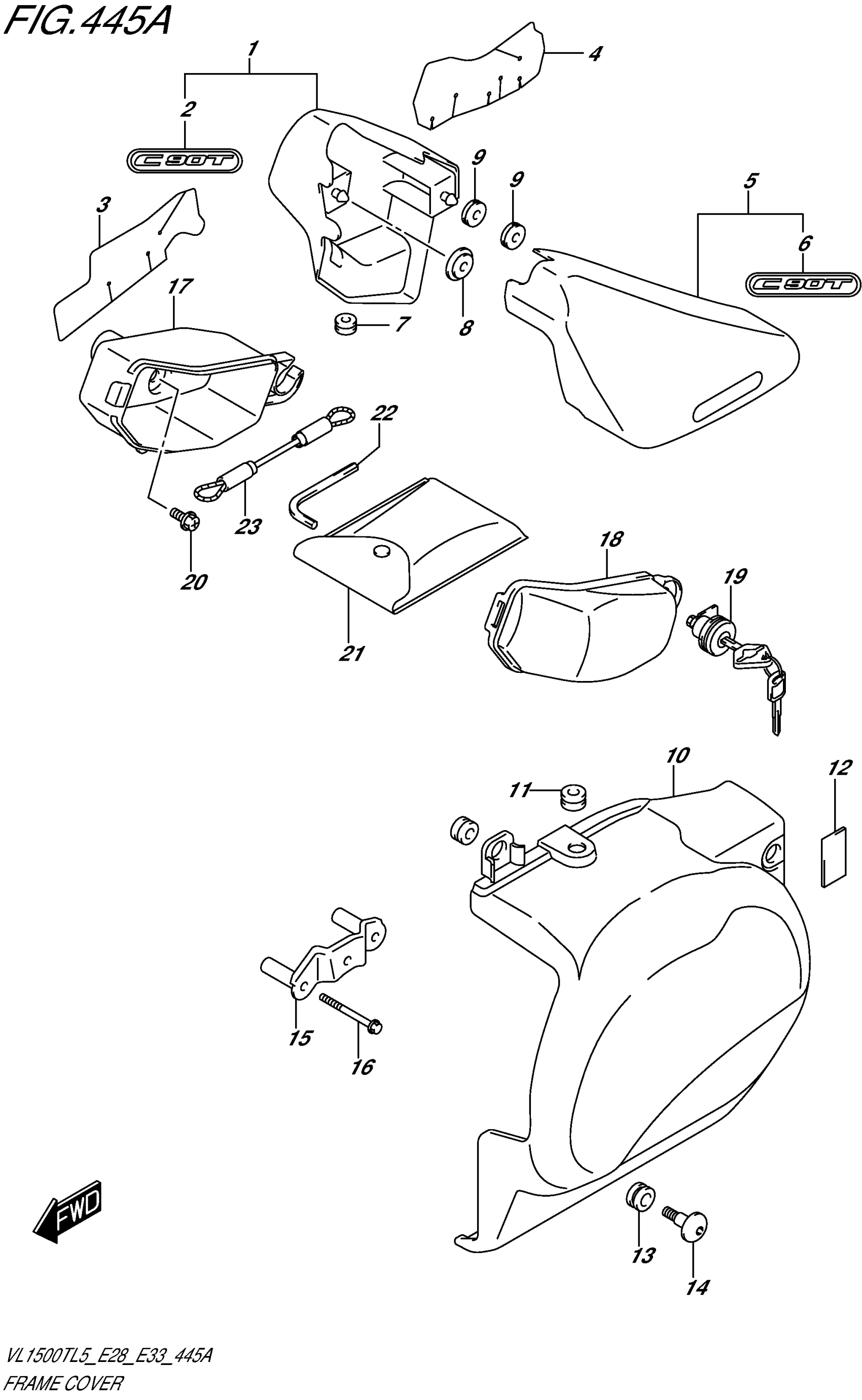

Find the part on the Frame Cover diagram for your 2015 Suzuki VL1500TL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki VL1500TL5 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE RH (BLACK)

47110-06J21-YVB

1
Out of stock

2

EMBLEM, "C90T"

68131-10FB1

1
Out of stock

3

SHIELD, SIDE COVER RH

47166-06J10

—
Out of stock

4

SHIELD, SIDE COVER RH

47166-06J20

1
Out of stock

5

COVER, SIDE LH (BLACK)

47210-06J21-YVB

1
Out of stock

6

EMBLEM, "C90T"

68131-10FB1

1
Out of stock

7

CUSHION, SIDE COVER LOWER RH

47167-06J00

1
Out of stock

8

CUSHION, SIDE COVER FRONT

47191-06J00

2
Out of stock

9

CUSHION | REAR

09320-08018

2
Out of stock

10

COVER, LOWER LH

47231-40H00

1
Out of stock

11

CUSHION | LH

09320-06504

1
Out of stock

12

CUSHION | LH

51827-01A00

1
Out of stock

13

CUSHION | LH

09320-09016

3
Out of stock

14

BOLT (6X20) | LH

09139-06190

3
Out of stock

15

BRACKET, LOWER COVER LH

47250-06J00

1
Out of stock

16

BOLT

01547-0650A

2
Out of stock

17

BODY, LUGGAGE BOX

92211-06J00

1
Out of stock

18

LID

92212-06J00

1
Out of stock

19

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

1
Out of stock

20

BOLT (6X12)

09111-06107

3
Out of stock

21

TOOL ASSY This part replaces 09800-21056.

09800-21100

1
Out of stock

22

SPANNER, 6 HEXAGON

09816-00050

1
Out of stock

23

CABLE,HELMET LO This part replaces 95740-06G00.

95740-06G01

1
Out of stock
