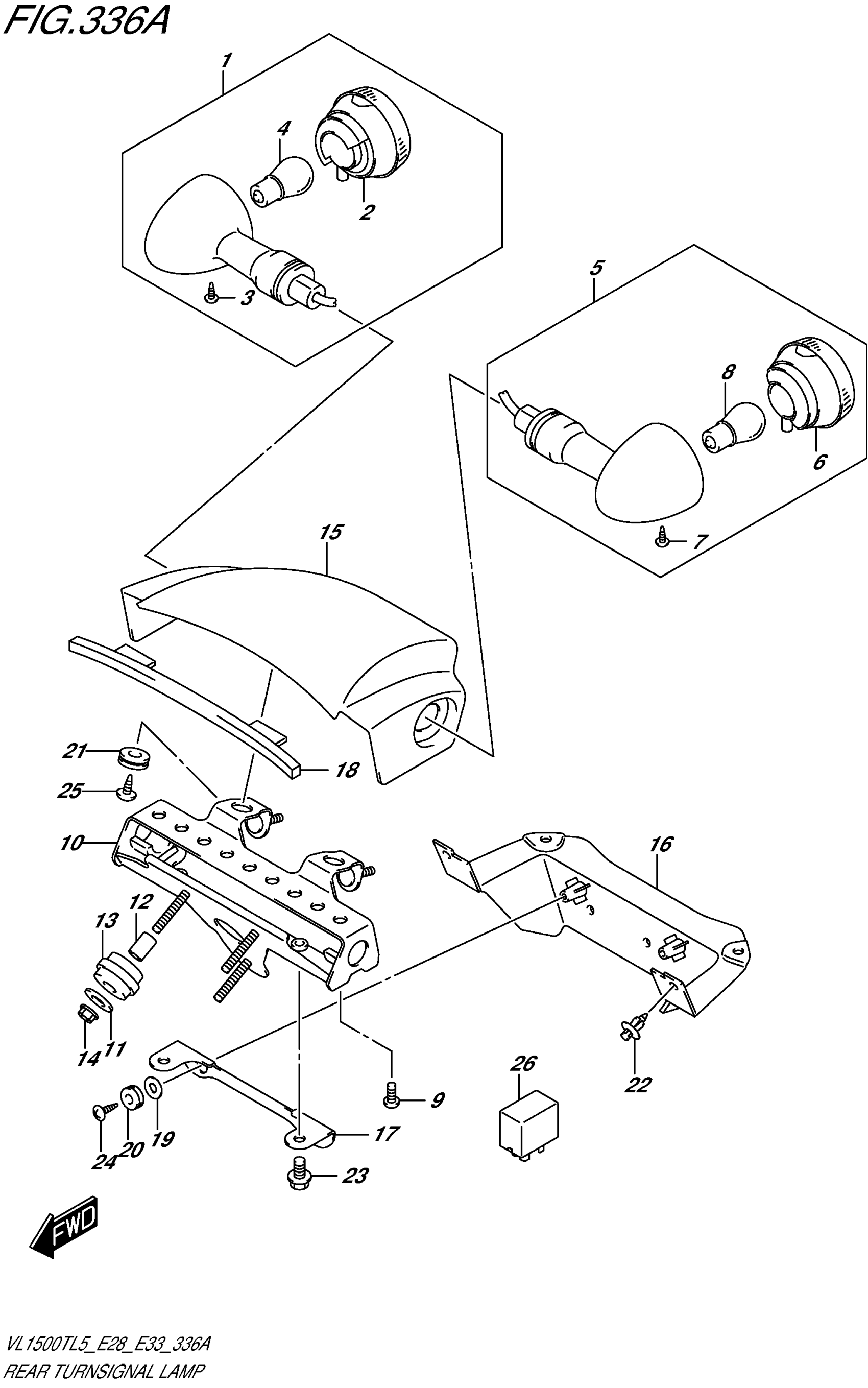

Suzuki VL1500TL5 (2015) REAR TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR TURNSIGNAL RH

35603-38AH0

$140.17

2

LENS

35610-38AH0

$39.00

3

SCREW (4X10)

35623-38AA0

$5.11

4

BULB (12V,21W)

09471-12045

$3.27

5

LAMP ASSY, REAR TURNSIGNAL LH

35604-38AH0

$134.90

6

LENS

35630-38AH0

$39.00

7

SCREW (4X10)

35623-38AA0

$5.11

8

BULB (12V,21W)

09471-12045

$3.27

9

BOLT (6X14)

09103-06507

$4.32

10

BRACKET, REAR TURNSIGNAL

35620-43H01

$53.98

11

WASHER (6.5X20X1.2)

09160-06077

$1.91

12

SPACER (6.4X10X18)

09180-06195

$3.68

13

CUSHION

09320-10504

$5.78

14

NUT

08316-1006A

$2.19

15

COVER, REAR TURNSIGNAL UPPER

35621-06J00

$120.81

16

COVER, REAR TURNSIGNAL LOWER

35622-06J00

$42.77

17

BRACKET, REAR TURNSIGNAL COVER

35623-43H00

$10.58

18

GASKET, REAR TURNSIGNAL COVER

35657-06J00

Unavailable

19

WASHER (4.3X14X0.8)

09160-04022

$2.15

20

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

21

CUSHION (8.4X18X6)

09320-08066

$8.24

22

CLIP (BLACK)

09409-06314-5PK

$2.78

23

BOLT

01550-0612A

$1.97

24

SCREW

03541-0412A

$1.49

25

SCREW

03541-0510A

$1.49

26

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
