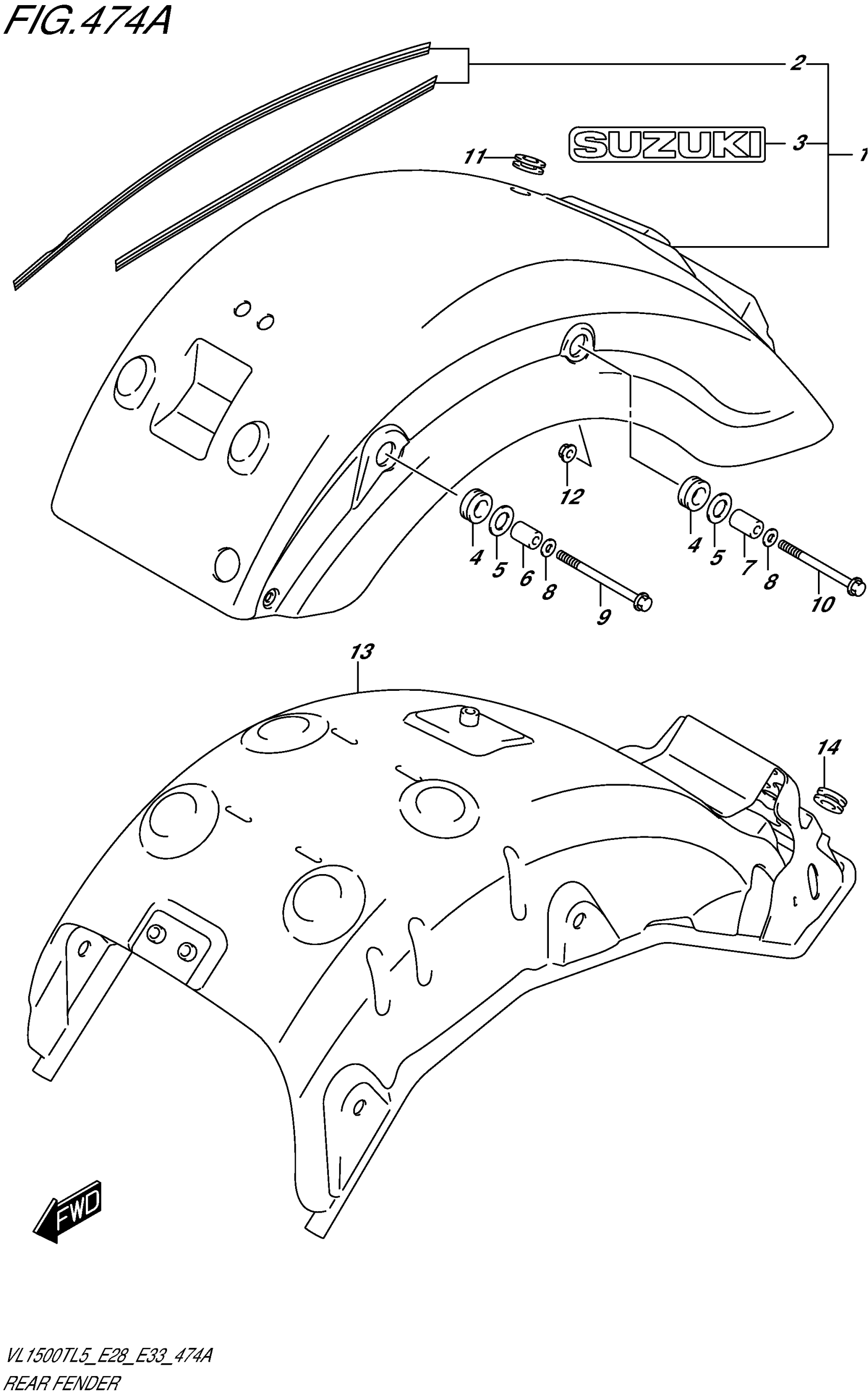

Suzuki VL1500TL5 (2015) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (BLACK/GRAY)

63110-06J10-AK7

$1,407.53

2

TAPE SET, REAR FENDER

68170-06J00-A8J

Unavailable

3

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

4

CUSHION

47191-24F00

$5.17

5

WASHER (15.5X26X2.3)

09160-15002

$1.91

6

SPACER, FRONT

95428-06J00

$7.70

7

SPACER, REAR

95429-06J00

$7.70

8

SPACER (8.2X12X6)

09180-08047

$2.35

9

BOLT | FRONT

01550-0895A

$4.60

10

BOLT | REAR

01550-0885A

$4.17

11

CUSHION

09320-15008

$3.89

12

NUT

08316-1008A

$2.45

13

REINFORCE, REAR FENDER

63130-06J01

$311.72

14

GROMMET

09308-10017

$5.20
