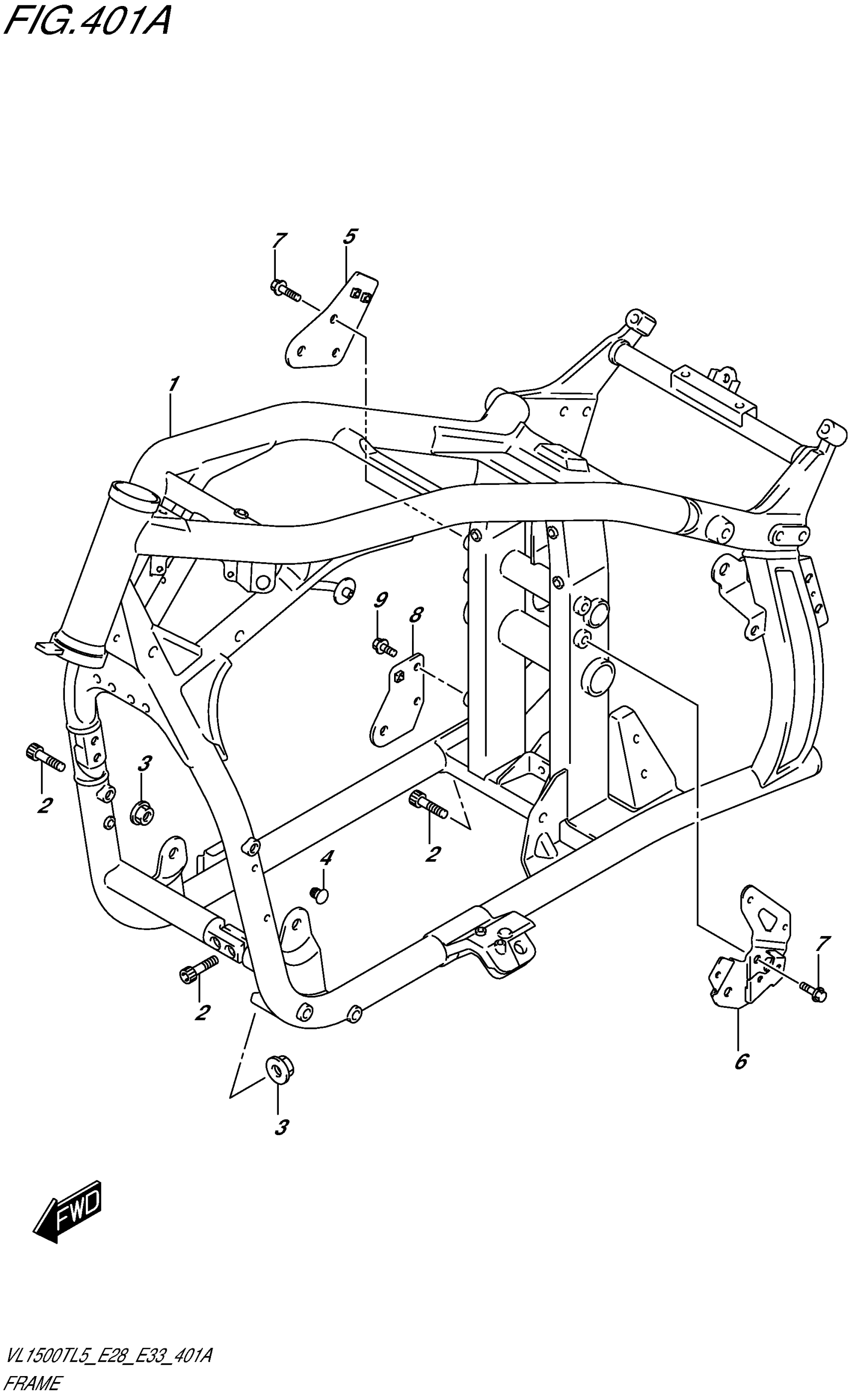

Suzuki VL1500TL5 (2015) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-40H20-019

Unavailable

2

BOLT

07130-1035B

$5.18

3

NUT

08319-3110A

$2.73

4

CAP This part replaces 09250-09001.

09250-09008

$1.54

5

PLATE, ENGINE MOUNTING REAR RH

41931-06J00

Unavailable

6

PLATE, ENGINE MOUNTING REAR LH

41940-06J00

Unavailable

7

BOLT

01550-0820A

$2.23

8

PLATE, ENGINE MOUNTING REAR LOWER RH

41951-40H00

Unavailable

9

BOLT

01550-0820A

$2.23
