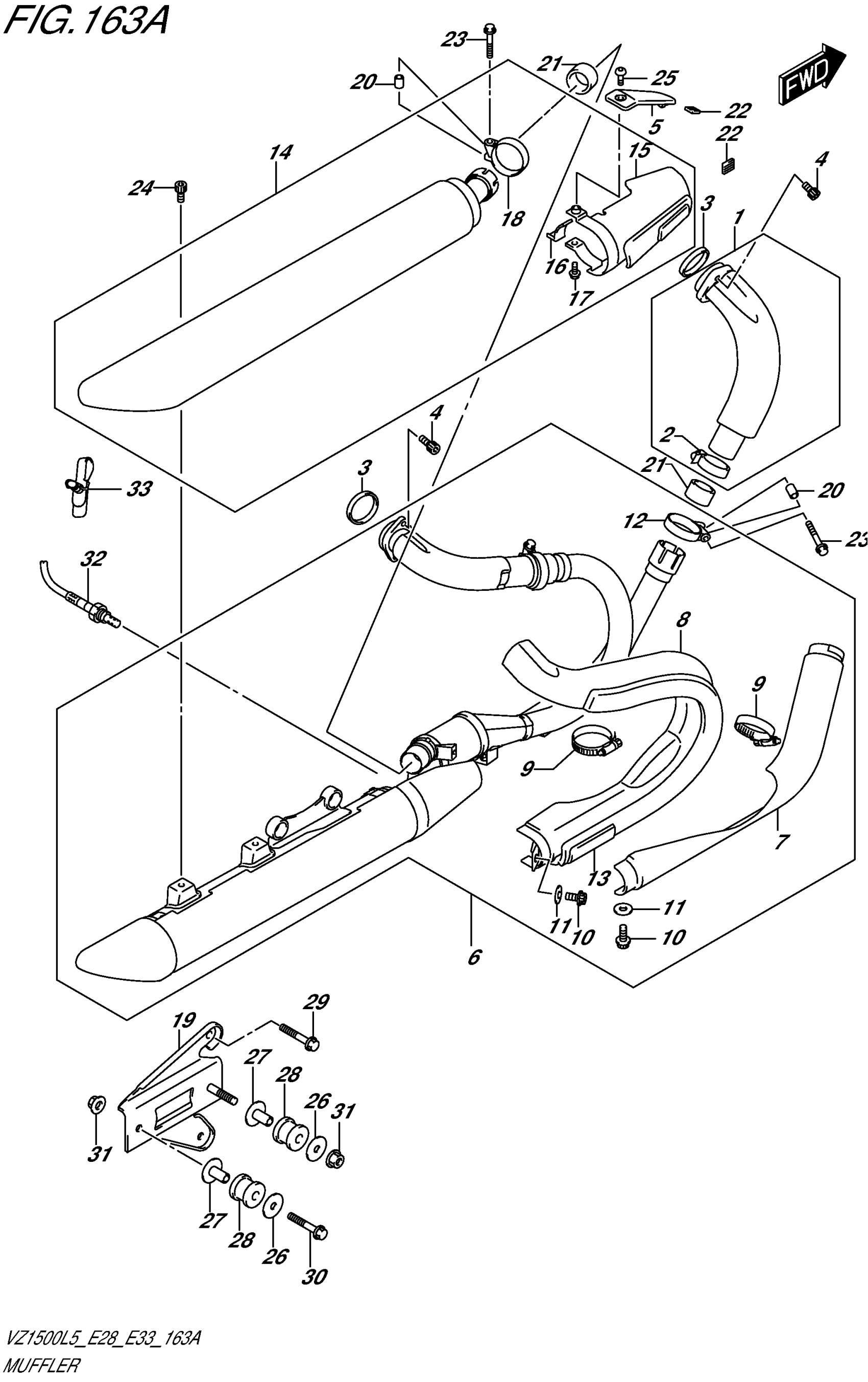

Suzuki VL1500L5 (2015) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST FR

14150-40H00

Unavailable

2

CLAMP

09402-45503

Unavailable

3

GASKET, EXHAUST PIPE

14181-31D00

$10.28

4

BOLT (8X25)

09106-08165

$4.03

5

COVER, MUF REAR UPPER

14260-40H00

$137.02

6

MUFFLER, FR

14305-40H20-H01

Unavailable

7

COVER, EXHAUST FR

14170-40H00

Unavailable

8

COVER, EXHAUST RR

14180-40H00

Unavailable

9

CLAMP

09402-45504

Unavailable

10

BOLT

14451-40H00

Unavailable

11

SPACER

14176-40H00

Unavailable

12

CLAMP, CONNECTOR

14459-40H00

$29.97

13

PROTECTOR, FRONT

14780-48G01

$37.48

14

BODY, MUFFLER RR

14340-40H20-H01

Unavailable

15

COVER, MUFFLER

14398-40H00

Unavailable

16

CLAMP

14399-40H00

Unavailable

17

BOLT

14451-40H00

Unavailable

18

CLAMP, CONNECTOR

14459-40H00

$29.97

19

BRACKET

14410-40H00

Unavailable

20

SPACER

14458-45G10

$8.18

21

CONNECTOR

14771-40H00

$36.55

22

GROMMET

14795-10FA0

$5.58

23

BOLT (8X35)

09103-08365

$3.91

24

BOLT (8X20)

09106-08107

$2.81

25

SCREW (6X10)

09139-06172

$3.04

26

WASHER (8.5X33X1.5)

09160-08146

$2.60

27

SPACER (8.6X12X27.1)

09180-08156

$6.70

28

CUSHION

09320-12049

$10.68

29

BOLT (8X16)

01550-0816A

$2.32

30

BOLT

01550-0845A

$3.14

31

NUT

08361-2508A

$1.97

32

SENSOR, OXYGEN

18213-48G00

Unavailable

33

CLAMP (L:88)

09407-05403

$2.38
