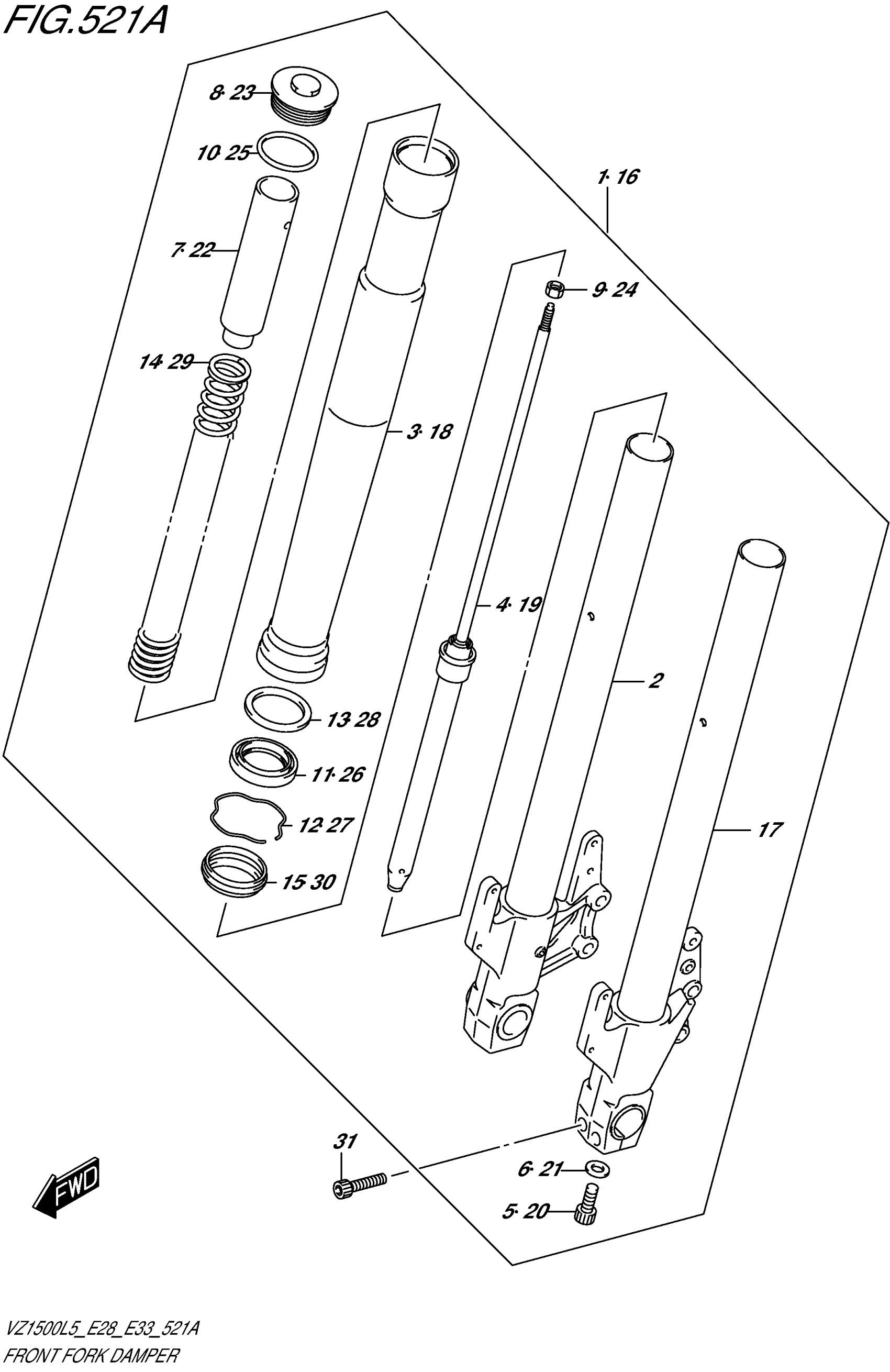

Suzuki VL1500L5 (2015) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-40H00

Unavailable

2

TUBE, INNER RH

51110-40H00

Unavailable

3

TUBE, OUTER

51130-40H00

Unavailable

4

CYLINDER

51146-40H00

Unavailable

5

BOLT

51147-05H00

$5.40

6

GASKET

51148-41310

$2.26

7

SPACER, SPRING

51176-21H00

$27.40

8

CAP

51351-40H00

Unavailable

9

.NUT, ROD

51352-13A60

$3.03

10

..O RING

62278-14100

$4.03

11

SEAL, OIL

51153-41G00

$25.17

12

RING, STOPPER

51156-14200

$5.05

13

WASHER

51158-14200

$5.05

14

SPRING

51171-40H00

Unavailable

15

SEAL, DUST

51173-41G00

$26.58

16

DAMPER ASSY, FRONT FORK LH

51104-40H00

Unavailable

17

TUBE, INNER LH

51120-40H00

Unavailable

18

TUBE, OUTER

51130-40H00

Unavailable

19

CYLINDER

51146-40H00

Unavailable

20

BOLT

51147-05H00

$5.40

21

GASKET

51148-41310

$2.26

22

SPACER, SPRING

51176-21H00

$27.40

23

CAP

51351-40H00

Unavailable

24

.NUT, ROD

51352-13A60

$3.03

25

..O RING

62278-14100

$4.03

26

SEAL, OIL

51153-41G00

$25.17

27

RING, STOPPER

51156-14200

$5.05

28

WASHER

51158-14200

$5.05

29

SPRING

51171-40H00

Unavailable

30

SEAL, DUST

51173-41G00

$26.58

31

BOLT

51328-31F30

Unavailable
