2015 Suzuki VL1500L5 Front Caliper Diagram

← All diagrams

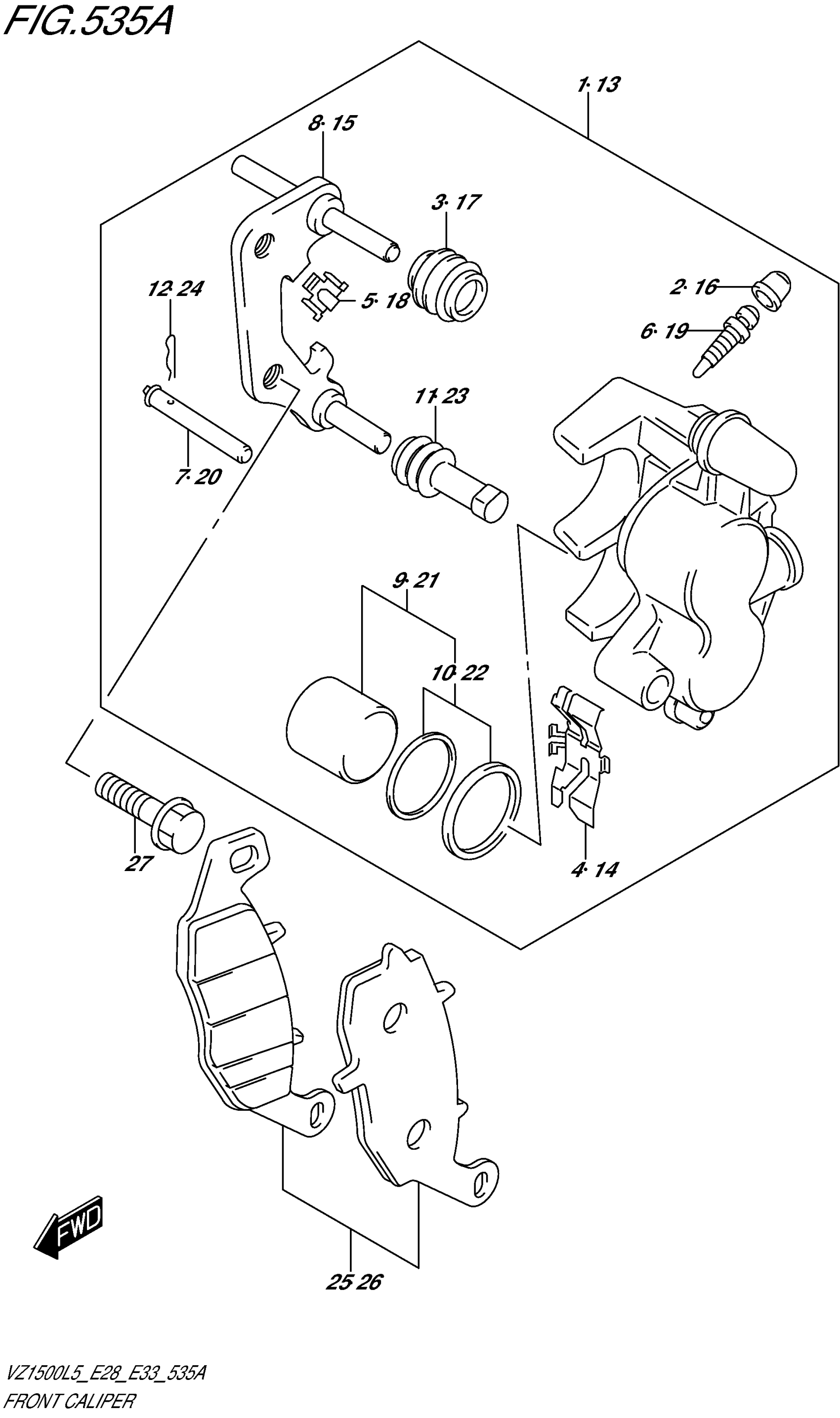

Find the part on the Front Caliper diagram for your 2015 Suzuki VL1500L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki VL1500L5 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT RH

59100-33DH1-999

1
Out of stock

2

CAP, BLEEDER PLUG

55156-66310

1
Out of stock

3

BOOT, AXLE

59112-44B00

1
Out of stock

4

.SPRING, PAD RH

59115-33D00

1
Out of stock

5

.GUIDE, PAD

59116-33D00

1
Out of stock

6

BLEEDER

59121-18410

1
Out of stock

7

.PIN, PAD

59141-44B01

1
Out of stock

8

.CARRIER, CALIPER RH

59150-33D01

1
Out of stock

9

PISTON SET

59301-20820

1
Out of stock

10

SEAL SET, PISTON

59300-33841

1
Out of stock

11

.INSULATOR, AXLE

59313-36500

1
Out of stock

12

.CLIP, PAD PIN

69142-45000

1
Out of stock

13

CALIPER ASSY, FRONT LH

59300-33DH1-999

1
Out of stock

14

.SPRING, PAD LH

59315-33D00

1
Out of stock

15

.CARRIER, CALIPER LH

59350-33D01

1
Out of stock

16

CAP, BLEEDER PLUG

55156-66310

1
Out of stock

17

BOOT, AXLE

59112-44B00

1
Out of stock

18

.GUIDE, PAD

59116-33D00

1
Out of stock

19

BLEEDER

59121-18410

1
Out of stock

20

.PIN, PAD

59141-44B01

1
Out of stock

21

PISTON SET

59301-20820

1
Out of stock

22

SEAL SET, PISTON

59300-33841

1
Out of stock

23

.INSULATOR, AXLE

59313-36500

1
Out of stock

24

.CLIP, PAD PIN

69142-45000

1
Out of stock

25

PAD SET RH

59101-33880

1
Out of stock

26

PAD SET LH

59302-33890

1
Out of stock

27

BOLT (10X30)

09103-10379

4
Out of stock
